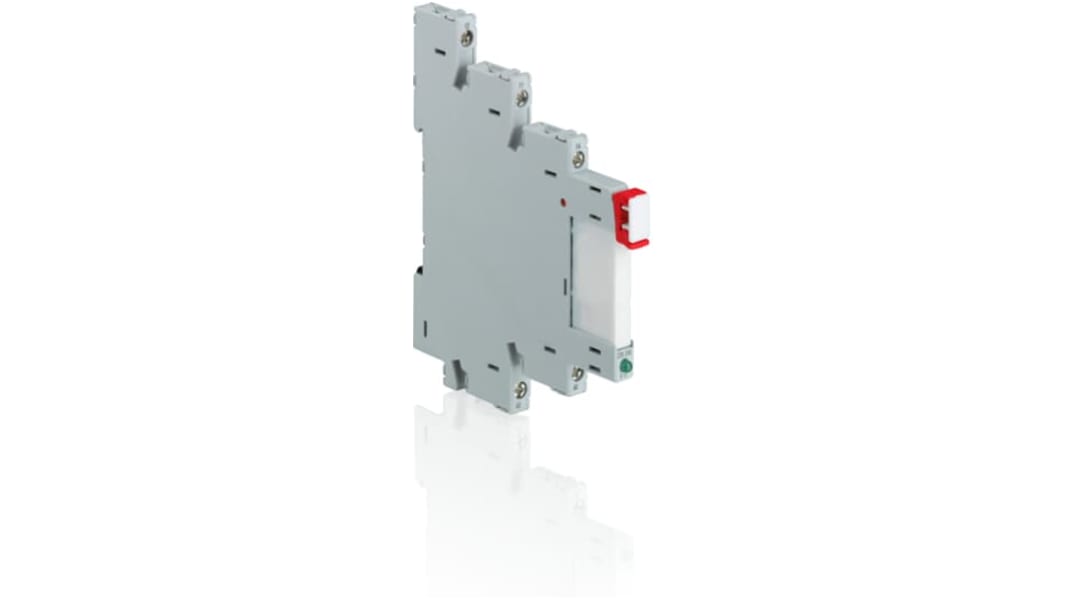

ABB CRS Series Interface Relay, DIN Rail, 24 V ac/dc Coil, SPDT, 6 A

RS Stock No.:: 231-9474
Mfr. Part No.:: 1SVR405541R3110 CR-S024VADC1CRS
Manufacturer:: ABB

ABB CRS Series Interface Relay, DIN Rail, 24 V ac/dc Coil, SPDT, 6 A

View this category

Subtotal (1 unit)*

PHP1,480.70

(exc. VAT)

PHP1,658.38

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

Plus 8 unit(s) shipping from March 23, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP1,480.70

*price indicative

RS Stock No.:: 231-9474
Mfr. Part No.:: 1SVR405541R3110 CR-S024VADC1CRS
Manufacturer:: ABB

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Interface Relay
	Coil Voltage	24 V ac/dc
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Series	CRS
	Terminal Type	Screw
	Switching Current	6 A
	Switching AC Voltage	250 V ac
	Coil Current	6 A
	Minimum Operating Temperature	-40°C
	Switching DC Voltage	24 V ac/dc
	Maximum Operating Temperature	70°C
	Standards/Approvals	CE, CSA, cURus
	Height	76.4mm
	Width	88.5 mm
	Length	6.3mm

	Select all
	Brand ABB
	Product Type Interface Relay
	Coil Voltage 24 V ac/dc
	Contact Configuration SPDT
	Mount Type DIN Rail
	Series CRS
	Terminal Type Screw
	Switching Current 6 A
	Switching AC Voltage 250 V ac
	Coil Current 6 A
	Minimum Operating Temperature -40°C
	Switching DC Voltage 24 V ac/dc
	Maximum Operating Temperature 70°C
	Standards/Approvals CE, CSA, cURus
	Height 76.4mm
	Width 88.5 mm
	Length 6.3mm

Datasheet - 1SVR405541R3110

COO (Country of Origin):: CN

ABB Interface Relay, 250V Output Signal, 76.4mm Height - CR-S Series - 1SVR405541R3110 CR-S024VADC1CRS

This SPDT interface relay from ABB is the missing link in your automated system. Use it to bridge the gap between different voltages to ensure smooth operation. It makes quick work of converting 24 AC/DC power into a 250V/6A output. The unit comes fully assembled and is a snap to mount – all you do is click it into place on a DIN rail, and you're ready to go. Streamlined dimensions of 93 (W) x 66 (L) x 81mm (H) mean you can slip this module snugly into tightly packed cabinets.

Features & Benefits

• Screw terminals make for quick-and-easy installation

• Operating temperature range between -40°C and +70°C for use in demanding applications

Applications

• Signalling equipment

• Control systems

• Manufacturing facilities

What does SPDT mean?

SPDT (single pole, double throw) means this unit has one input terminal and two outputs, so it's a small but mighty device that can control two circuits at once with ease.

Why do I need an interface relay?

Interface relays like this act as a go-between for components that use different voltages or communication protocols. By isolating power, you can protect your system from overload while making it a breeze to send information.
