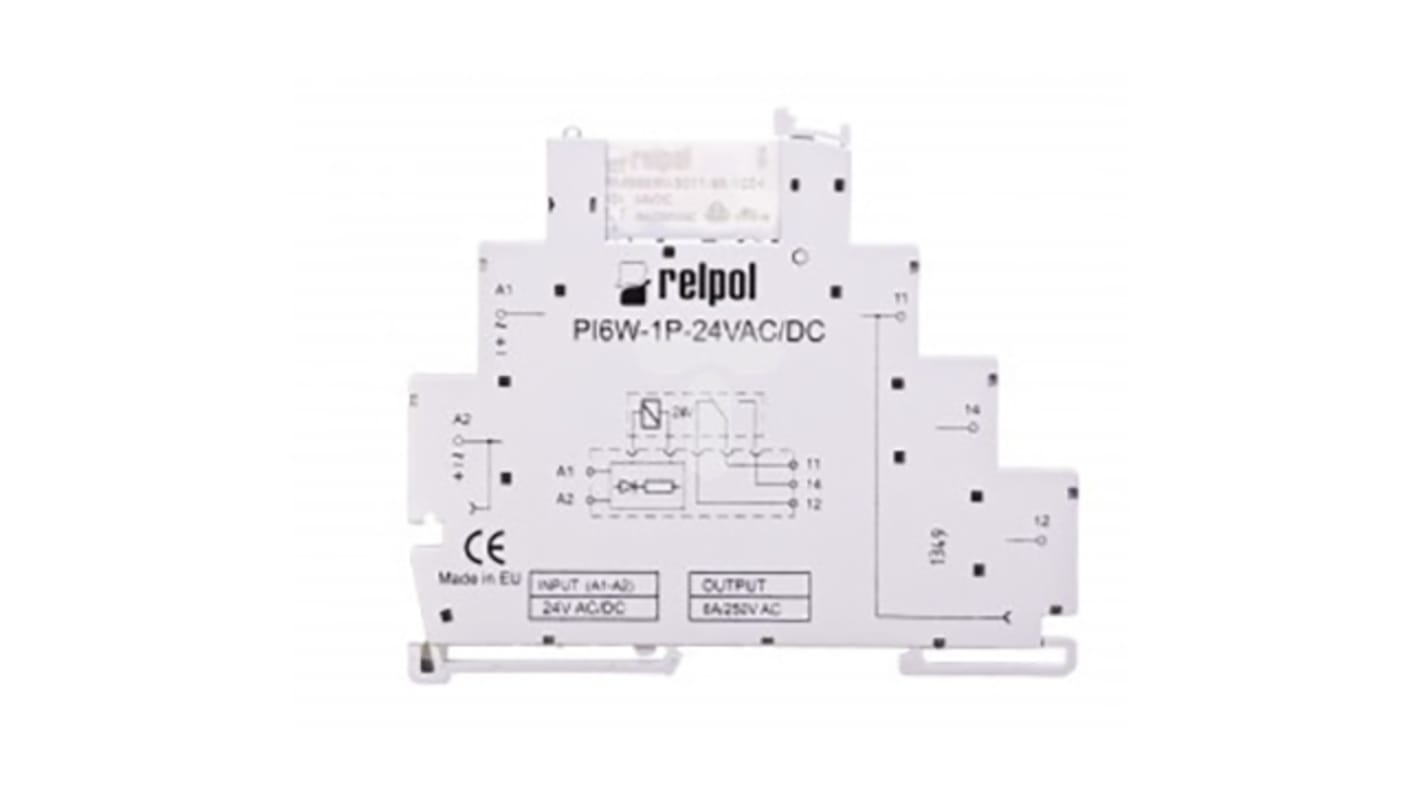

Relpol PIR6W Series Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 1-Pole, 6A Load

View this category

Subtotal (1 unit)*

PHP1,188.96

(exc. VAT)

PHP1,331.64

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 315 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP1,188.96

*price indicative

RS Stock No.:
914-3926
Mfr. Part No.:
PIR6W-1P-24VAC/DC
Manufacturer:
Relpol
Find similar products by selecting one or more attributes.
Select all

Brand

Relpol

Coil Voltage

24V ac/dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Series

PIR6W

Number of Poles

1

Load Current Rating

6A

Maximum Input Voltage

24V ac/dc

Switching Voltage

10 V → 400 V AC / 250V dc

Terminal Type

Screw

Depth

6.2mm

Height

85.5mm

Length

98.5mm

Contact Material

Silver Alloy

Relay Switching Classification

Interface Relay

Turn Off Time

18ms

Operating Temperature Range

-40 → +60°C

Control Resistance

≤100mΩ

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-40°C

Dimensions

98.5 x 6.2 x 85.5mm

Turn On Time

20ms

Standards Met

CE, CULus, DVE, EAC

COO (Country of Origin):
PL

PIR Series Interface Relays


Professional range of Interface relays from the PIR series. All of the relays are IP20 rated and can be DIN Rail mounted.

SPCO contact arrangement
LED Indicator and Relay Ejector
Contact Material: AgSnO2
IP20 protected
DIN Rail mount
