ABB CRS Series Interface Relay, DIN Rail, 110 V ac/dc Coil, SPDT

RS Stock No.:: 231-9476
Mfr. Part No.:: 1SVR405541R6110 CR-S110VADC1CRS
Manufacturer:: ABB

ABB CRS Series Interface Relay, DIN Rail, 110 V ac/dc Coil, SPDT

View this category

Subtotal (1 unit)*

PHP1,854.47

(exc. VAT)

PHP2,077.01

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Temporarily out of stock

Shipping from April 24, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP1,854.47

*price indicative

RS Stock No.:: 231-9476
Mfr. Part No.:: 1SVR405541R6110 CR-S110VADC1CRS
Manufacturer:: ABB

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Interface Relay
	Coil Voltage	110 V ac/dc
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Series	CRS
	Terminal Type	Screw
	Switching Current	6 A
	Switching AC Voltage	250 V ac
	Minimum Operating Temperature	-40°C
	Switching DC Voltage	110 V ac/dc
	Maximum Operating Temperature	55°C
	Standards/Approvals	EAC
	Length	88.5mm
	Width	88.5 mm
	Height	76.4mm

	Select all
	Brand ABB
	Product Type Interface Relay
	Coil Voltage 110 V ac/dc
	Contact Configuration SPDT
	Mount Type DIN Rail
	Series CRS
	Terminal Type Screw
	Switching Current 6 A
	Switching AC Voltage 250 V ac
	Minimum Operating Temperature -40°C
	Switching DC Voltage 110 V ac/dc
	Maximum Operating Temperature 55°C
	Standards/Approvals EAC
	Length 88.5mm
	Width 88.5 mm
	Height 76.4mm

COO (Country of Origin):: CN

ABB Interface Relay, Screw Terminals, 30g Weight - CR-S Series - 1SVR405541R6110 CR-S110VADC1CRS

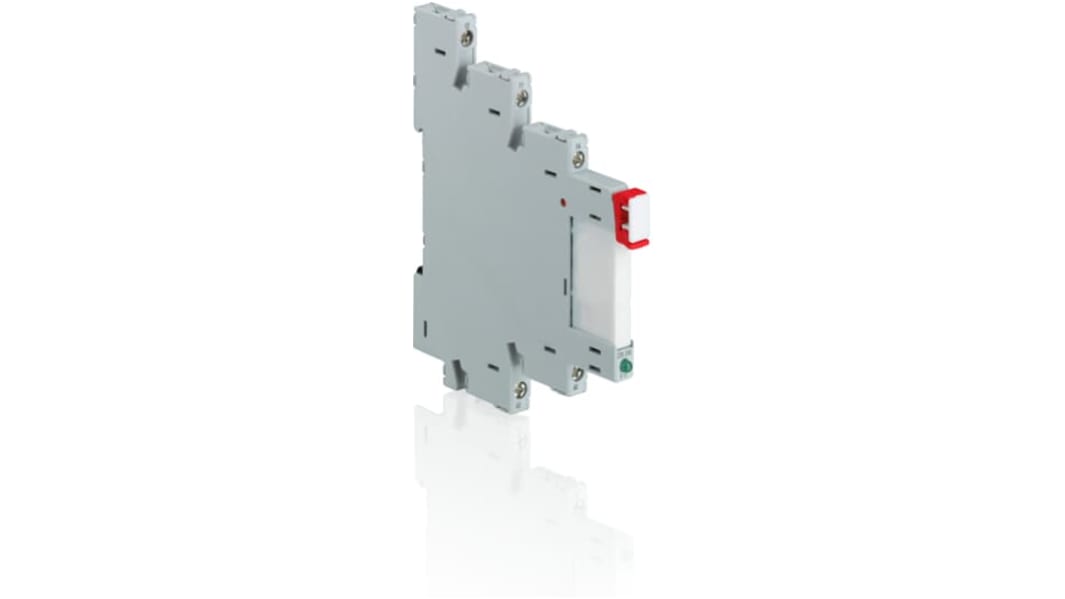

Put process peripherals in touch with your PLC using this interface relay from ABB. Its galvanic isolation keeps interference at bay, so you know there's little chance of your signals going haywire. This helps to keep automated production running efficiently and safely. A high current switching capacity of up to 6A lets you put the unit to the test in demanding systems. Dimensions of 88.5 (L) x 6.3 (W) x 76.4mm (H) give it a small footprint, so it's just what you need in areas with limited space. The relay slides seamlessly into a control cabinet, thanks to its modular design.

Features & Benefits

• Snaps onto a DIN rail for quick and tool-free assembly

• Wide operating temperature range between -40°C and +55°C, making it suitable to use in harsh environments

• Screw terminals securely hold conductors, minimising the need for re-tightening

Applications

• Automotive manufacturing

• Hospitals and medical centres

• Oil and gas industries

• Food production

Does this interface relay come fully assembled?

Yes, the unit's supplied fully assembled, so you can put it straight to work.
