ROHM BR25G256FJ-5AE2, 256 kB EEPROM 8-Pin SOP-J8 SPI
- RS Stock No.:
- 265-203
- Mfr. Part No.:
- BR25G256FJ-5AE2
- Manufacturer:
- ROHM

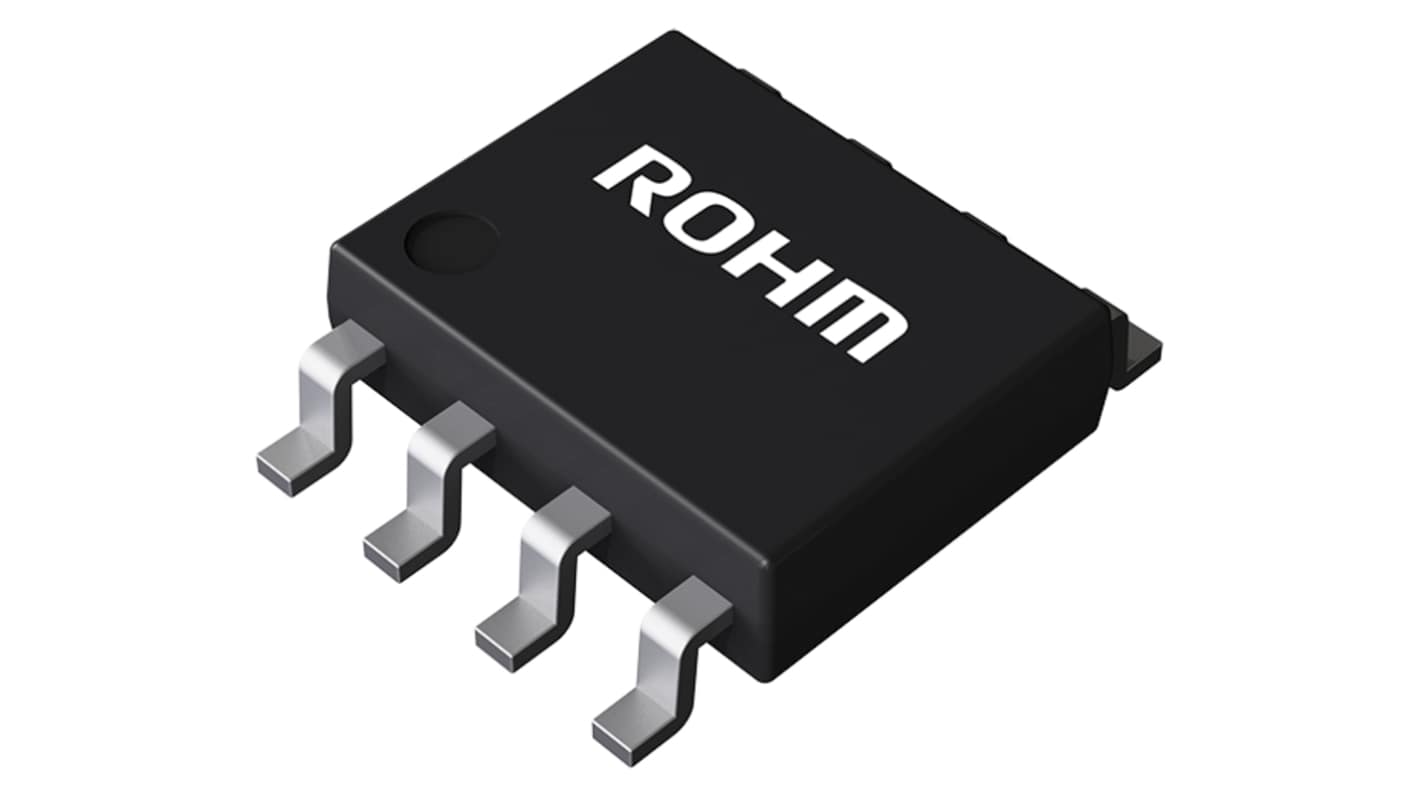

This image is representative of the product range
Bulk discount available
Subtotal (1 tape of 10 units)*
PHP444.24
(exc. VAT)
PHP497.55
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 70 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tape* |
|---|---|---|
| 10 - 90 | PHP44.424 | PHP444.24 |
| 100 - 240 | PHP42.242 | PHP422.42 |
| 250 - 490 | PHP39.10 | PHP391.00 |
| 500 - 990 | PHP35.958 | PHP359.58 |
| 1000 + | PHP34.649 | PHP346.49 |
*price indicative
- RS Stock No.:
- 265-203
- Mfr. Part No.:
- BR25G256FJ-5AE2
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | EEPROM | |
| Memory Size | 256kB | |
| Interface Type | SPI | |
| Package Type | SOP-J8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Organisation | 32768 x 8 bit | |
| Maximum Clock Frequency | 20MHz | |
| Minimum Supply Voltage | 1.6V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.65mm | |
| Series | BR25G256xxx-5A | |
| Length | 6mm | |
| Standards/Approvals | RoHS Compliant | |
| Width | 4.9 mm | |
| Supply Current | 8mA | |
| Automotive Standard | No | |
| Number of Words | 32768 | |
| Data Retention | 200year | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type EEPROM | ||
Memory Size 256kB | ||
Interface Type SPI | ||
Package Type SOP-J8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Organisation 32768 x 8 bit | ||
Maximum Clock Frequency 20MHz | ||
Minimum Supply Voltage 1.6V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.65mm | ||
Series BR25G256xxx-5A | ||
Length 6mm | ||
Standards/Approvals RoHS Compliant | ||
Width 4.9 mm | ||
Supply Current 8mA | ||
Automotive Standard No | ||
Number of Words 32768 | ||
Data Retention 200year | ||
The ROHM EEPROM offers advanced write protection features, including software-controlled write protect block settings (1/4, 1/2, or whole memory array). It includes a HOLD function via the HOLDB pin, write prohibition at power-on, and additional write protection through the WPB pin. The design ensures prevention of write mistakes, even at low voltage, providing robust data security.
Address Auto Increment Function at Read Operation
Auto Erase and Auto End Function at Data Rewrite
