ROHM BR25H040F-5ACE2, 4 kB EEPROM 8-Pin SOP-J8 SPI
- RS Stock No.:
- 264-350
- Mfr. Part No.:
- BR25H040F-5ACE2
- Manufacturer:
- ROHM

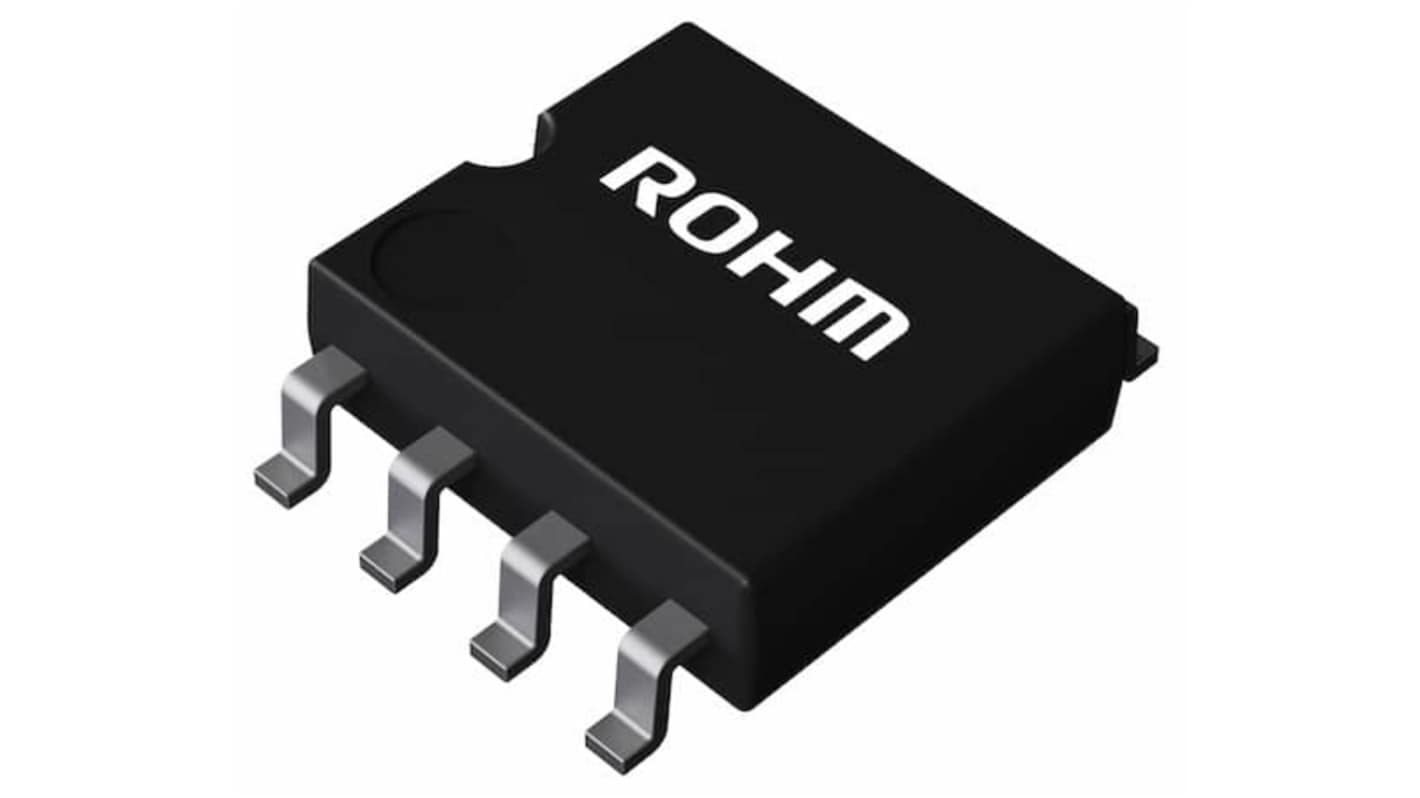

This image is representative of the product range
Bulk discount available
Subtotal (1 tape of 25 units)*
PHP797.70
(exc. VAT)
PHP893.425
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tape* |
|---|---|---|
| 25 - 75 | PHP31.908 | PHP797.70 |
| 100 - 225 | PHP30.302 | PHP757.55 |
| 250 - 475 | PHP28.068 | PHP701.70 |
| 500 - 975 | PHP25.834 | PHP645.85 |
| 1000 + | PHP24.891 | PHP622.28 |
*price indicative
- RS Stock No.:
- 264-350
- Mfr. Part No.:
- BR25H040F-5ACE2
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Memory Size | 4kB | |
| Product Type | EEPROM | |
| Interface Type | SPI | |
| Package Type | SOP-J8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 20MHz | |
| Organisation | 512 x 8 bit | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 6.2mm | |
| Series | BR25H040xxx-5AC | |
| Height | 1.71mm | |
| Standards/Approvals | AEC-Q100 | |
| Width | 5 mm | |
| Automotive Standard | AEC-Q100 | |
| Number of Words | 512 | |
| Data Retention | 50year | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Memory Size 4kB | ||
Product Type EEPROM | ||
Interface Type SPI | ||
Package Type SOP-J8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 20MHz | ||
Organisation 512 x 8 bit | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Length 6.2mm | ||
Series BR25H040xxx-5AC | ||
Height 1.71mm | ||
Standards/Approvals AEC-Q100 | ||
Width 5 mm | ||
Automotive Standard AEC-Q100 | ||
Number of Words 512 | ||
Data Retention 50year | ||
The ROHM EEPROM offers advanced write protection features, including software-controlled write protect block settings (1/4, 1/2, or whole memory array). It includes a HOLD function via the HOLDB pin, write prohibition at power-on, and additional write protection through the WPB pin. The design ensures prevention of write mistakes, even at low voltage, providing robust data security.
Address Auto Increment Function at Read Operation
Auto Erase and Auto End Function at Data Rewrite
