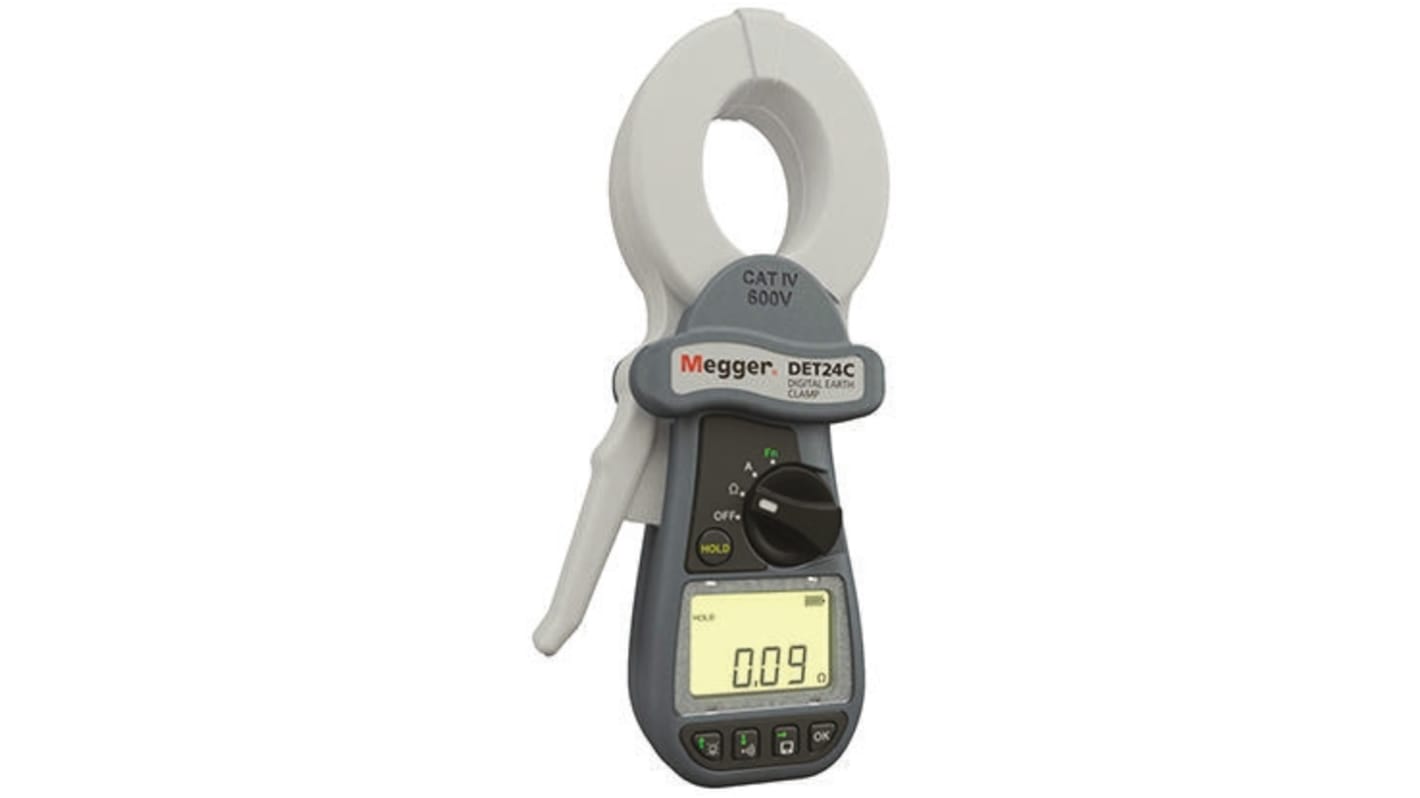

Megger DET24C Earth Tester, 1.5kΩ CAT IV 600 V

RS Stock No.:: 910-6810
Distrelec Article No.:: 176-48-573
Mfr. Part No.:: 1007-331
Manufacturer:: Megger

Megger DET24C Earth Tester, 1.5kΩ CAT IV 600 V

This image is representative of the product range

Bulk discount available

Subtotal (1 unit)*

PHP165,596.12

(exc. VAT)

PHP185,467.65

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

13 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	PHP165,596.12
5 +	PHP160,628.27

*price indicative

RS Stock No.:: 910-6810
Distrelec Article No.:: 176-48-573
Mfr. Part No.:: 1007-331
Manufacturer:: Megger

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Megger
	Absolute Maximum Resistance Measurement	1.5kΩ
	Best Accuracy	1.5 %
	Measurement Type	Frequency, Ground Resistance, RMS AC Current, RMS Ground Leakage Current
	Display Type	LCD
	Safety Category	CAT IV 600 V
	Battery Life	24 h
	Battery Type	AA
	Power Source	Battery, Mains
	Dimensions	248 x 114 x 49mm
	Weight	985g
	Height	49mm
	Includes	CD-ROM, User Manual
	Length	248mm
	Maximum Operating Temperature	+50°C
	Width	114mm
	Safety Category Voltage	600V
	Model Number p	DET24C
	Minimum Operating Temperature	-20°C
	Safety Category Level	CAT IV, EN 61010-2-032

	Select all
	Brand Megger
	Absolute Maximum Resistance Measurement 1.5kΩ
	Best Accuracy 1.5 %
	Measurement Type Frequency, Ground Resistance, RMS AC Current, RMS Ground Leakage Current
	Display Type LCD
	Safety Category CAT IV 600 V
	Battery Life 24 h
	Battery Type AA
	Power Source Battery, Mains
	Dimensions 248 x 114 x 49mm
	Weight 985g
	Height 49mm
	Includes CD-ROM, User Manual
	Length 248mm
	Maximum Operating Temperature +50°C
	Width 114mm
	Safety Category Voltage 600V
	Model Number p DET24C
	Minimum Operating Temperature -20°C
	Safety Category Level CAT IV, EN 61010-2-032

Datasheet

COO (Country of Origin):: GB

Megger Earth Tester, 39mm Maximum Jaw Opening, Bluetooth Compatible - DET Series - 1007-331

Put your grounding systems through the wringer with this earth tester from Megger. It features an innovative clamp-on mechanism that allows you to evaluate live networks without disconnecting them. The unit pushes a test current into the circuit and measures the ground resistance. Thanks to its built-in memory, you can store up to 2,000 results to analyse later. The instrument also has a hold function that keeps measured values on its screen for reliable recording. With a measurement range between 0.05 and 1,500Ω, this is a multitasker that handles light-duty and heavy-duty applications.

Features & Benefits

• Auto power-down function saves energy when the tool isn't in use
• Integrated buzzer alarm gives audible notifications of high-current and low-current conditions
• Bluetooth-compatible for easy data log transfer to your PC
• Four AA batteries provide up to 24 hours of continuous test life for long-term use

Applications

• Lighting protection systems
• Agricultural industry
• Data banks

What accessories does this tester come with?

This unit comes with a carry case and wrist loop, user guide CD-ROM, calibration check tool and the PowerDB Lite for easy configuration on your PC. This means you've everything you need to get to work.
