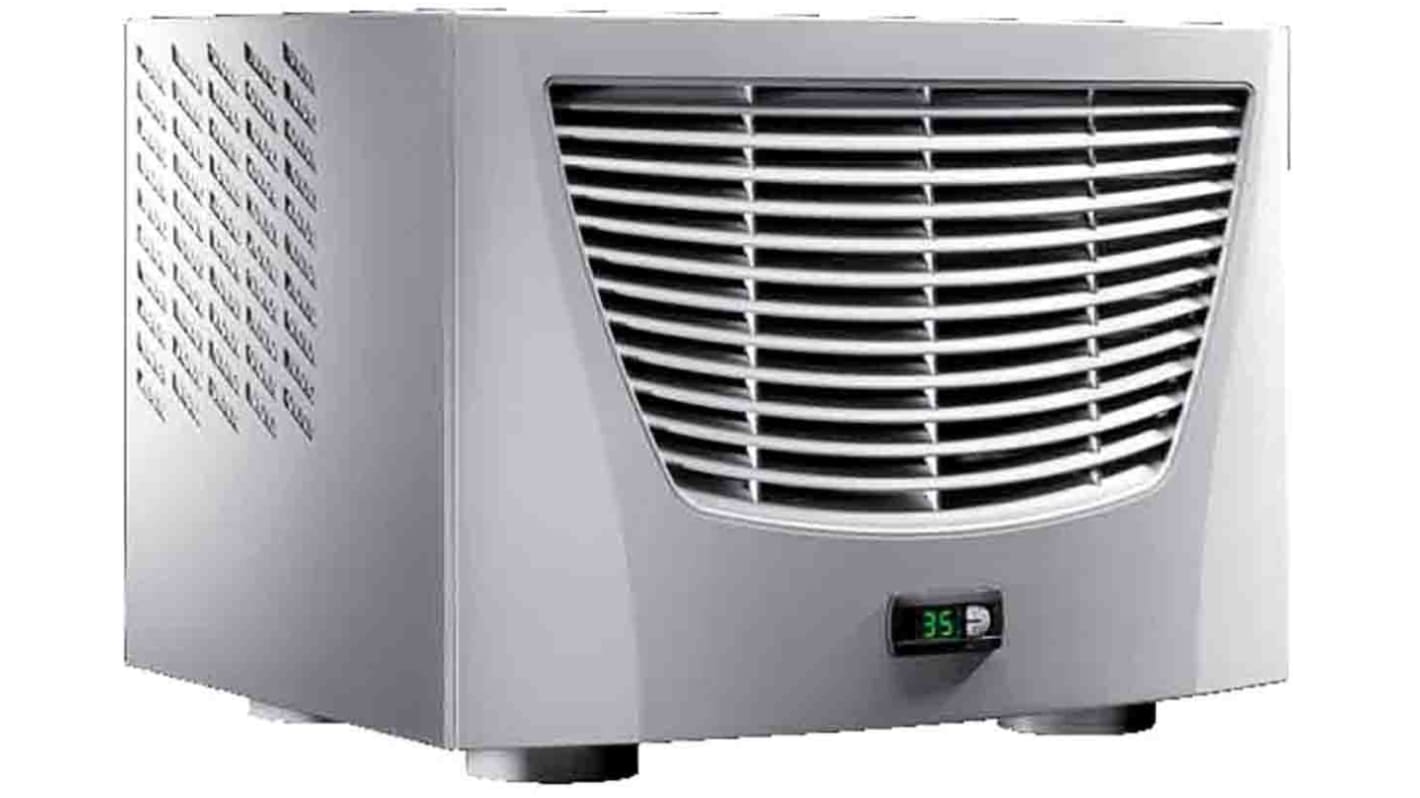

Rittal TopTherm Series Enclosure Cooling Unit, 3800W, 3870 m³/h 400 V ac 470 mm 796 mm 580 mm

RS Stock No.:: 224-0090
Mfr. Part No.:: 3387540
Manufacturer:: Rittal

Rittal TopTherm Series Enclosure Cooling Unit, 3800W, 3870 m³/h 400 V ac 470 mm 796 mm 580 mm

Bulk discount available

Subtotal (1 unit)*

PHP402,119.41

(exc. VAT)

PHP450,373.74

(inc. VAT)

Add 1 unit to get free delivery

Orders below PHP3,000.00 (exc. VAT) cost PHP150.00.

Temporarily out of stock

Shipping from April 07, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	PHP402,119.41
5 - 9	PHP394,077.03
10 +	PHP386,195.49

*price indicative

RS Stock No.:: 224-0090
Mfr. Part No.:: 3387540
Manufacturer:: Rittal

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Rittal
	Maximum Cooling Power	3800W
	Product Type	Enclosure Cooling Unit
	Air Flow	3870m³/h
	Input Power	1.59kW
	Mount Type	Roof
	Connection Type	Plug-In Terminal Strip
	Power Consumption	2310W
	Maximum Supply Voltage	400V ac
	IP Rating	IP54, IP34
	Min Temperature Setting	20°C
	Maximum Temperature Setting	55°C
	Certification	FTTA uR, UL, cUr, cUL, CSA
	Material	Sheet Steel
	Weight	73.2kg
	Standards/Approvals	CSA UL+C-UL-FTTA UR+C-UR
	Series	TopTherm
	Width	796 mm
	Height	470mm
	Depth	580mm
	Cooler Type	Blue Roof Mounted Cooling Units
	Frequency	60Hz
	Nominal Current	4.1A
	Refrigerant Type	R513a
	Cooling Capacity	4kW

	Select all
	Brand Rittal
	Maximum Cooling Power 3800W
	Product Type Enclosure Cooling Unit
	Air Flow 3870m³/h
	Input Power 1.59kW
	Mount Type Roof
	Connection Type Plug-In Terminal Strip
	Power Consumption 2310W
	Maximum Supply Voltage 400V ac
	IP Rating IP54, IP34
	Min Temperature Setting 20°C
	Maximum Temperature Setting 55°C
	Certification FTTA uR, UL, cUr, cUL, CSA
	Material Sheet Steel
	Weight 73.2kg
	Standards/Approvals CSA UL+C-UL-FTTA UR+C-UR
	Series TopTherm
	Width 796 mm
	Height 470mm
	Depth 580mm
	Cooler Type Blue Roof Mounted Cooling Units
	Frequency 60Hz
	Nominal Current 4.1A
	Refrigerant Type R513a
	Cooling Capacity 4kW

COO (Country of Origin):: IT

Rittal TopTherm Series Enclosure Cooling Unit, 3800W Maximum Cooling Power, 400V Supply Voltage - 3387540

This enclosure cooling unit is designed for effective industrial air cooling, ensuring optimal temperature management for electrical enclosure applications. With dimensions of 470 x 796 x 580 mm and a maximum cooling power of 3800W, this robust unit efficiently handles the cooling needs of various environments. The unit utilises flexible mounting options as a roof mount solution, making it suitable for diverse setups.

Features & Benefits

• High performance cooling unit with a total cooling output of 3.8kW

• Features a nano-coated condenser for enhanced durability

• Integral electric condensate evaporation eliminates maintenance issues

• Plug-in terminal strip ensures easy electrical connections

• Allows connection to IoT interface via Blue e IoT adaptor

Applications

• Used for cooling electrical components in enclosures

• Suitable for automation equipment requiring precise temperature control

• Effective in mechanical systems with critical temperature requirements

• Ideal for environments needing consistent cooling solutions such as electronics

How is the cooling efficiency optimised in this model?

The unit is designed with an internal circuit air flow of 1420 m³/h and an external circuit air flow of 3870 m³/h, enhancing heat exchange efficiency. The use of refrigerant R-513A supports better thermal management while minimising environmental impact.

What are the electrical specifications for installation?

It operates at a supply voltage of 400V AC with a frequency of 50Hz. The maximum rated current is 4.1A, ensuring compatibility with standard electrical systems while allowing straightforward installation.

Can it handle high ambient temperatures?

Yes, it operates effectively in environments with ambient temperatures from +10°C to +55°C, making it suitable for various industrial applications. This ensures reliable performance under challenging conditions.
