Rittal SK 3375.100 Series Enclosure Cooling Unit, 5000W, 1500 m³/h 230 V ac 1400 mm 450 mm 220 mm
- RS Stock No.:
- 224-0067
- Mfr. Part No.:
- 3375100
- Manufacturer:
- Rittal
Subtotal (1 unit)*
PHP173,764.92
(exc. VAT)
PHP194,616.71
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | PHP173,764.92 |
*price indicative
- RS Stock No.:
- 224-0067
- Mfr. Part No.:
- 3375100
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 5000W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 1500m³/h | |
| Input Power | 172W | |
| Mount Type | Wall | |
| Connection Type | G 3/8 in External Thread, 1/2 in Connector Sleeve | |
| Power Consumption | 172W | |
| Maximum Supply Voltage | 230V ac | |
| IP Rating | IP55 | |
| Certification | cUr, FTTA uR, UL, cUL, CSA | |
| Material | Copper, Brass | |
| Type of installation | External or Full Internal | |
| Min Temperature Setting | 1°C | |
| Maximum Temperature Setting | 55°C | |
| Depth | 220mm | |
| Height | 1400mm | |
| Weight | 39kg | |
| Width | 450 mm | |
| Series | SK 3375.100 | |
| Standards/Approvals | CSA UL+C-UL-FTTA UR+C-UR | |
| Cooling Capacity | 5kW | |
| Nominal Current | 1.45A | |
| Refrigerant Type | Water | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 5000W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 1500m³/h | ||
Input Power 172W | ||
Mount Type Wall | ||
Connection Type G 3/8 in External Thread, 1/2 in Connector Sleeve | ||
Power Consumption 172W | ||
Maximum Supply Voltage 230V ac | ||
IP Rating IP55 | ||
Certification cUr, FTTA uR, UL, cUL, CSA | ||
Material Copper, Brass | ||
Type of installation External or Full Internal | ||
Min Temperature Setting 1°C | ||
Maximum Temperature Setting 55°C | ||
Depth 220mm | ||
Height 1400mm | ||
Weight 39kg | ||
Width 450 mm | ||
Series SK 3375.100 | ||
Standards/Approvals CSA UL+C-UL-FTTA UR+C-UR | ||
Cooling Capacity 5kW | ||
Nominal Current 1.45A | ||
Refrigerant Type Water | ||
Frequency 60Hz | ||
- COO (Country of Origin):
- IT

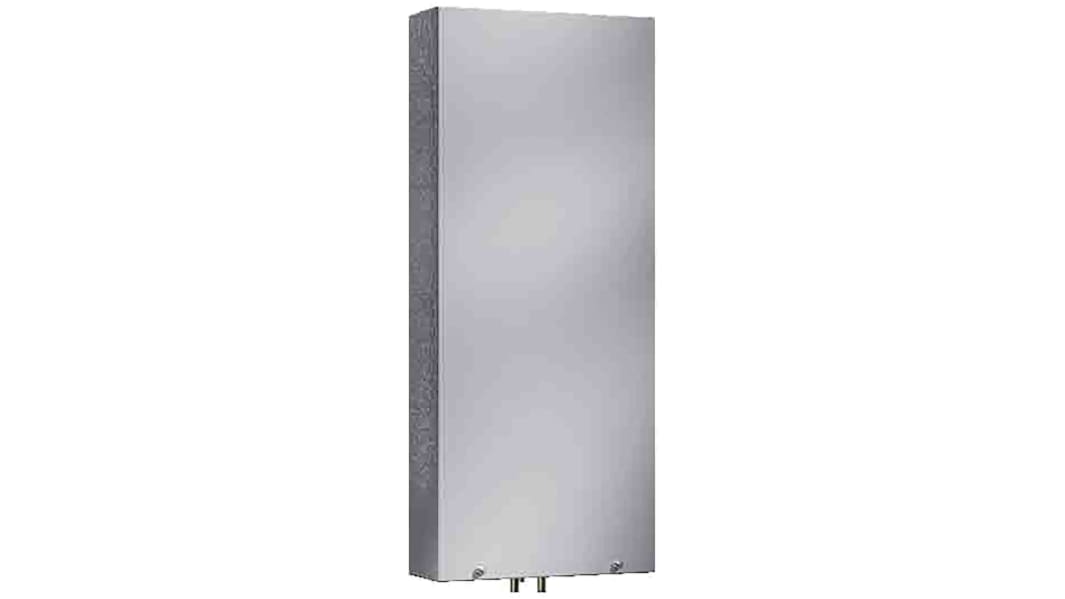

The Rittal SK series is the wall-mounted heat exchanger for use in harsh environments and temperature ranges up to +70 °C. Its user-friendly assembly plus flexible water connection options. External mounting or full internal mounting are supported. The total cooling output of the heat exchanger is 5kW.
IP degree of protection is IP55
Colour is RAL 7035
Operation temperature is +1 °C to 70 °C
