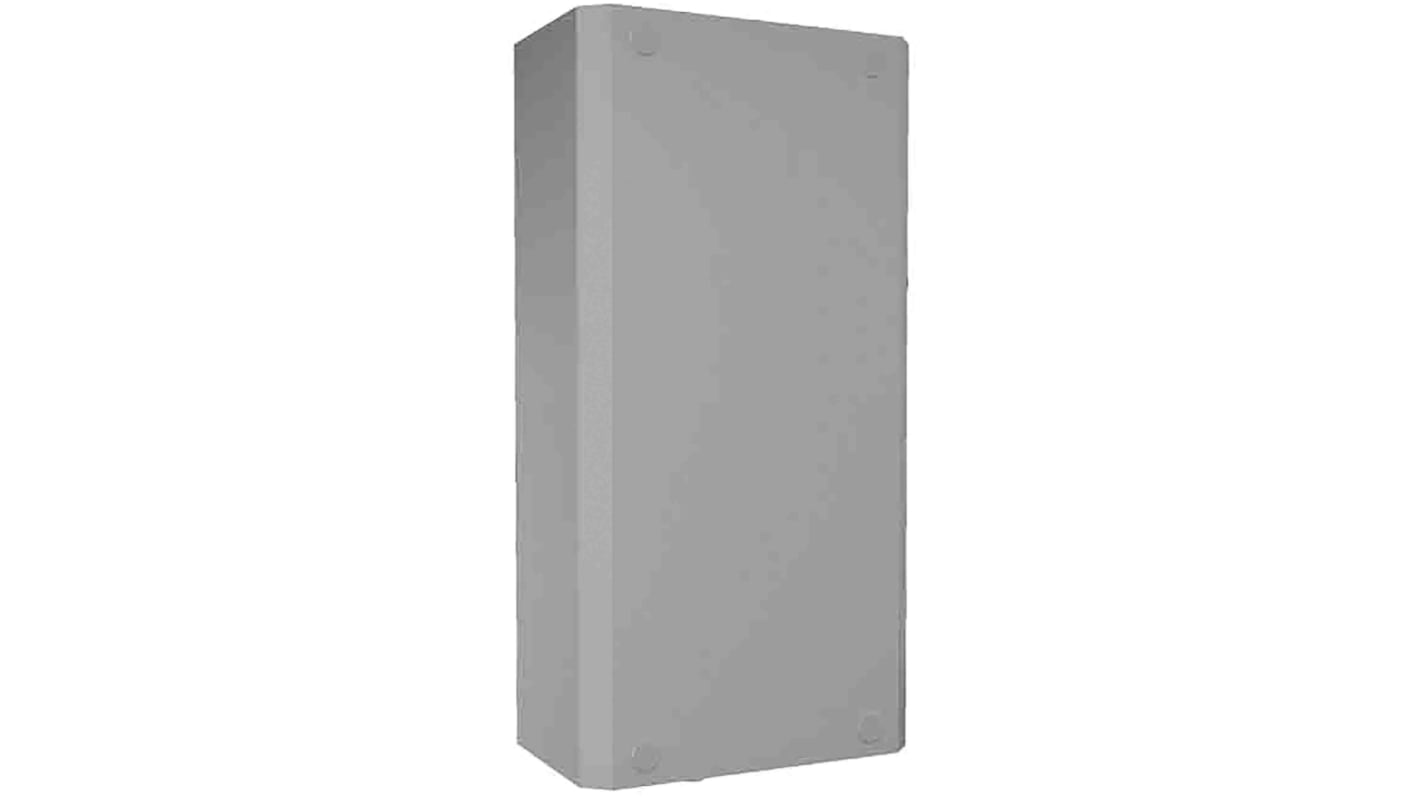

Rittal SK 3212.230 Series Enclosure Cooling Unit, 300W, 0.2 m³/h 230 V ac 300 mm 150 mm 85 mm

RS Stock No.:: 223-9953
Mfr. Part No.:: 3212230
Manufacturer:: Rittal

Rittal SK 3212.230 Series Enclosure Cooling Unit, 300W, 0.2 m³/h 230 V ac 300 mm 150 mm 85 mm

Subtotal (1 unit)*

PHP61,362.59

(exc. VAT)

PHP68,726.10

(inc. VAT)

Add 1 unit to get free delivery

Orders below PHP3,000.00 (exc. VAT) cost PHP150.00.

In Stock

2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP61,362.59

*price indicative

RS Stock No.:: 223-9953
Mfr. Part No.:: 3212230
Manufacturer:: Rittal

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Rittal
	Product Type	Enclosure Cooling Unit
	Maximum Cooling Power	300W
	Air Flow	0.2m³/h
	Input Power	23W
	Mount Type	Wall
	Connection Type	3/8 in Sleeve
	IP Rating	IP55
	Maximum Supply Voltage	230V ac
	Material	Water Carrying Parts: Copper, Brass
	Type of installation	External Mounting or Full Internal Mounting
	Certification	EAC
	Depth	85mm
	Height	300mm
	Series	SK 3212.230
	Weight	3.2kg
	Standards/Approvals	No
	Width	150 mm
	Cooler Type	Water Cooler
	Frequency	60Hz
	Nominal Current	0.13A
	Refrigerant Type	Water

	Select all
	Brand Rittal
	Product Type Enclosure Cooling Unit
	Maximum Cooling Power 300W
	Air Flow 0.2m³/h
	Input Power 23W
	Mount Type Wall
	Connection Type 3/8 in Sleeve
	IP Rating IP55
	Maximum Supply Voltage 230V ac
	Material Water Carrying Parts: Copper, Brass
	Type of installation External Mounting or Full Internal Mounting
	Certification EAC
	Depth 85mm
	Height 300mm
	Series SK 3212.230
	Weight 3.2kg
	Standards/Approvals No
	Width 150 mm
	Cooler Type Water Cooler
	Frequency 60Hz
	Nominal Current 0.13A
	Refrigerant Type Water

COO (Country of Origin):: IT

Rittal Enclosure Cooling Unit, Wall Mount Type, 1 to 10 Bar Operating Pressure Range - SK Series - 3212230

Maintain the optimal temperature for electrical components in your panel with this enclosure cooling unit from Rittal. It runs a water-based system that blows away the hot air, letting cooler air in. With an internal circuit airflow of 310m³/h and a total cooling output of 0.3kW, it emits sufficient breeze to prevent overheating. Thanks to the wide ambient operating temperature range of +1°C to +70°C, this appliance stands up to the heat in demanding working environments.

Features & Benefits

• Operating pressure range between 1 and 10 bar to suit your setup

• Fully wired for ease of connection

• IP55 rating shows it's protected from limited amounts of dust and water sprays from any angle

Applications

• Chemical plants

• Oil and gas industry

• Storage facilities

• Aerospace engineering

What's the permissible setting range of this unit?

You can adjust the output between +20°C and +55°C to match your preferred setting.
