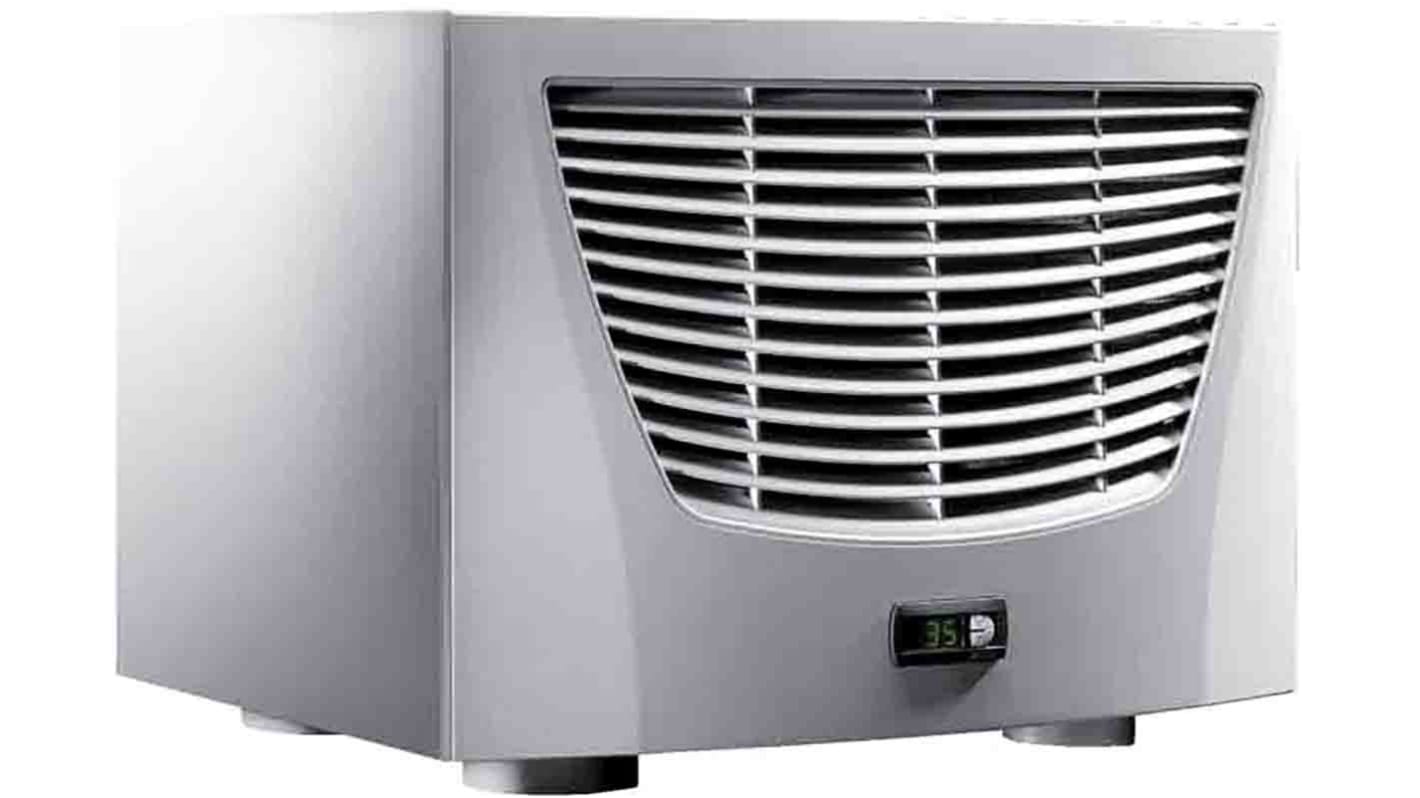

Rittal SK 3209.100 Series Enclosure Cooling Unit, 2500W, 1030 m³/h 230V ac 417 mm 597mm 475 mm
- RS Stock No.:
- 223-9947
- Mfr. Part No.:
- 3209100
- Manufacturer:
- Rittal
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP119,588.92
(exc. VAT)
PHP133,939.59
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Stocked by manufacturer
- Ready to ship from August 28, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP119,588.92 |
| 5 - 9 | PHP117,197.15 |
| 10 + | PHP114,853.21 |
*price indicative
- RS Stock No.:
- 223-9947
- Mfr. Part No.:
- 3209100
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 2500W | |
| Air Flow | 1030m³/h | |
| Mount Type | Roof | |
| Input Power | 95W | |
| Connection Type | Plug-In Terminal Strip | |
| Maximum Supply Voltage | 230V ac | |
| IP Rating | IP55 | |
| Certification | Declaration of Conformity, cUr, EAC, CSA, uR | |
| Type of installation | Roof Mount | |
| Material | Brass (Cu/Cuzn), Copper | |
| Min Temperature Setting | 1°C | |
| Weight | 23.5kg | |
| Height | 417mm | |
| Standards/Approvals | EAC, CSA UR+C-UR | |
| Width | 597mm | |
| Depth | 475mm | |
| Series | SK 3209.100 | |
| Frequency | 60Hz | |
| Nominal Current | 0.4A | |
| Refrigerant Type | Water | |
| Cooling Capacity | 2.5kW | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 2500W | ||
Air Flow 1030m³/h | ||
Mount Type Roof | ||
Input Power 95W | ||
Connection Type Plug-In Terminal Strip | ||
Maximum Supply Voltage 230V ac | ||
IP Rating IP55 | ||
Certification Declaration of Conformity, cUr, EAC, CSA, uR | ||
Type of installation Roof Mount | ||
Material Brass (Cu/Cuzn), Copper | ||
Min Temperature Setting 1°C | ||
Weight 23.5kg | ||
Height 417mm | ||
Standards/Approvals EAC, CSA UR+C-UR | ||
Width 597mm | ||
Depth 475mm | ||
Series SK 3209.100 | ||
Frequency 60Hz | ||
Nominal Current 0.4A | ||
Refrigerant Type Water | ||
Cooling Capacity 2.5kW | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the roof-mounted air/water heat exchanger for use in harsh environments and temperature ranges up to +70 °C. The air/water heat exchanger is assembled on the roof of the enclosure using flexible water connection options. The total cooling output of the heat exchanger is 2.5 kW.
IP degree of protection is IP55
Colour is RAL 7035
Operation temperature is +1 °C to 70 °C
