Same Sky Omni-Directional, Pin 9.4 mm Condenser Microphone Component -44dB
- RS Stock No.:
- 259-6161
- Mfr. Part No.:
- CMB-6544PF
- Manufacturer:
- Same Sky

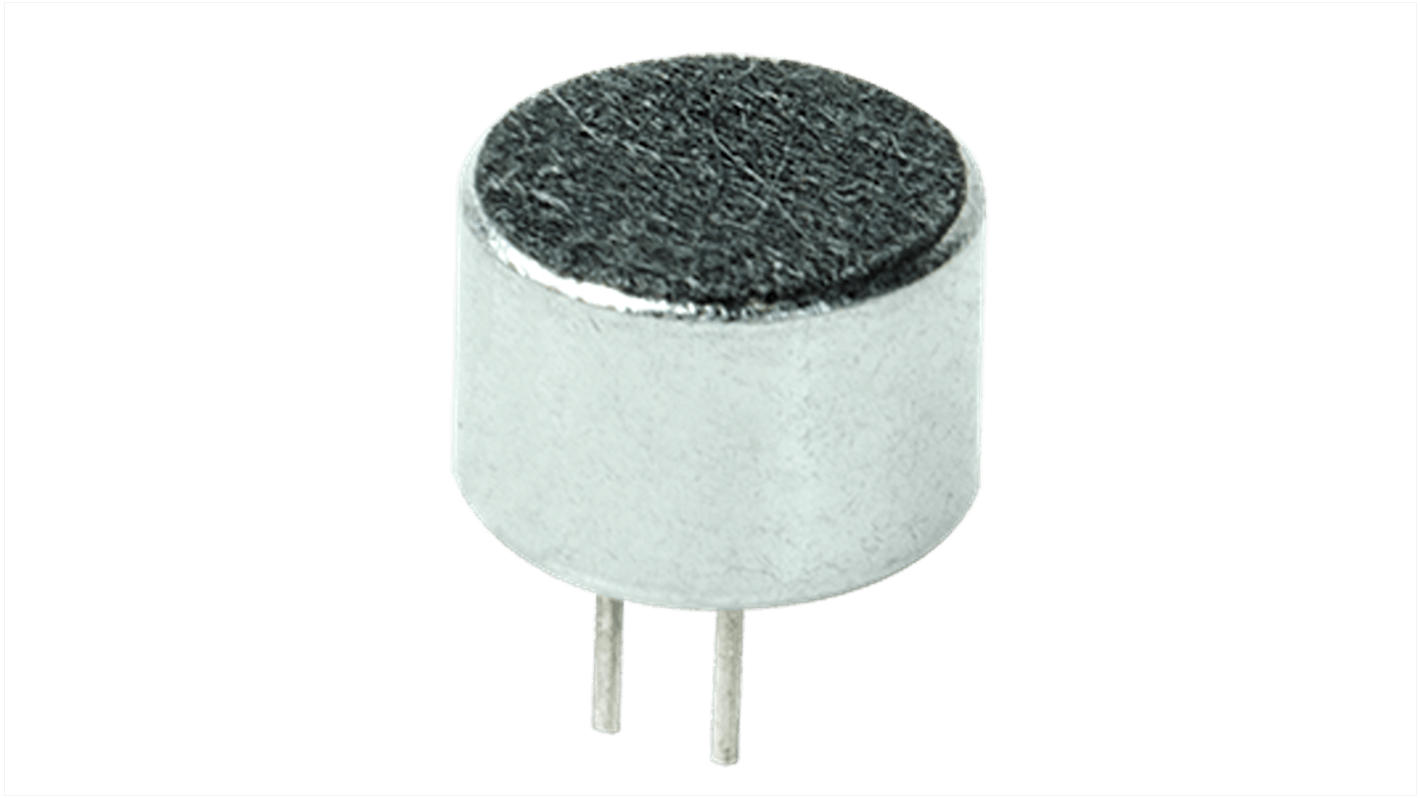

This image is representative of the product range
Bulk discount available
Subtotal (1 box of 100 units)*
PHP2,722.40
(exc. VAT)
PHP3,049.10
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Box* |
|---|---|---|
| 100 - 100 | PHP27.224 | PHP2,722.40 |
| 200 - 200 | PHP25.86 | PHP2,586.00 |
| 300 + | PHP24.572 | PHP2,457.20 |
*price indicative
- RS Stock No.:
- 259-6161
- Mfr. Part No.:
- CMB-6544PF
- Manufacturer:
- Same Sky
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Product Type | Condenser Microphone Component | |
| Sensitivity | -44dB | |
| Directivity | Omni-Directional | |
| Standard Operating Voltage | 4.5V dc | |
| Mount Type | Pin | |
| Output Impedance | 1kΩ | |
| Signal to Noise Ratio | 60dB | |
| Diameter | 9.4mm | |
| Maximum Frequency | 20kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Termination Style | Pin | |
| Minimum Frequency | 20Hz | |
| Series | CMB | |
| Height | 6.5mm | |
| Standards/Approvals | RoHS | |
| Supply Current | 0.5mA | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Product Type Condenser Microphone Component | ||
Sensitivity -44dB | ||
Directivity Omni-Directional | ||
Standard Operating Voltage 4.5V dc | ||
Mount Type Pin | ||
Output Impedance 1kΩ | ||
Signal to Noise Ratio 60dB | ||
Diameter 9.4mm | ||
Maximum Frequency 20kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Termination Style Pin | ||
Minimum Frequency 20Hz | ||
Series CMB | ||
Height 6.5mm | ||
Standards/Approvals RoHS | ||
Supply Current 0.5mA | ||
- COO (Country of Origin):
- CN
The CUI devices condenser microphone components with an omnidirectional directivity with a mounting type of pin mount and a sensitivity of -44 dB. The rated operating voltage is 4.5 V.
Output impedance is 1 kΩ
Material is Al
