Same Sky Omni-Directional, Pin 9.7 mm Condenser Microphone Component -42dB

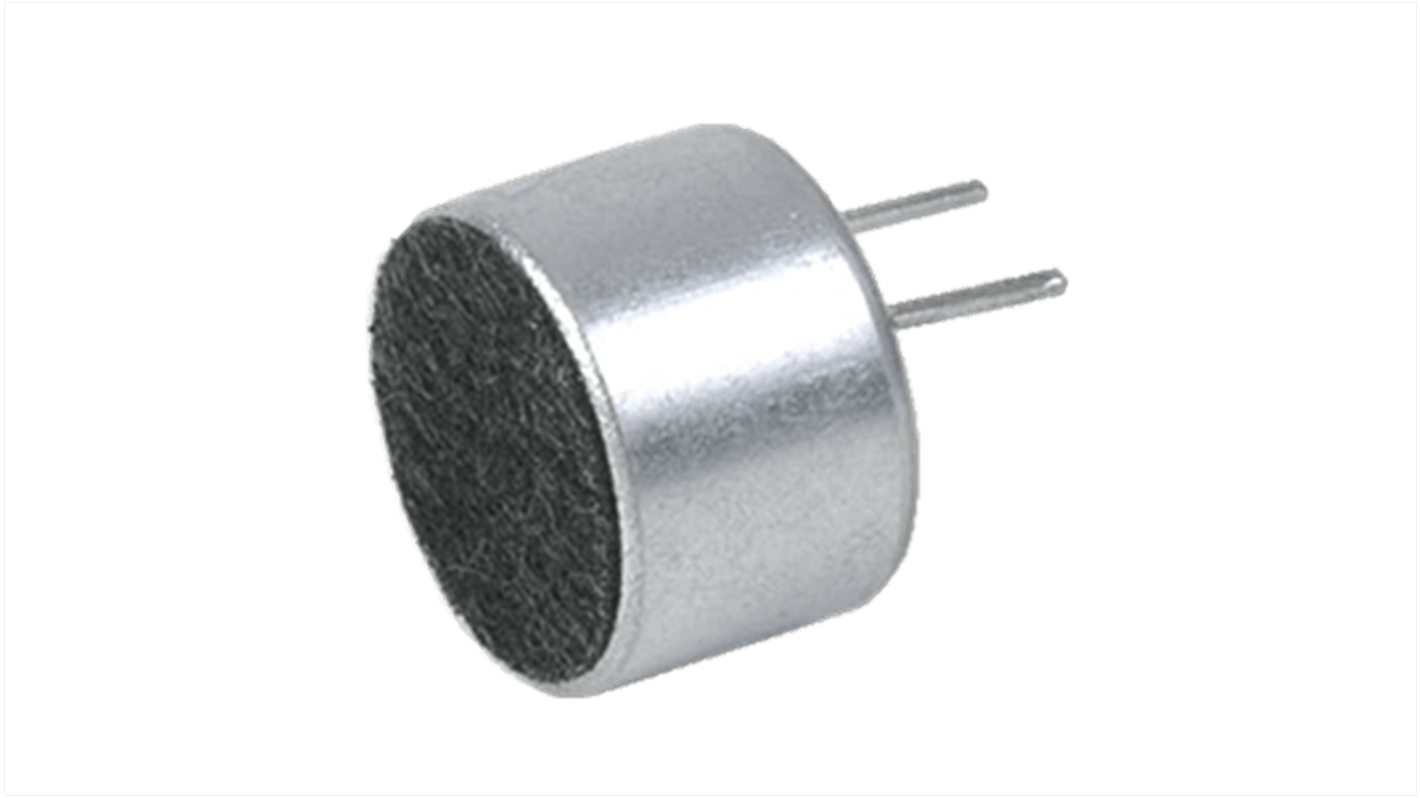

This image is representative of the product range

View this category
Bulk discount available

Subtotal (1 box of 100 units)*

PHP3,035.10

(exc. VAT)

PHP3,399.30

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 700 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Box*
100 - 100PHP30.351PHP3,035.10
200 - 200PHP28.835PHP2,883.50
300 +PHP27.395PHP2,739.50

*price indicative

RS Stock No.:
259-6156
Mfr. Part No.:
CMA-6542PF
Manufacturer:
Same Sky
Find similar products by selecting one or more attributes.
Select all

Brand

Same Sky

Sensitivity

-42dB

Product Type

Condenser Microphone Component

Directivity

Omni-Directional

Standard Operating Voltage

4.5V

Mount Type

Pin

Output Impedance

2.2kΩ

Signal to Noise Ratio

60dB

Diameter

9.7 mm

Minimum Operating Temperature

-20°C

Maximum Frequency

20kHz

Maximum Operating Temperature

70°C

Series

CMA

Minimum Frequency

50Hz

Standards/Approvals

RoHS

Termination Style

Pin

Height

6.5mm

Supply Current

0.5mA

COO (Country of Origin):
CN
The CUI devices condenser microphone components with an omnidirectional directivity with a mounting type of pin mount and a sensitivity of -42 dB. The rated operating voltage is 1.5 V.

Output impedance is 1.5 kΩ

Material is Al
