Souriau Sunbank by Eaton Male Crimp Circular Connector Contact, Contact Size 16, Wire Size 16AWG, 20 AWG
- RS Stock No.:
- 912-0605
- Distrelec Article No.:
- 304-44-813
- Mfr. Part No.:
- RM16M23GE1K
- Manufacturer:
- Souriau Sunbank by Eaton

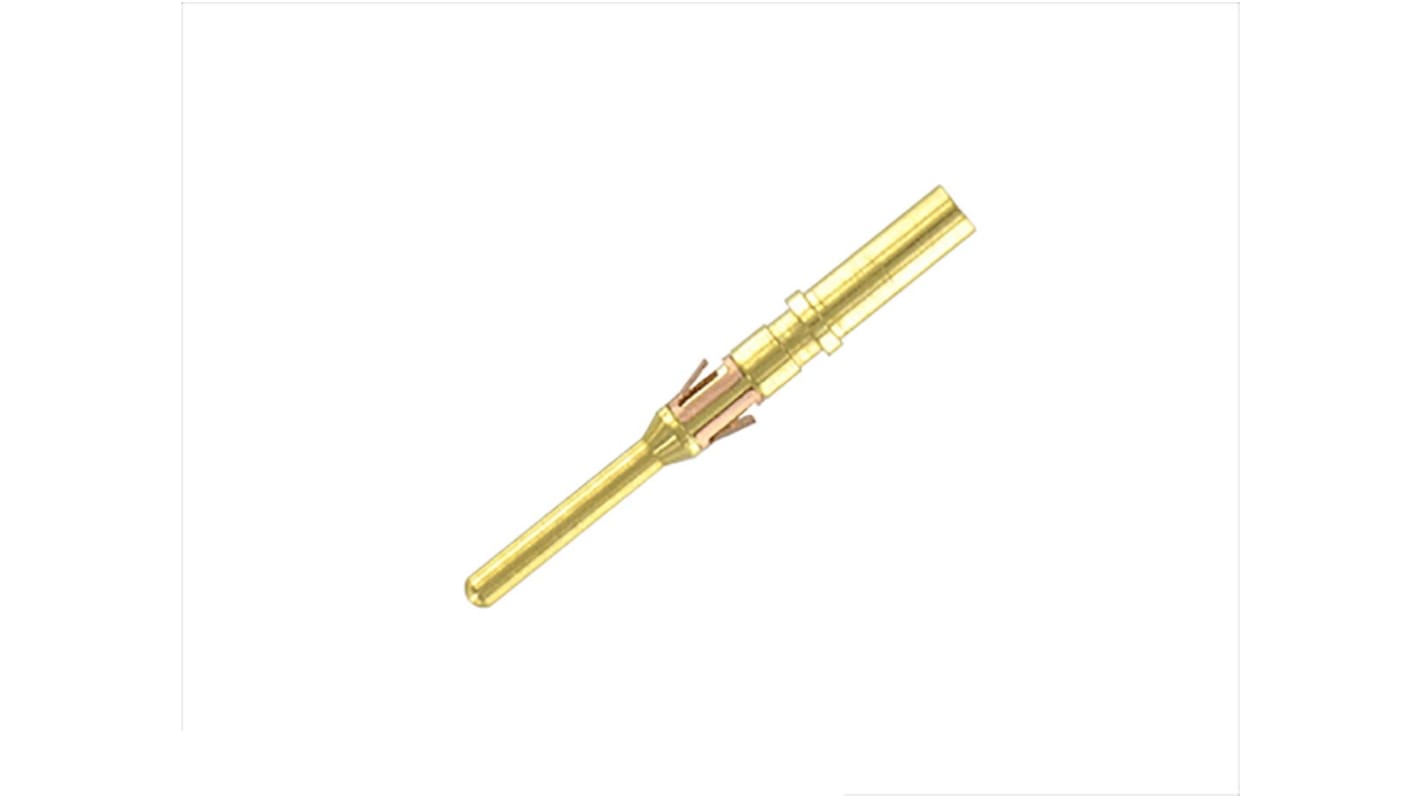

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 50 units)*
PHP3,643.20
(exc. VAT)
PHP4,080.40
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Pack* |
|---|---|---|
| 50 - 50 | PHP72.864 | PHP3,643.20 |
| 100 - 200 | PHP70.678 | PHP3,533.90 |
| 250 + | PHP68.557 | PHP3,427.85 |
*price indicative
- RS Stock No.:
- 912-0605
- Distrelec Article No.:
- 304-44-813
- Mfr. Part No.:
- RM16M23GE1K
- Manufacturer:
- Souriau Sunbank by Eaton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Souriau Sunbank by Eaton | |
| Product Type | Circular Connector Contact | |
| Gender | Male | |
| Contact Size | 16 | |
| Current | 13A | |
| Wire Size | 16, 20AWG | |
| Series | RM | |
| For Use With | MBG Series Connector | |
| Contact Type | Machined | |
| Length | 26.9mm | |
| Contact Plating | Gold over Nickel | |
| Voltage | 750V ac | |
| Termination Type | Crimp | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Maximum Contact Resistance | 3mΩ | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Souriau Sunbank by Eaton | ||
Product Type Circular Connector Contact | ||
Gender Male | ||
Contact Size 16 | ||
Current 13A | ||
Wire Size 16, 20AWG | ||
Series RM | ||
For Use With MBG Series Connector | ||
Contact Type Machined | ||
Length 26.9mm | ||
Contact Plating Gold over Nickel | ||
Voltage 750V ac | ||
Termination Type Crimp | ||
Contact Material Brass | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Maximum Contact Resistance 3mΩ | ||
Standards/Approvals No | ||
Souriau Railway RC/RM Machined Contacts
From Souriau, this machined contact is designed with railway connector applications in mind. With a highly conductive copper alloy body, the contact also features a low contact resistance and excellent contact retention.
Features and Benefits:
• Gold Plated Contact
• Locking Spring
• Individual withdrawal force of 0.55N
• Contact Resistance of ≤ 3 MΩ
