MPN

RS PRO, 1 kΩ 1 kW Wirewound Chassis Mount Resistor ±5 %

RS Stock No.:: 185-2365
Manufacturer:: RS PRO

RS PRO, 1 kΩ 1 kW Wirewound Chassis Mount Resistor ±5 %

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

PHP8,655.55

(exc. VAT)

PHP9,694.22

(inc. VAT)

FREE delivery for orders over ₱5,000.00

In Stock

7 unit(s) ready to ship from another location
Plus 1 unit(s) shipping from October 01, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	PHP8,655.55
5 - 9	PHP8,395.88
10 - 19	PHP8,144.00
20 +	PHP7,899.68

*price indicative

Sponsored

RS Stock No.:: 185-2365
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Chassis Mount Resistor
	Resistance	1kΩ
	Power Rating	1kW
	Series	RS PRO
	Package/Case	Aluminium
	Temperature Coefficient	±200 ppm/°C
	Tolerance	±5 %
	Technology	Wirewound
	Automotive Standard	No
	Termination Style	Wire
	Minimum Operating Temperature	-25°C
	Overall Length	400mm
	Maximum Operating Temperature	250°C
	Standards/Approvals	RoHS, UL
	Overall Width	60mm
	Overall Height	30mm

	Select all
	Brand RS PRO
	Product Type Chassis Mount Resistor
	Resistance 1kΩ
	Power Rating 1kW
	Series RS PRO
	Package/Case Aluminium
	Temperature Coefficient ±200 ppm/°C
	Tolerance ±5 %
	Technology Wirewound
	Automotive Standard No
	Termination Style Wire
	Minimum Operating Temperature -25°C
	Overall Length 400mm
	Maximum Operating Temperature 250°C
	Standards/Approvals RoHS, UL
	Overall Width 60mm
	Overall Height 30mm

COO (Country of Origin):: IN

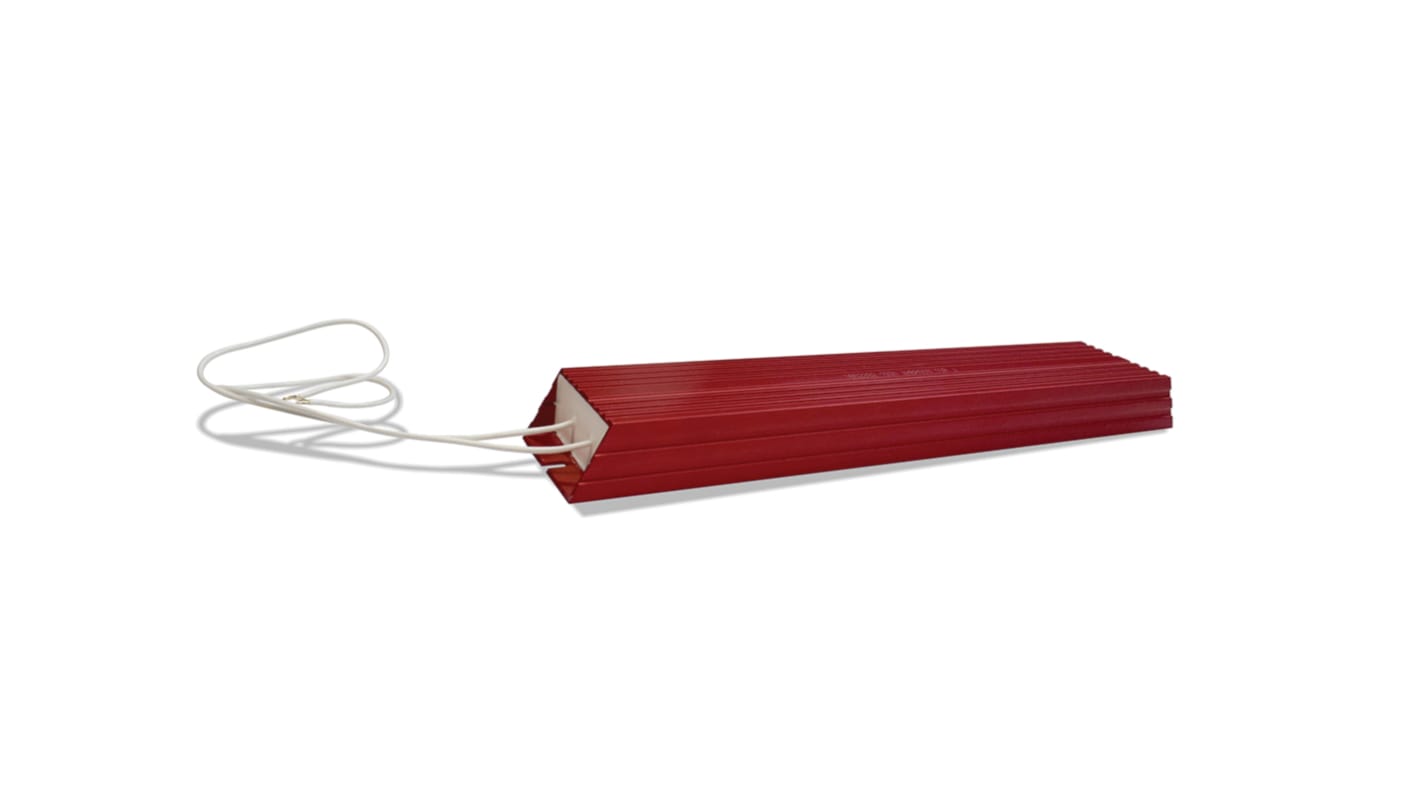

RS PRO Metal Clad Braking Resistor

The RS PRO R1000 series resistor has a resistance of 1kohm and 1kW power rating. It has an aluminium housing with ±5% tolerance. This metal encased braking resistor is designed for direct heat sink attachment.

Features and Benefits

• Heat sink mountable for increased power dissipation

• High power density

• Operating temperature coefficient ranges between -200ppm/°C and 200ppm/°C

• Operating temperature is between -25°C and 250°C

• Wire lead terminal

Certifications

• UL approved

• RoHS compliant
