RS PRO, 47 Ω 1 kW Wirewound Chassis Mount Resistor ±5 %
- RS Stock No.:
- 185-2360
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP9,403.76
(exc. VAT)
PHP10,532.21
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 26 unit(s) ready to ship from another location
- Plus 12 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from September 30, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP9,403.76 |
| 5 - 9 | PHP9,121.65 |
| 10 - 19 | PHP8,848.03 |
| 20 + | PHP8,582.57 |
*price indicative
Sponsored
- RS Stock No.:
- 185-2360
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Resistance | 47Ω | |
| Product Type | Chassis Mount Resistor | |
| Power Rating | 1kW | |
| Series | RS PRO | |
| Package/Case | Aluminium | |
| Tolerance | ±5 % | |
| Temperature Coefficient | ±200 ppm/°C | |
| Technology | Wirewound | |
| Automotive Standard | No | |
| Termination Style | Wire | |
| Minimum Operating Temperature | -25°C | |
| Overall Length | 400mm | |
| Maximum Operating Temperature | 250°C | |
| Standards/Approvals | UL, RoHS | |
| Overall Width | 60mm | |
| Overall Height | 30mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Resistance 47Ω | ||
Product Type Chassis Mount Resistor | ||
Power Rating 1kW | ||
Series RS PRO | ||
Package/Case Aluminium | ||
Tolerance ±5 % | ||
Temperature Coefficient ±200 ppm/°C | ||
Technology Wirewound | ||
Automotive Standard No | ||
Termination Style Wire | ||
Minimum Operating Temperature -25°C | ||
Overall Length 400mm | ||
Maximum Operating Temperature 250°C | ||
Standards/Approvals UL, RoHS | ||
Overall Width 60mm | ||
Overall Height 30mm | ||
- COO (Country of Origin):
- IN

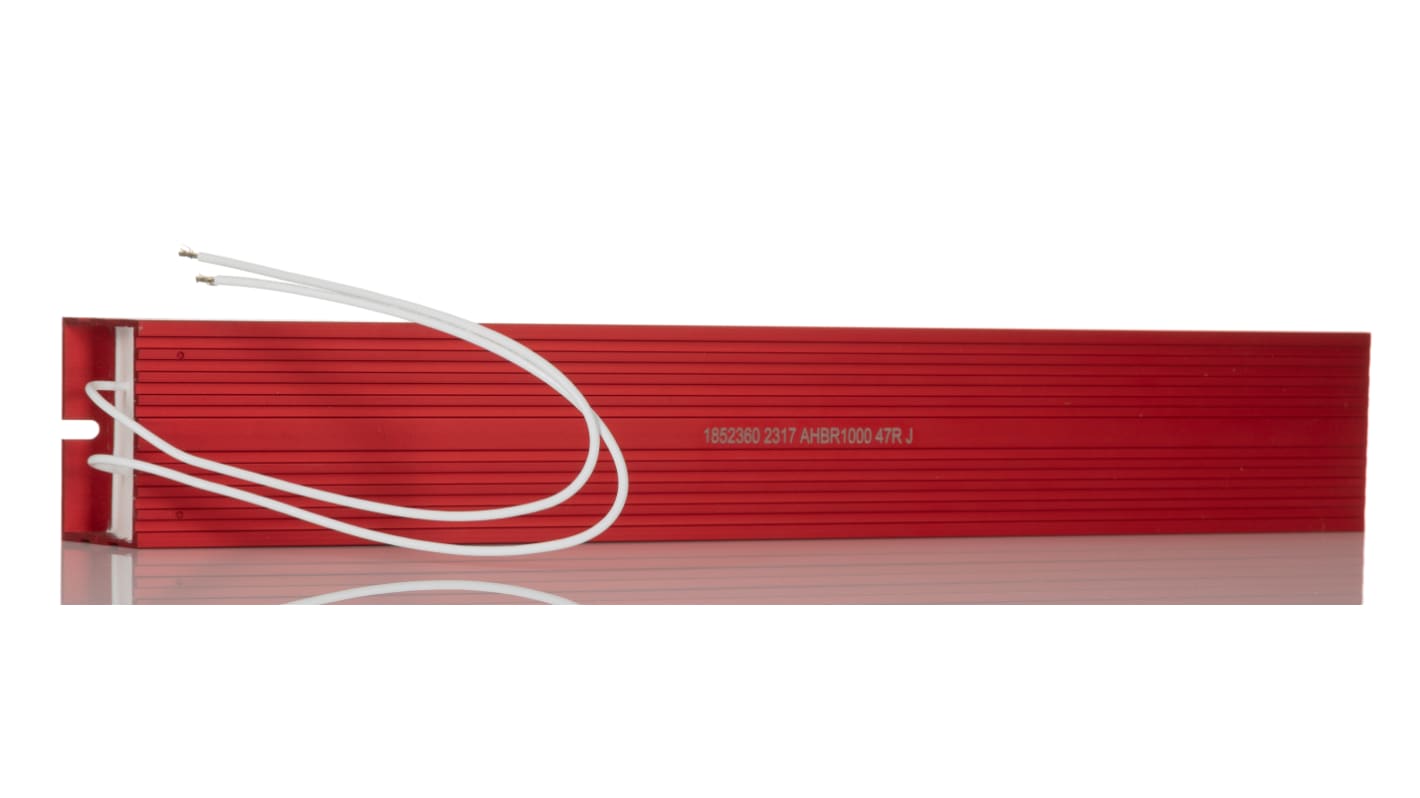

RS PRO 1 kW Wirewound Metal Clad Braking Resistor, 47Ω
RS PRO 1 kW Wire wound Metal Clad Braking Resistor, 47Ω;An Aluminium housed braking resistor with a resistance of 47Ω designed for the dissipation of energy in braking systems.;Intended for direct heatsink mounting for increased power dissipation the braking resistor features a high power density and a wire wound design to maximise performance.;The wire wound braking resistor is ideal for use in and around high temperature applications with a temperature operating range of -25°C to 250°C and is connected using the wire lead terminals for easy installation.
Features and Benefits
47Ω Braking resistor;1kW power;Wire wound;Aluminium housed;High power density;High temperature capability of -25°C and 250°C;Wire lead terminals
Standards and Approvals: UL
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
