Toshiba 2SC4213-A(TE85L,F) Transistor, 300 mA NPN, 20 V, 3-Pin SOT-323
- RS Stock No.:
- 890-2660
- Mfr. Part No.:
- 2SC4213-A(TE85L,F)
- Manufacturer:
- Toshiba

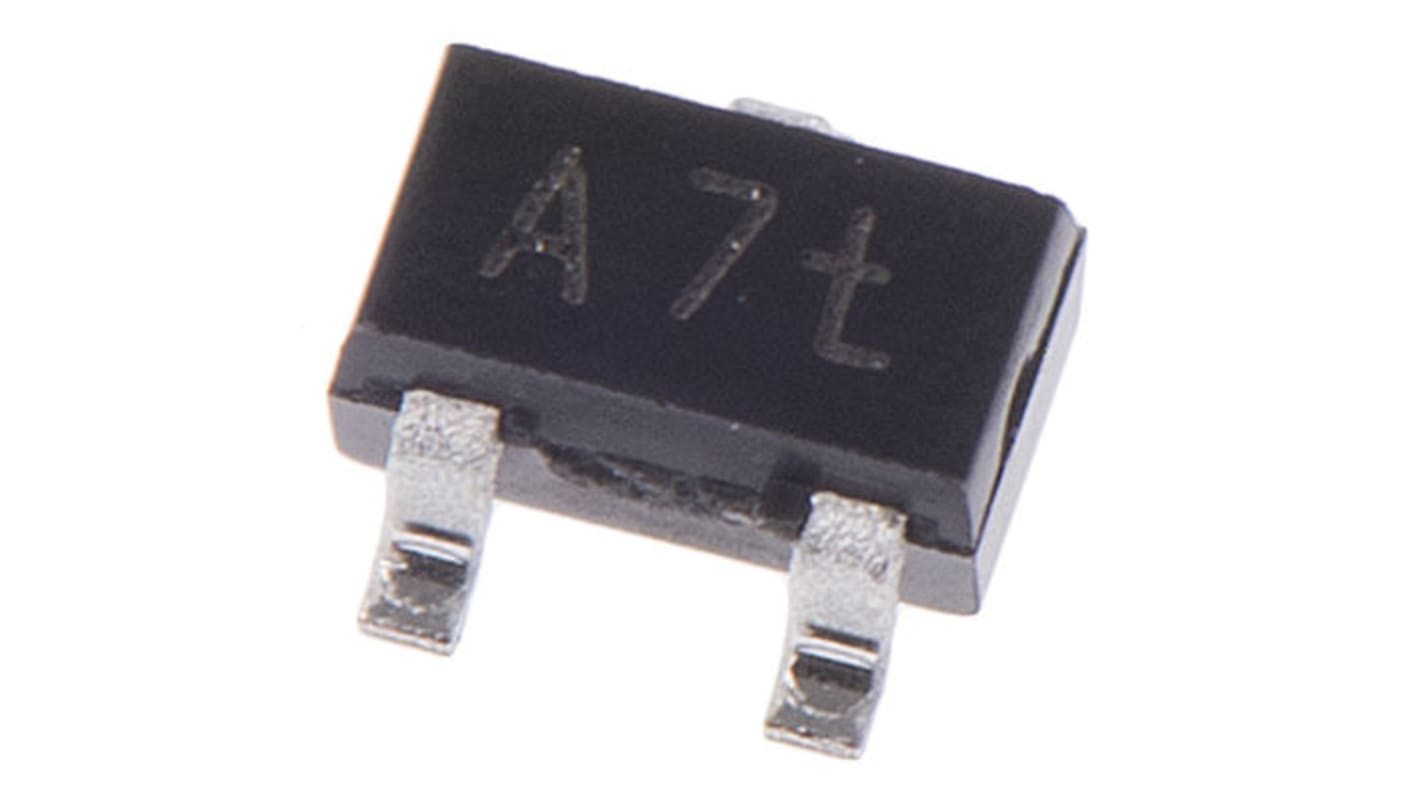

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 25 units)*
PHP290.70
(exc. VAT)
PHP325.575
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 25 unit(s) ready to ship from another location
- Plus 2,050 unit(s) shipping from May 07, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 25 - 25 | PHP11.628 | PHP290.70 |
| 50 - 100 | PHP10.467 | PHP261.68 |
| 125 - 225 | PHP9.516 | PHP237.90 |
| 250 - 475 | PHP8.716 | PHP217.90 |
| 500 + | PHP8.05 | PHP201.25 |
*price indicative
- RS Stock No.:
- 890-2660
- Mfr. Part No.:
- 2SC4213-A(TE85L,F)
- Manufacturer:
- Toshiba
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 300mA | |
| Maximum Collector Emitter Voltage Vceo | 20V | |
| Package Type | SOT-323 | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | 50V | |
| Maximum Transition Frequency ft | 30MHz | |
| Maximum Power Dissipation Pd | 100mW | |
| Maximum Emitter Base Voltage VEBO | 25V | |
| Transistor Polarity | NPN | |
| Minimum DC Current Gain hFE | 200 | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Length | 2mm | |
| Height | 1.05mm | |
| Series | 2SC4213 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 300mA | ||
Maximum Collector Emitter Voltage Vceo 20V | ||
Package Type SOT-323 | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO 50V | ||
Maximum Transition Frequency ft 30MHz | ||
Maximum Power Dissipation Pd 100mW | ||
Maximum Emitter Base Voltage VEBO 25V | ||
Transistor Polarity NPN | ||
Minimum DC Current Gain hFE 200 | ||
Pin Count 3 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Length 2mm | ||
Height 1.05mm | ||
Series 2SC4213 | ||
Automotive Standard No | ||
