The SBS connector family is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits. This is of particular importance in applications where DC voltages exceed 30 volts and can be health threatening. Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS®75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS®75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).

Touch Safe Interface
Can safely be used in through panel applications
Minimizes potential contact with live circuits
Wire-to-Wire and Wire-to-Board Configurations
Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the
One Piece Housing

Units	Per Unit
1 - 24	PHP757.82
25 - 49	PHP735.08
50 - 99	PHP713.03
100 +	PHP691.64

Select all	Attribute	Value
	Brand	Anderson Power Products
	Gender	Male
	Number of Contacts	2
	Current Rating	110A
	Voltage Rating	600 V
	Colour	Grey
	Series	SBS

	Select all
	Brand Anderson Power Products
	Gender Male
	Number of Contacts 2
	Current Rating 110A
	Voltage Rating 600 V
	Colour Grey
	Series SBS

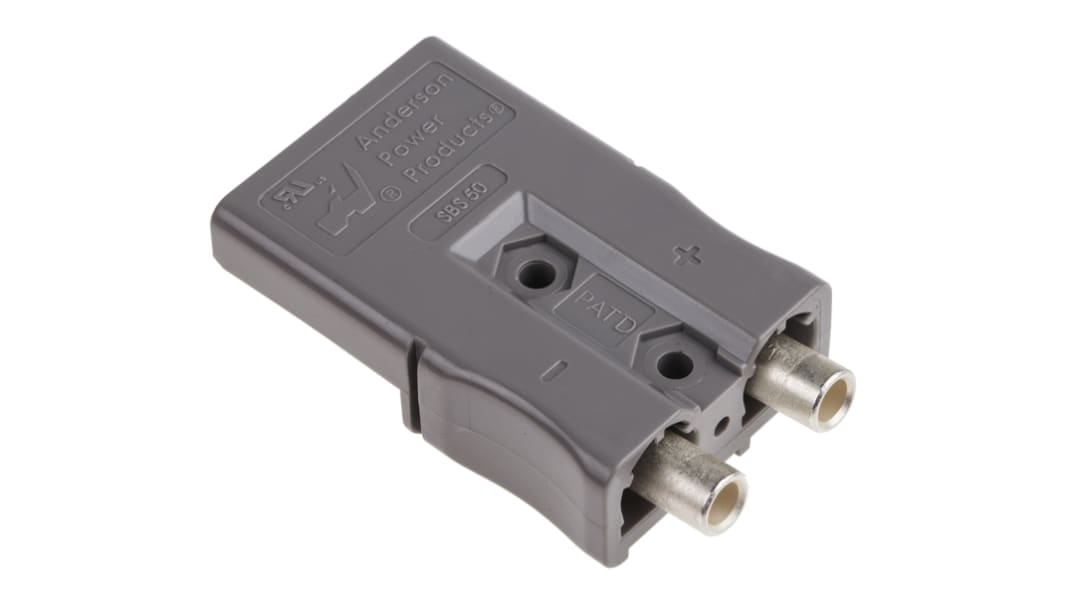

Anderson Power Products, SBS Series Male 2 Way Battery Connector, 110A, 600 V
