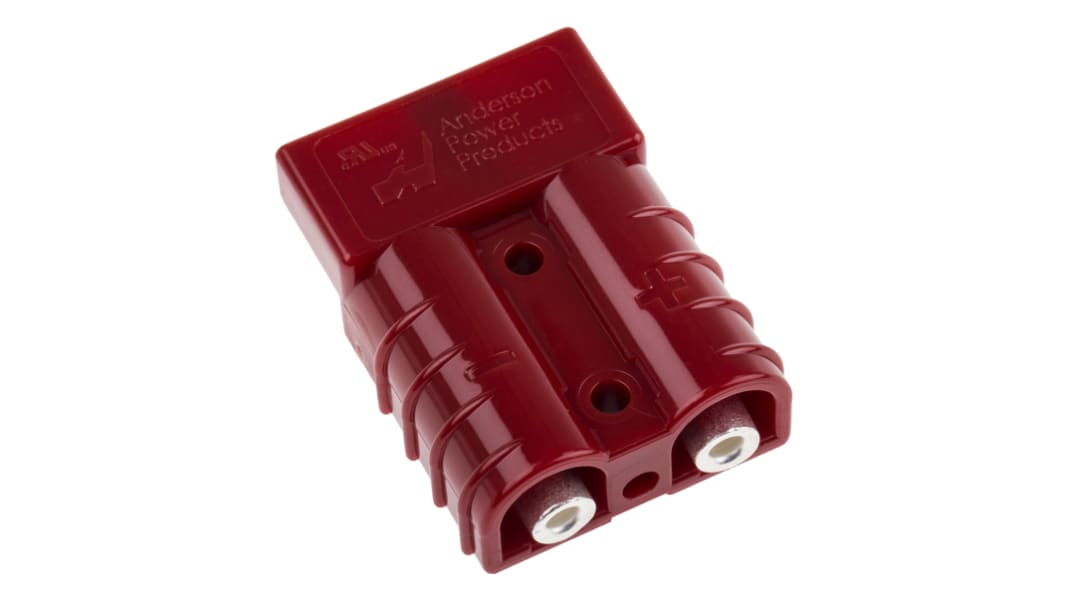

Anderson Power Products, 50 Series 2 Way Male Battery Connector, Straight, Cable, 600V, 50A
- RS Stock No.:
- 162-4568
- Distrelec Article No.:
- 301-84-796
- Mfr. Part No.:
- 6331G2
- Manufacturer:
- Anderson Power Products
Bulk discount available
Subtotal (1 unit)*
PHP453.71
(exc. VAT)
PHP508.16
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 915 unit(s) shipping from April 27, 2026
- Plus 600 unit(s) shipping from May 08, 2026
- Plus 200 unit(s) shipping from July 17, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | PHP453.71 |
| 25 - 49 | PHP440.09 |
| 50 - 99 | PHP426.90 |
| 100 + | PHP414.09 |
*price indicative
- RS Stock No.:
- 162-4568
- Distrelec Article No.:
- 301-84-796
- Mfr. Part No.:
- 6331G2
- Manufacturer:
- Anderson Power Products
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Anderson Power Products | |
| Product Type | Battery Connector | |
| Number of Contacts | 2 | |
| Mount Type | Cable | |
| Current | 50A | |
| Housing Material | Polycarbonate | |
| Orientation | Straight | |
| Contact Material | Copper Alloy | |
| Connector Gender | Male | |
| Contact Plating | Silver | |
| Voltage | 600V | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -20°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Series | 50 | |
| Select all | ||
|---|---|---|
Brand Anderson Power Products | ||
Product Type Battery Connector | ||
Number of Contacts 2 | ||
Mount Type Cable | ||
Current 50A | ||
Housing Material Polycarbonate | ||
Orientation Straight | ||
Contact Material Copper Alloy | ||
Connector Gender Male | ||
Contact Plating Silver | ||
Voltage 600V | ||
Termination Type Solder | ||
Minimum Operating Temperature -20°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Series 50 | ||
The smallest SB® housings work with wire contacts up to 6 AWG [10 mm²] as well as PCB, and busbar contacts. Genderless design mates with itself. Mechanical keys are colour coded.
Note
The SB50 series has bee re-tested under the UL standard and due to this it has been up-rated to 120A. The housing will still state SB50 and show 50A rating until further notice. Please refer to the new datasheet for details.
