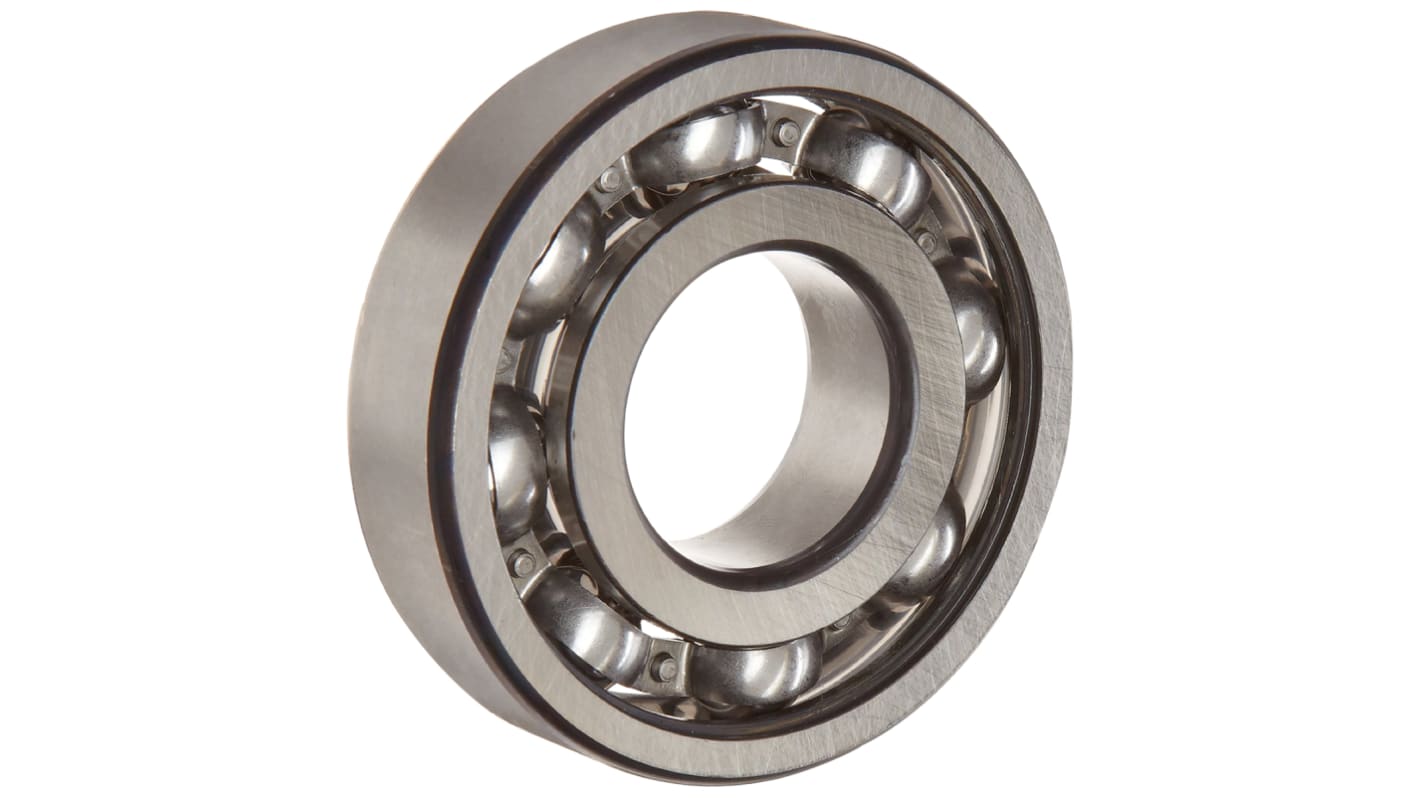

SKF 6009/C3 1 Row Ball Bearing - 45 mm ID, 75 mm OD
- RS Stock No.:
- 144-0832
- Mfr. Part No.:
- 6009/C3
- Manufacturer:
- SKF
Bulk discount available
Subtotal (1 unit)*
PHP1,367.48
(exc. VAT)
PHP1,531.58
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 12 | PHP1,367.48 |
| 13 - 24 | PHP1,326.44 |
| 25 + | PHP1,286.67 |
*price indicative
- RS Stock No.:
- 144-0832
- Mfr. Part No.:
- 6009/C3
- Manufacturer:
- SKF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 45mm | |
| Outside Diameter | 75mm | |
| Race Width | 16mm | |
| Race Material | Steel | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 14.6kN | |
| Dynamic Load Rating | 22.1kN | |
| Series | 0 Extra Light | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 12000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 45mm | ||
Outside Diameter 75mm | ||
Race Width 16mm | ||
Race Material Steel | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 14.6kN | ||
Dynamic Load Rating 22.1kN | ||
Series 0 Extra Light | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 12000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
SKF Ball Bearing, Deep-Groove Bearing Type, Plain Race, 45mm ID, 75mm OD - 6009/C3
Use this SKF ball bearing to reduce friction in moving parts of your industrial equipment. It has deep raceway grooves that are precision-engineered to support the rolling parts, offering more stability and making it suitable for handling axial and radial loads in both directions. Made entirely of steel, this durable unit resists corrosion and impact, so it's a practical choice for harsh environments. It has an internal diameter of 45mm, making it useful for medium-sized shafts.
Features & Benefits
• Static load rating of 22.1kN and dynamic load rating of 14.6kN for use with heavy-duty applications
• Light weight of 240g means it's easy to handle during installation
• Smooth 16mm race allows for frictionless running of the 8 balls
• Open-ended design allows for easy inspection and lubrication during operation
Applications
• Machine tools
• Material handling equipment
• Industrial conveyors
Can I use this ball bearing for high-speed applications?
With a limiting speed of 12,000r/min and a reference speed of 20,000r/min, this unit is a practical choice for fast-paced industrial applications.
Can I repair this bearing?
When this bearing becomes heavily worn or damaged, it's best to replace it instead of trying to repair it to ensure the optimal performance of your equipment.
