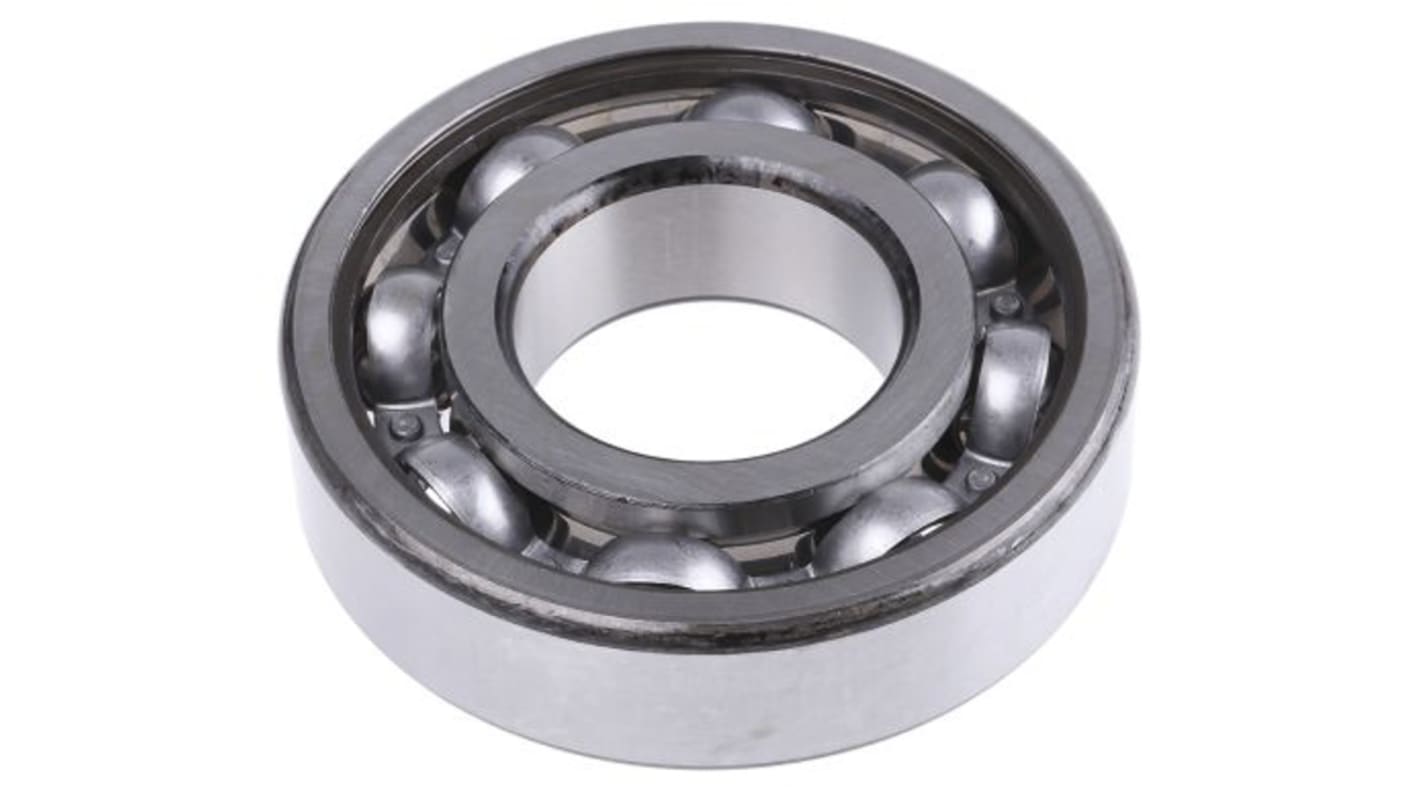

SKF 6009 1 Row Ball Bearing - 45 mm ID, 75 mm OD
- RS Stock No.:
- 286-7754
- Mfr. Part No.:
- 6009
- Manufacturer:
- SKF
Bulk discount available
Subtotal (1 unit)*
PHP1,167.80
(exc. VAT)
PHP1,307.94
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from February 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | PHP1,167.80 |
| 25 - 49 | PHP1,132.78 |
| 50 + | PHP1,098.81 |
*price indicative
- RS Stock No.:
- 286-7754
- Mfr. Part No.:
- 6009
- Manufacturer:
- SKF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 45 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 75 mm | |
| Race Width | 16mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 14.6kN | |
| Dynamic Load Rating | 22.1kN | |
| Series | 6009 | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 20000rpm | |
| Bearing Type | Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 45 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 75 mm | ||
Race Width 16mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 14.6kN | ||
Dynamic Load Rating 22.1kN | ||
Series 6009 | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 20000rpm | ||
Bearing Type Deep Groove Ball | ||
Race Type Plain | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
SKF Deep Groove Ball Bearing, 45mm Inside Diameter, 16mm Race Width - 6009
This deep groove ball bearing, designed as a single row component, comes in dimensions of 45mm inside diameter, 75mm outside diameter, and a race width of 16mm. It features an open type sealing arrangement, ensuring easy accessibility for maintenance and lubrication. Manufactured from durable steel, this bearing is built to perform in various demanding applications.
Features & Benefits
• Offers a dynamic load rating of 22.1kN for high-performance usage
• Static load rating of 14.6kN to support heavier loads effectively
• Constructed from steel for improved strength and durability
• Open type design allows for easy lubrication and maintenance
• Suitable for high-speed operations with a limiting speed of 20,000 r/min
Applications
• Used in automation systems requiring high reliability
• Ideal for electronic equipment needing compact components
• Can be found in electric motors for efficient operation
• Suitable for mechanical assemblies demanding precise performance
• Effective in various industrial machinery for consistent functionality
What is the significance of the open type design in this bearing?
The open type design allows for easier access to lubrication points, facilitating straightforward maintenance and ensuring optimal performance without complex disassembly.
How does the dynamic load rating influence operational efficiency?
The dynamic load rating indicates the maximum load the bearing can sustain during motion. A higher rating ensures durability and reliability in high-impact applications, reducing the frequency of failures.
What role does the CN clearance play in installation?
The CN clearance provides a standard fit between the bearing and housing, accommodating thermal expansion and contraction, thus ensuring consistent performance under varying conditions.
