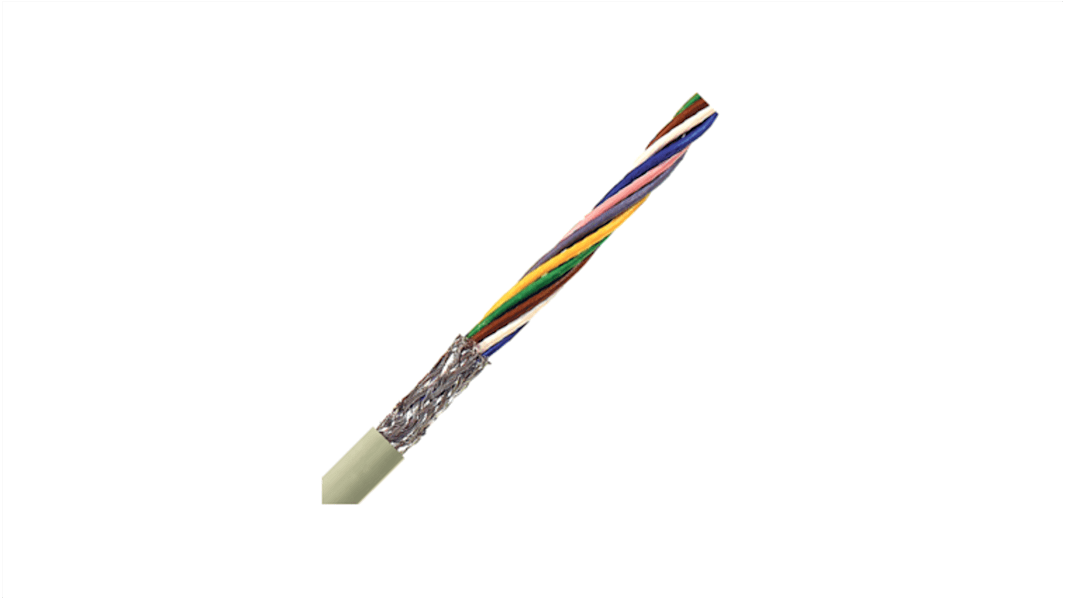

Lapp UNITRONIC LiYCY Series Data Cable 7 Pairs 7 Cores 0.5 mm² 100 m Grey Sheath Polyvinyl Chloride
- RS Stock No.:
- 491-8747
- Distrelec Article No.:
- 301-80-434
- Mfr. Part No.:
- 0034607
- Manufacturer:
- Lapp
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 100 metres)*
PHP28,608.18
(exc. VAT)
PHP32,041.16
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 10 | PHP28,608.18 | PHP286.082 |
| 11 + | PHP27,749.93 | PHP277.499 |
*price indicative
- RS Stock No.:
- 491-8747
- Distrelec Article No.:
- 301-80-434
- Mfr. Part No.:
- 0034607
- Manufacturer:
- Lapp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Data Cable | |
| Number of Pairs | 7 | |
| Cross Sectional Area | 0.5 mm² | |
| Number of Cores | 7 | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 7.6mm | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE, RoHS | |
| Screened/Unscreened | Screened | |
| Number of Strands | 16 | |
| Voltage | 250V | |
| Series | UNITRONIC LiYCY | |
| Conductor Material | Bare Copper | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | |
| Size of Strands | 0.20mm | |
| Core Strands | 16 x 0.20mm | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Data Cable | ||
Number of Pairs 7 | ||
Cross Sectional Area 0.5 mm² | ||
Number of Cores 7 | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 7.6mm | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE, RoHS | ||
Screened/Unscreened Screened | ||
Number of Strands 16 | ||
Voltage 250V | ||
Series UNITRONIC LiYCY | ||
Conductor Material Bare Copper | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | ||
Size of Strands 0.20mm | ||
Core Strands 16 x 0.20mm | ||
- COO (Country of Origin):
- DE
LAPP Data Cable, PVC Sheath, 7.6mm Outer Diameter - UNITRONIC LiYCY Series - 0034607
Keep your system's signals flowing despite heavy electrical interference with this data cable from LAPP. Its tin-plated copper braiding shields data against high EMI levels, dialling down disruption from electrical noise. With its copper conductors, the lead gets information where it's going, every time. Wiring is short work, thanks to the product's colour-coded cores. The cable's 7.6mm outer diameter slips right through low-profile spots, removing the hassle of dealing with awkward areas.
Features & Benefits
• Handles surge voltages up to 1.5kV, minimising the risk of hardware damage from electrical faults
• Flame-resistant PVC jacket pushes through harsh industrial conditions
• Safe to use in temperatures between -40°C and +70°C for reliable performance in extreme environments
Applications
• Glass manufacturing
• Control devices
• Material handling
• Factories
What are stranded wires and why should I use them?
Stranded wires wrap fine metal strands together to form conductor cores, providing plenty of flexibility to connect components in busy cabinets.
Unitronic® LiYCY cable
From Lapp, the Unitronic LiYCY series of data cables are DIN colour coded, and ideal for low frequency applications. These data or signal cables are used for computers and electronic control devices, and are screened to minimize electrical interference. The cable also features small dimensions and outer diameter, which makes it suitable for fixed installations where space saving is a concern.
The Unitronic LiYCY cable is flame retardant and suitable for use in dry or damp rooms.
Features and Benefits
• Core insulation with PVC base
• Cores stranded in layers
• DIN colour code
• Shield braid made from tinned wires
• Transparent outer sheath made from special PVC-based mixture
• Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)
• Operating temperature with occasional flexing: -5°C to +70°C
• Operating temperature with fixed installation: -40°C to +80°C
Applications
This CY multi-conductor cable is suitable for a variety of applications, such as;
• RS 232
• Process control
• Communications, signal & control
• Signal & broadcast
Accessories
Unitronic LiYCY cables should be used with accessories that mach its capabilities, and as such Lapp supplies a series of low-resistance screen cable glands.
• 839-5331 is an M16 Skintop EMC Cable Gland
• 839-5340 is an M20 Skintop EMC Cable Gland
• 839-5343 is an M25 Skintop EMC Cable Gland
• 839-5347 is an M32 Skintop EMC Cable Gland
• 839-5356 is an M40 Skintop EMC Cable Gland
• 839-5359 is an M50 Skintop EMC Cable Gland
Standards
VDE 482, VDE 0472, IEC 332.1 and DIN 47100 colour code
