Lapp UNITRONIC LiYCY Series Data Cable, 4 Pairs, 0.5 mm², 100 m, Grey Sheath Polyvinyl Chloride
- RS Stock No.:
- 491-8416
- Distrelec Article No.:
- 304-01-039
- Mfr. Part No.:
- 0034604
- Manufacturer:
- Lapp
Subtotal (1 reel of 100 metres)*
PHP15,513.03
(exc. VAT)
PHP17,374.59
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 28 unit(s) shipping from August 10, 2026
- Plus 12 unit(s) shipping from August 21, 2026
- Plus 9 unit(s) shipping from September 04, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | PHP15,513.03 | PHP155.13 |
*price indicative
- RS Stock No.:
- 491-8416
- Distrelec Article No.:
- 304-01-039
- Mfr. Part No.:
- 0034604
- Manufacturer:
- Lapp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Data Cable | |
| Number of Pairs | 4 | |
| Cross Sectional Area | 0.5 mm² | |
| Number of Cores | 4 | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 6.3mm | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE, RoHS | |
| Screened/Unscreened | Screened | |
| Number of Strands | 16 | |
| Voltage | 250V | |
| Series | UNITRONIC LiYCY | |
| Conductor Material | Bare Copper | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | |
| Size of Strands | 0.20mm | |
| Core Strands | 16 x 0.20mm | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Data Cable | ||
Number of Pairs 4 | ||
Cross Sectional Area 0.5 mm² | ||
Number of Cores 4 | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 6.3mm | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE, RoHS | ||
Screened/Unscreened Screened | ||
Number of Strands 16 | ||
Voltage 250V | ||
Series UNITRONIC LiYCY | ||
Conductor Material Bare Copper | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | ||
Size of Strands 0.20mm | ||
Core Strands 16 x 0.20mm | ||
- COO (Country of Origin):
- DE

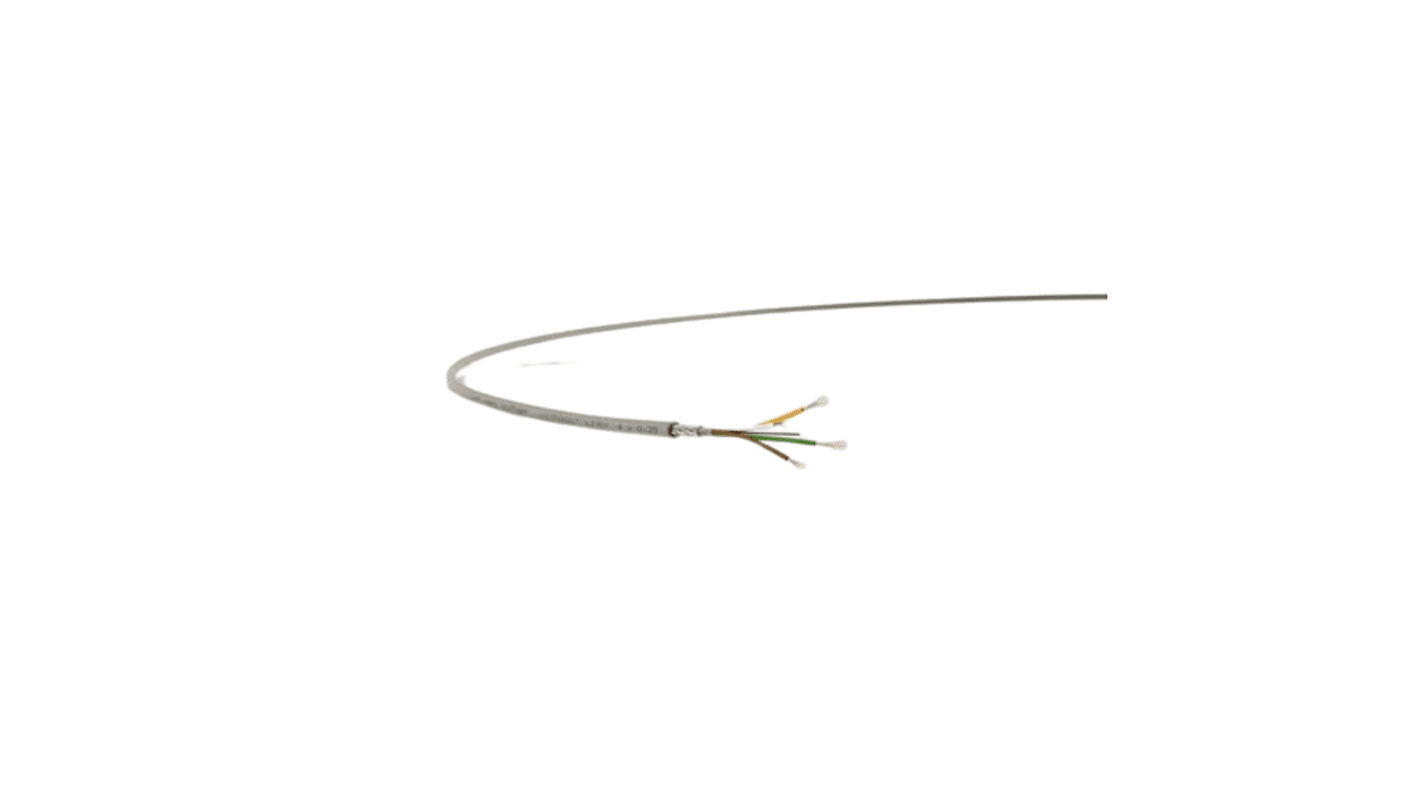

LAPP Screened Multicore Data Cable, 20AWG, 100m Length - UNITRONIC LiYCY Series - 34604
This multicore cable from LAPP lets you send and receive data signals in industrial control systems. It's designed for low-frequency applications and its wires are colour-coded according to DIN standards. It's a CY cable, which means that it's flexible and screened with tinned copper braids to provide reliable protection against electromagnetic and radio frequency interference (EMI and RFI). Its polyvinyl chloride (PVC) housing provides impact and abrasion resistance for long-term performance. This material can also withstand water and moisture, making the cable suitable for use in humid environments.
Features & Benefits
• Cable length of 100m can be easily cut to size to suit your needs
• Copper conductors for a reliable connection
• Wide operating temperature range of -40°C to +80°C for safe industrial use
• Voltage rating of 250V for compatibility with low-voltage applications
Applications
• Office equipment
• Industrial computer systems
• Control and instrumentation technology
What's the minimum bending radius of this cable?
The minimum bending radius of this cable is 15 times its outer diameter. This means it's a flexible choice for use in setups where space is at a premium.
