Siemens PB ECOFAST Series Multipair Cable, 3 Pairs, 1.5 mm², 20 m, Purple Sheath Polyethylene
- RS Stock No.:
- 265-8885
- Mfr. Part No.:
- 6XV18602P
- Manufacturer:
- Siemens
Subtotal (1 reel of 20 metres)*
PHP14,728.29
(exc. VAT)
PHP16,495.68
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 03, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | PHP14,728.29 | PHP736.415 |
*price indicative
- RS Stock No.:
- 265-8885
- Mfr. Part No.:
- 6XV18602P
- Manufacturer:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Multipair Cable | |
| Number of Pairs | 3 | |
| Cross Sectional Area | 1.5 mm² | |
| Cable Length | 20m | |
| Jacket Colour | Purple | |
| Outside Diameter | 11 mm | |
| Minimum Operating Temperature | -30°C | |
| Conductor Type | Stranded | |
| Jacket Material | Polyethylene | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | UL, RoHS, EAC, REACH | |
| Core Strands | 6 | |
| Fire Behaviour | Flame Resistant | |
| Series | PB ECOFAST | |
| Voltage | 600 V | |
| Conductor Material | Tin Copper Wire | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Multipair Cable | ||
Number of Pairs 3 | ||
Cross Sectional Area 1.5 mm² | ||
Cable Length 20m | ||
Jacket Colour Purple | ||
Outside Diameter 11 mm | ||
Minimum Operating Temperature -30°C | ||
Conductor Type Stranded | ||
Jacket Material Polyethylene | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals UL, RoHS, EAC, REACH | ||
Core Strands 6 | ||
Fire Behaviour Flame Resistant | ||
Series PB ECOFAST | ||
Voltage 600 V | ||
Conductor Material Tin Copper Wire | ||
- COO (Country of Origin):
- DE

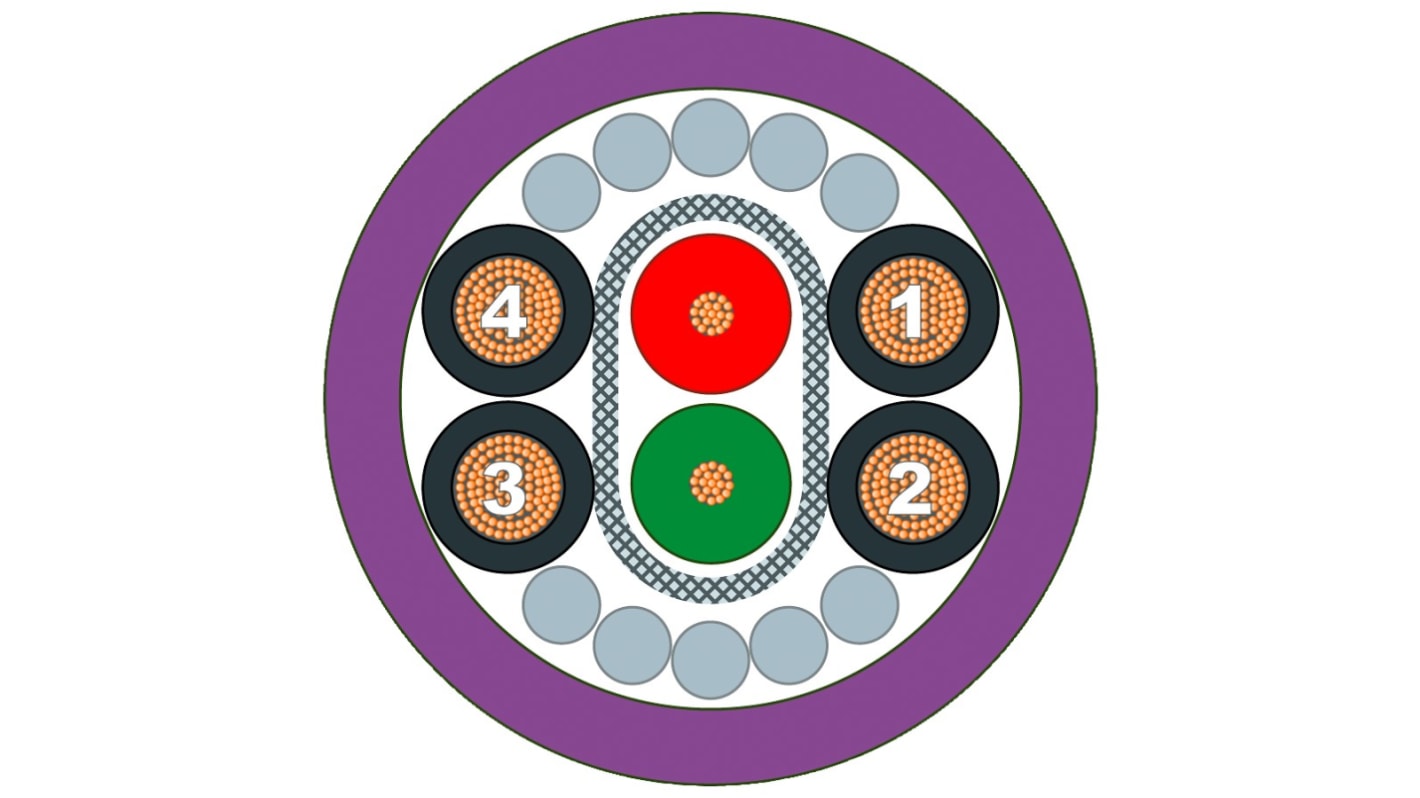

The Siemens PROFIBUS ECOFAST hybrid cable GP is a trailable cable with 4x Cu (1.5mm2) and 2xCU (0.64 mm) cores. It is shielded cable.
Shield resistance per length maximum :15 Ω/km
Insulation resistance coefficient: 20 GΩ·m
Operating voltage maximum: 80 V
