Siemens PB ECOFAST Series Multipair Cable, 3 Pairs, 1.5 mm², 10 m, Purple Sheath Polyethylene
- RS Stock No.:
- 265-8878
- Mfr. Part No.:
- 6XV18307BN10
- Manufacturer:
- Siemens
Subtotal (1 unit)*
PHP14,135.08
(exc. VAT)
PHP15,831.29
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | PHP14,135.08 |
*price indicative
- RS Stock No.:
- 265-8878
- Mfr. Part No.:
- 6XV18307BN10
- Manufacturer:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Number of Pairs | 3 | |
| Product Type | Multipair Cable | |
| Cross Sectional Area | 1.5 mm² | |
| Cable Length | 10m | |
| Jacket Colour | Purple | |
| Outside Diameter | 11 mm | |
| Jacket Material | Polyethylene | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, RoHS, REACH, EAC | |
| Conductor Material | Tin Copper Wire | |
| Fire Behaviour | Flame Resistant | |
| Series | PB ECOFAST | |
| Core Strands | 6 | |
| Voltage | 100 V | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Number of Pairs 3 | ||
Product Type Multipair Cable | ||
Cross Sectional Area 1.5 mm² | ||
Cable Length 10m | ||
Jacket Colour Purple | ||
Outside Diameter 11 mm | ||
Jacket Material Polyethylene | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, RoHS, REACH, EAC | ||
Conductor Material Tin Copper Wire | ||
Fire Behaviour Flame Resistant | ||
Series PB ECOFAST | ||
Core Strands 6 | ||
Voltage 100 V | ||
- COO (Country of Origin):
- DE

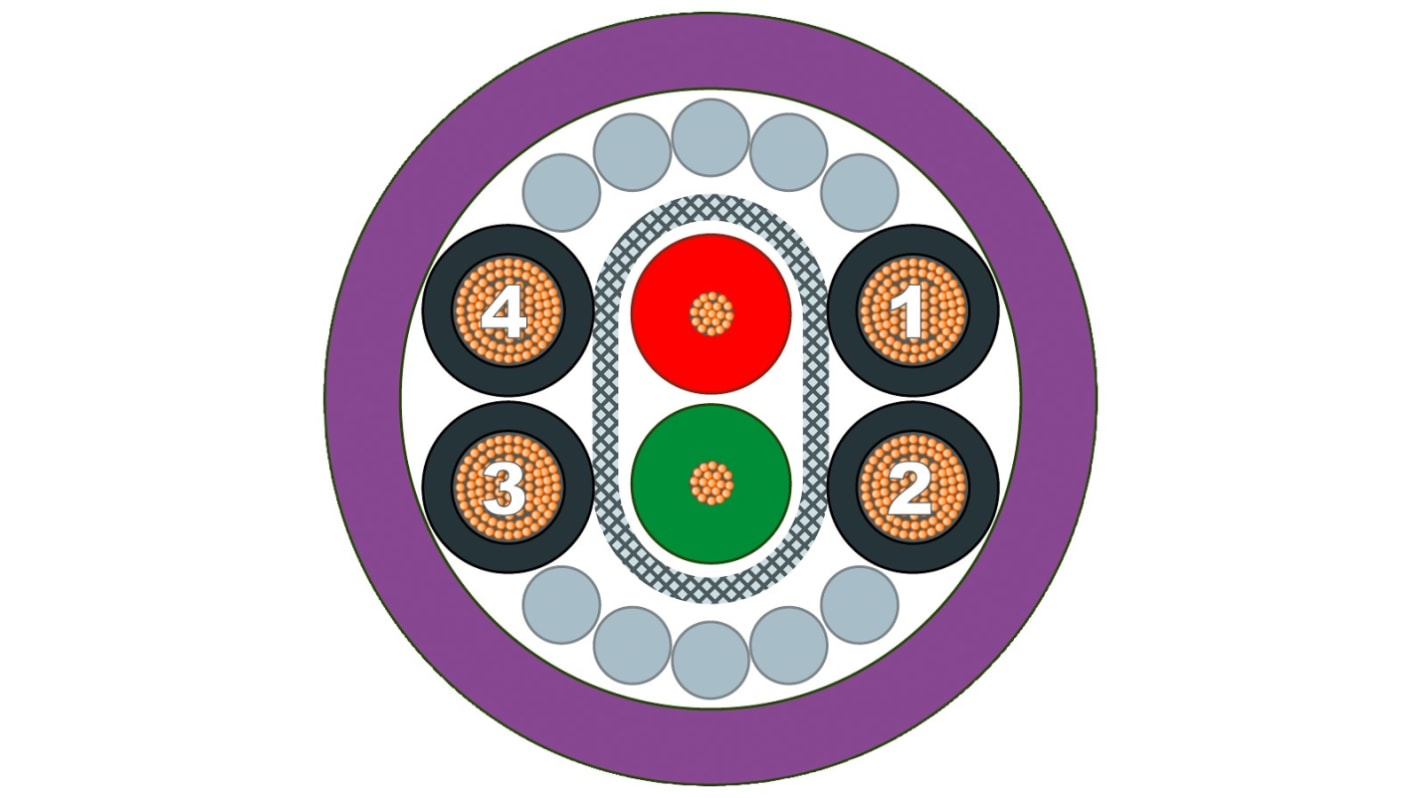

The Siemens PROFIBUS ECOFAST hybrid cable is data and energy cable with 6 core. It is pre-assembled with ECOFAST plug and socket it is trailable cable and available in the length of 10meter.
Shield resistance per length maximum up to 15 Ω/km
Insulation resistance coefficient 20 GΩ·m
Halogen-free
Silicon-free
