RS PRO LIYCY Series Data Cable, 0.34 mm², 100 m, Grey Sheath Polyvinyl Chloride

RS Stock No.:: 136-8208
Manufacturer:: RS PRO

RS PRO LIYCY Series Data Cable, 0.34 mm², 100 m, Grey Sheath Polyvinyl Chloride

Bulk discount available

Subtotal (1 reel of 100 metres)*

PHP11,421.52

(exc. VAT)

PHP12,792.10

(inc. VAT)

Stock information currently inaccessible - Please check back later

Reel(s)	Per Reel	Per Metre*
1 - 4	PHP11,421.52	PHP114.215
5 +	PHP9,399.92	PHP93.999

*price indicative

RS Stock No.:: 136-8208
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Data Cable
	Cross Sectional Area	0.34 mm²
	Cable Length	100m
	Jacket Colour	Grey
	Outside Diameter	4.9 mm
	Jacket Material	Polyvinyl Chloride
	Conductor Type	Stranded
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	70°C
	Standards/Approvals	Euroclass Eca
	Series	LIYCY
	Fire Behaviour	Flame Retardant NF C 32-070/C2, IEC 60332-1
	Conductor Material	Bare Copper
	Voltage	300 V

	Select all
	Brand RS PRO
	Product Type Data Cable
	Cross Sectional Area 0.34 mm²
	Cable Length 100m
	Jacket Colour Grey
	Outside Diameter 4.9 mm
	Jacket Material Polyvinyl Chloride
	Conductor Type Stranded
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature 70°C
	Standards/Approvals Euroclass Eca
	Series LIYCY
	Fire Behaviour Flame Retardant NF C 32-070/C2, IEC 60332-1
	Conductor Material Bare Copper
	Voltage 300 V

COO (Country of Origin):: TR

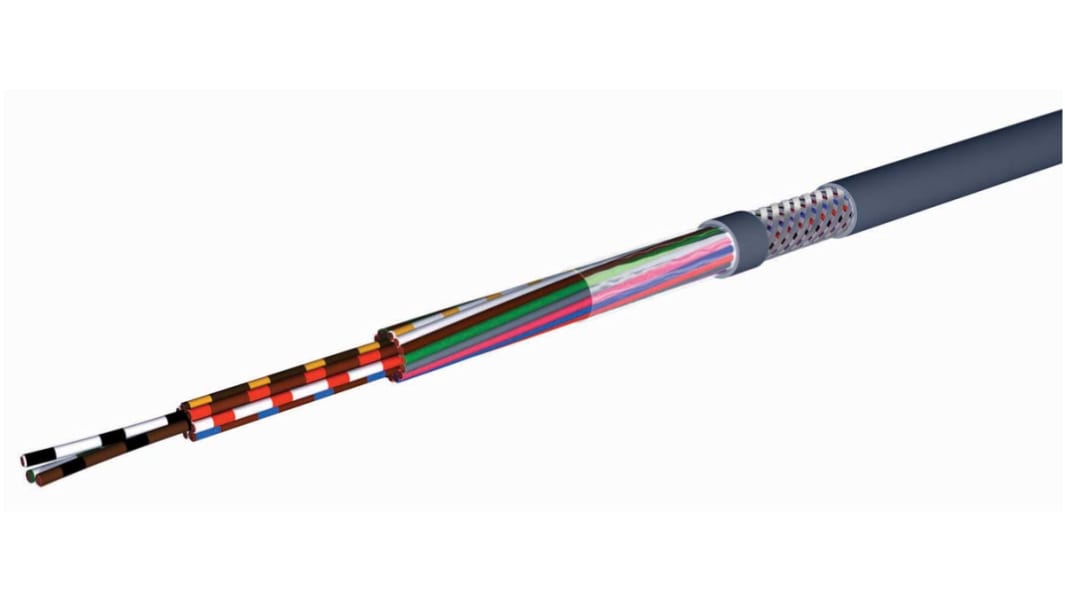

RS PRO 4 Core CY Control Cable, Screened, 0.34 mm², 100 m

This compact and slender four-core data cable from RS PRO is designed to carry both analogue and digital signals in controlled environments. It's ideal for areas without pre-made cable runs, where it will work as a fixed data transmission cable.

For improved security, the cable has a flame-retardant polyvinyl chloride (PVC) sheath. The stranded core has been designed to make it easy to handle, and there's an extra braided shield layer to help prevent noise transmission. The internal cores have also been colour-coded for easy identification.

Thanks to its narrow diameter, this four-core cable will fit comfortably, even if you're working in a crowded space. The cable is suitable for carrying control signals for machinery or audio/visual data in a studio. It can also power small pieces of equipment directly, as it has a 300 V, 6 A current rating.

Features and Benefits

Wire size of 22 AWG (American Wire Gauge)

Multicore cable shape

Copper conductor material

Conductor resistance of 58.9 Ω/km

Cross-sectional area of 0.34 mm²

Current rating of 6 A

Not an earth cable

Flame-retardant

Length of 100 m

Operating temperature range of -30°C to +70°C

Minimum bend radius of 8 x diameter

Four cores

Outer diameter of 4.9 mm

Tinned copper braid screen type

Screened

Grey sheath colour

Polyvinyl chloride (PVC) sheath material

Voltage rating of 300 V
