Igus CF240 Series Data Cable, 0.34 mm², 100 m, Silver Grey Sheath Polyvinyl Chloride
- RS Stock No.:
- 240-9615
- Mfr. Part No.:
- CF240.03.14 (100m)
- Manufacturer:
- Igus
Subtotal (1 reel of 100 metres)*
PHP68,251.61
(exc. VAT)
PHP76,441.80
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 22, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | PHP68,251.61 | PHP682.516 |
*price indicative
- RS Stock No.:
- 240-9615
- Mfr. Part No.:
- CF240.03.14 (100m)
- Manufacturer:
- Igus
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Igus | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.34 mm² | |
| Cable Length | 100m | |
| Jacket Colour | Silver Grey | |
| Outside Diameter | 8 mm | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -25°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CSA, UL | |
| Fire Behaviour | Flammability | |
| Voltage | 60 V | |
| Series | CF240 | |
| Conductor Material | Nickel Chrome | |
| Select all | ||
|---|---|---|
Brand Igus | ||
Product Type Data Cable | ||
Cross Sectional Area 0.34 mm² | ||
Cable Length 100m | ||
Jacket Colour Silver Grey | ||
Outside Diameter 8 mm | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -25°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CSA, UL | ||
Fire Behaviour Flammability | ||
Voltage 60 V | ||
Series CF240 | ||
Conductor Material Nickel Chrome | ||
- COO (Country of Origin):
- DE

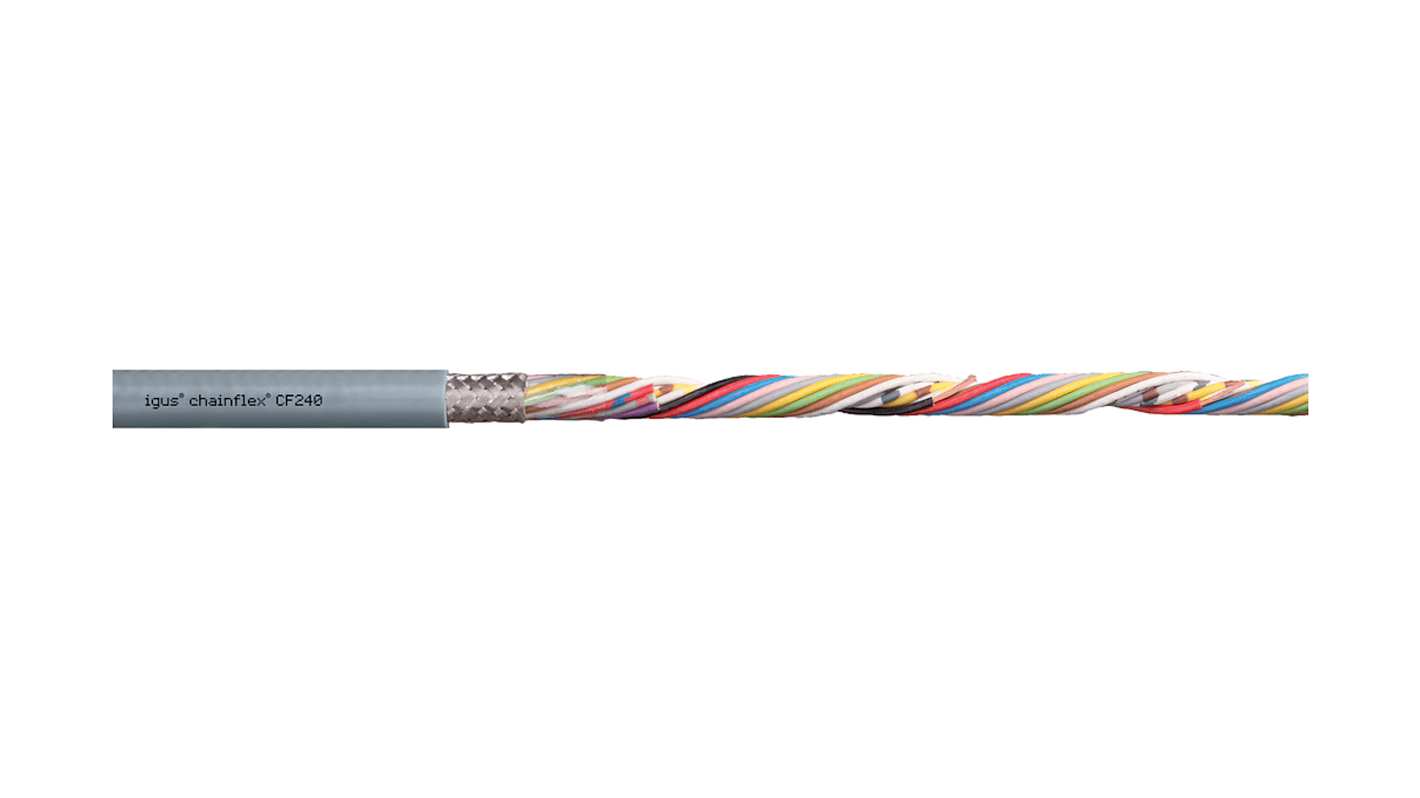

The Igus chainflex PVC Data Cable (14x0.34)C used for typical application areas, for medium duty use, light oil influence, preferably indoor applications, but also outdoor ones at temperatures > 5 °C, unsupported travel distances and up to 50 m for gliding applications, storage and retrieval units for high-bay warehouses, machining units/packaging machines, handling, indoor cranes.
Requirements For medium duty applications
Outer jacket PUR
Overall shield
Oil resistance Oil-resistant according to DIN EN 50363-10-2
Notch-resistant
Hydrolysis and microbe-resistant
Flame retardant
Halogen-free
Silicone-free
PVC-free
UV-resistant
