Infineon, Thyristor Module 1600 V 4400 A, 162 A 150 mA 1.41 V
- RS Stock No.:
- 273-3078
- Mfr. Part No.:
- TT162N14KOFHPSA2
- Manufacturer:
- Infineon
This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
PHP9,698.65
(exc. VAT)
PHP10,862.49
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 5 unit(s) shipping from May 28, 2026
- Plus 8 unit(s) shipping from June 04, 2026
- Plus 8 unit(s) shipping from July 30, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP9,698.65 |
| 10 - 24 | PHP9,407.69 |
| 25 - 49 | PHP9,031.38 |
| 50 - 99 | PHP8,579.81 |
| 100 + | PHP8,065.02 |
*price indicative
- RS Stock No.:
- 273-3078
- Mfr. Part No.:
- TT162N14KOFHPSA2
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Rated Average On-State Current Irms | 162A | |
| Product Type | Thyristor Module | |
| Repetitive Peak Reverse Voltage VDRM | 1600V | |
| Surge Current Rating | 4400A | |
| Maximum Gate Trigger Current Igt | 150mA | |
| Maximum Gate Trigger Voltage Vgt | 2V | |
| Maximum Holding Current Ih | 200mA | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Series | TT | |
| Peak On-State Voltage | 1.41V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Rated Average On-State Current Irms 162A | ||
Product Type Thyristor Module | ||
Repetitive Peak Reverse Voltage VDRM 1600V | ||
Surge Current Rating 4400A | ||
Maximum Gate Trigger Current Igt 150mA | ||
Maximum Gate Trigger Voltage Vgt 2V | ||
Maximum Holding Current Ih 200mA | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Series TT | ||
Peak On-State Voltage 1.41V | ||
Automotive Standard No | ||

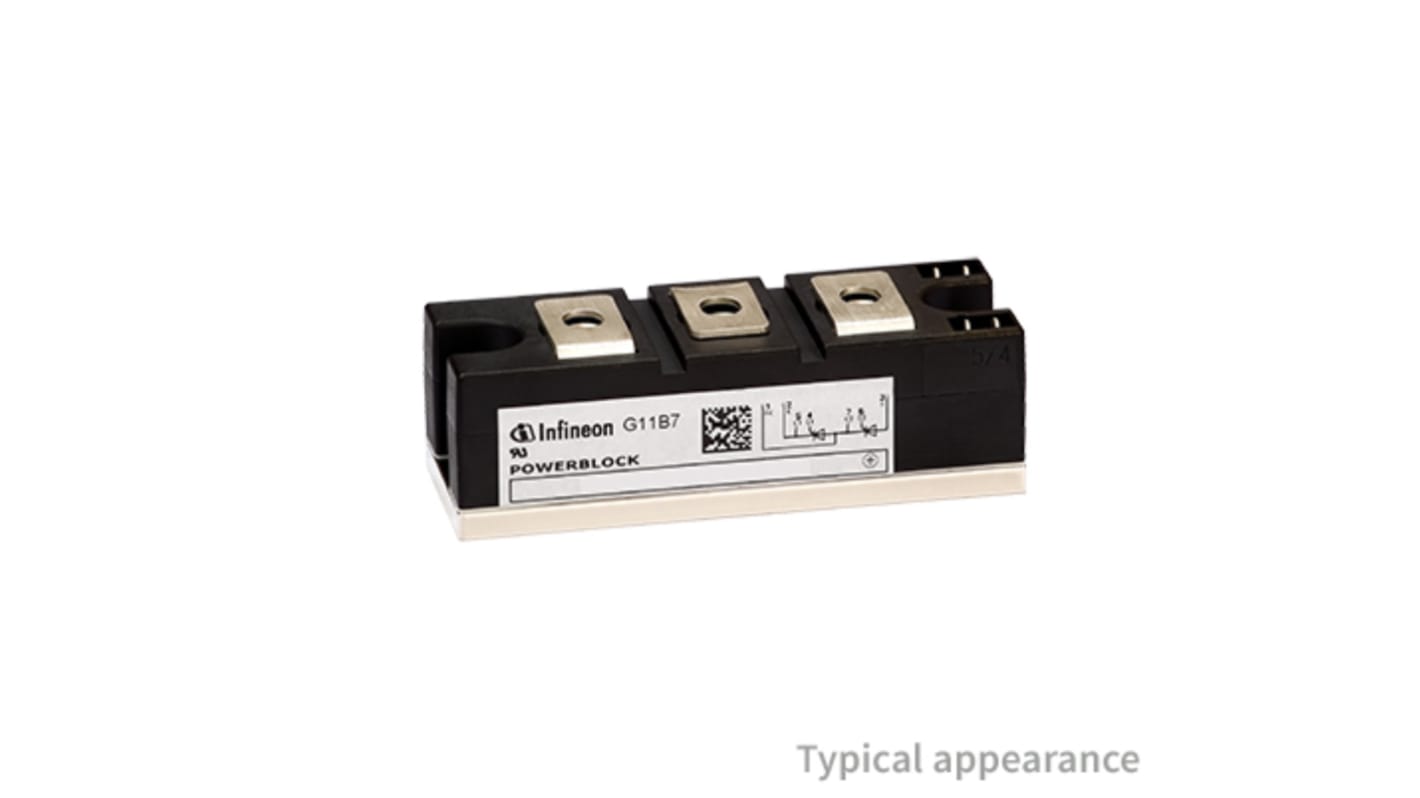

The Infineon thyristor 34 mm power block module for phase control in pressure contact technology using an isolated copper base plate.
Designed for high overload and power cycling requirements
High DC blocking stability over whole lifetime
