Infineon TT162N16KOFHPSA2, Thyristor Module 1600 V 4400 A, 260 A 150 mA 1.41 V
- RS Stock No.:
- 260-5899
- Mfr. Part No.:
- TT162N16KOFHPSA2
- Manufacturer:
- Infineon

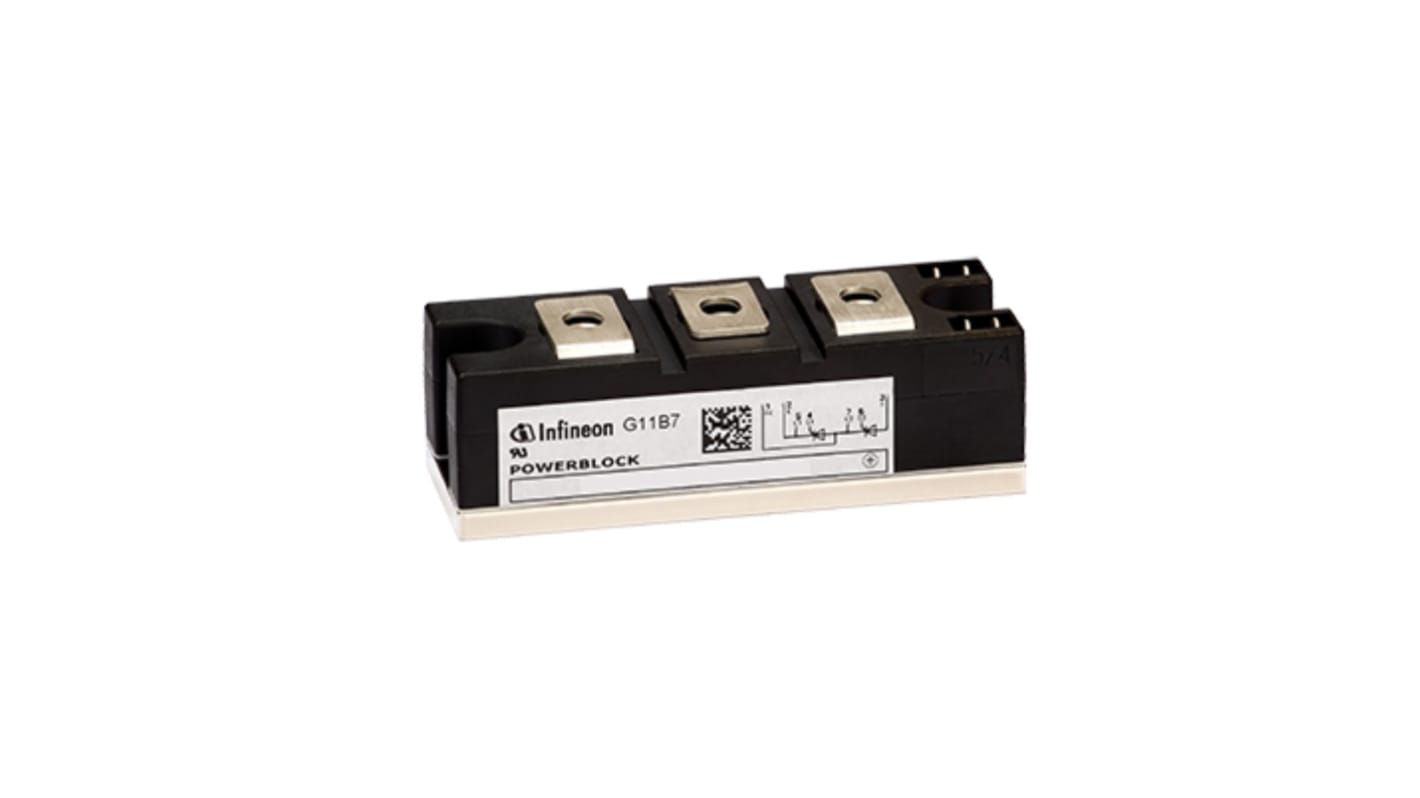

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
PHP11,332.57
(exc. VAT)
PHP12,692.48
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 11 unit(s) shipping from February 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 1 | PHP11,332.57 |
| 2 - 2 | PHP10,765.94 |
| 3 - 3 | PHP10,227.64 |
| 4 - 4 | PHP9,716.26 |
| 5 + | PHP9,230.45 |
*price indicative
- RS Stock No.:
- 260-5899
- Mfr. Part No.:
- TT162N16KOFHPSA2
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Rated Average On-State Current Irms | 260A | |
| Product Type | Thyristor Module | |
| Repetitive Peak Reverse Voltage VDRM | 1600V | |
| Surge Current Rating | 4400A | |
| Maximum Gate Trigger Current Igt | 150mA | |
| Maximum Gate Trigger Voltage Vgt | 2V | |
| Maximum Holding Current Ih | 200mA | |
| Maximum Operating Temperature | 125°C | |
| Series | TT162N | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Peak On-State Voltage | 1.41V | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Rated Average On-State Current Irms 260A | ||
Product Type Thyristor Module | ||
Repetitive Peak Reverse Voltage VDRM 1600V | ||
Surge Current Rating 4400A | ||
Maximum Gate Trigger Current Igt 150mA | ||
Maximum Gate Trigger Voltage Vgt 2V | ||
Maximum Holding Current Ih 200mA | ||
Maximum Operating Temperature 125°C | ||
Series TT162N | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Peak On-State Voltage 1.41V | ||
The Infineon thyristor module for phase control in pressure contact technology using an isolated copper base plate. Designed for high overload and power cycling requirements.
Pressure contact technology for high reliability
Electrically insulated baseplate
