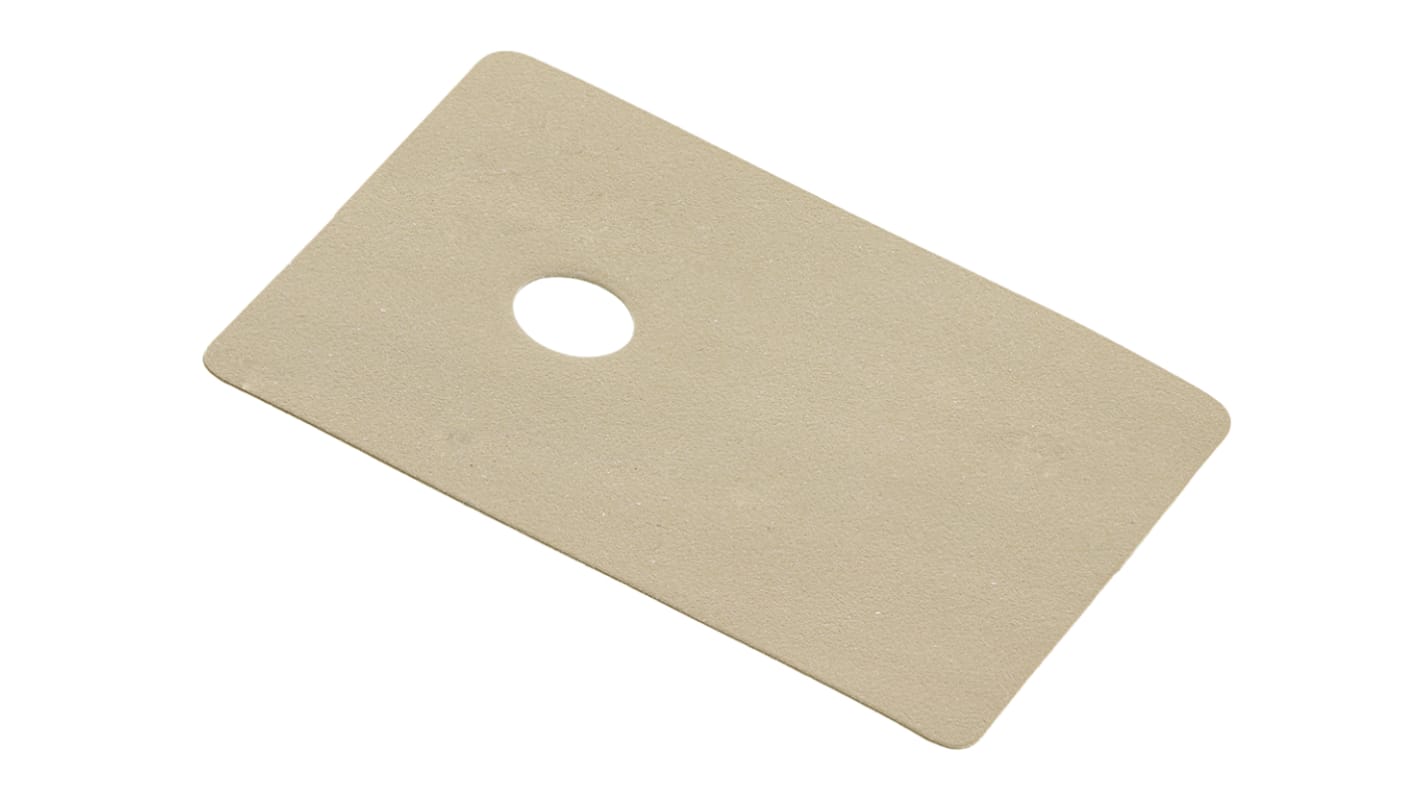

Bergquist SPK10 Series Self-Adhesive Thermal Interface Pad, 0.152 mm Thick, 1.3 W/mK, 25.4 mm, 19.05mm, Thin Film
- RS Stock No.:
- 707-3373
- Mfr. Part No.:
- SPK10-0.006-00-104
- Manufacturer:
- Bergquist
Bulk discount available
View bulk pricing optionSubtotal (1 pack of 10 units)*
PHP517.50
(exc. VAT)
PHP579.60
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 3,820 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 - 240 | PHP51.75 | PHP517.50 |
| 250 - 490 | PHP50.715 | PHP507.15 |
| 500 - 990 | PHP49.701 | PHP497.01 |
| 1000 - 4990 | PHP48.709 | PHP487.09 |
| 5000 + | PHP47.735 | PHP477.35 |
*price indicative
- RS Stock No.:
- 707-3373
- Mfr. Part No.:
- SPK10-0.006-00-104
- Manufacturer:
- Bergquist
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bergquist | |
| Product Type | Thermal Interface Pad | |
| Thickness | 0.152mm | |
| Thermal Conductivity | 1.3W/mK | |
| Self-Adhesive | Yes | |
| Trade Name | Sil-Pad K10 | |
| Hardness | Shore A 90 | |
| Conductive Material | Thin Film Polyimide | |
| Length | 25.4mm | |
| Standards/Approvals | RoHS | |
| Width | 19.05mm | |
| Colour | Beige | |
| Maximum Operating Temperature | 180°C | |
| Minimum Operating Temperature | -60°C | |
| Series | SPK10 | |
| Select all | ||
|---|---|---|
Brand Bergquist | ||
Product Type Thermal Interface Pad | ||
Thickness 0.152mm | ||
Thermal Conductivity 1.3W/mK | ||
Self-Adhesive Yes | ||
Trade Name Sil-Pad K10 | ||
Hardness Shore A 90 | ||
Conductive Material Thin Film Polyimide | ||
Length 25.4mm | ||
Standards/Approvals RoHS | ||
Width 19.05mm | ||
Colour Beige | ||
Maximum Operating Temperature 180°C | ||
Minimum Operating Temperature -60°C | ||
Series SPK10 | ||
- COO (Country of Origin):
- US
Bergquist Sil-Pad K-10
Bergquist Sil-Pad K-10 is a high performance insulator, combining special film with a filled silicone rubber. The result is a product with good cut-through properties and excellent thermal performance. Sil-Pad K-10 is designed to replace ceramic insulators such as Beryllium Oxide, Boron Nitride and Alumina. Ceramic insulators are expensive and they break easily. Sil-Pad K-10 eliminates breakage and costs much less than ceramics.
High performance Kapton® based insulator
Tough dielectric carrier against cut-through
Designed to replace ceramic insulators
Flame rating: UL 94 - V0
Thermal impedance: 0.41°C-in2/W (@50 psi)
Colour: beige
