Microchip Voltage Temperature Sensor, Voltage Output, Through Hole Mount, Analogue, ±1°C, 3 Pins

RS Stock No.:: 403-838
Mfr. Part No.:: MCP9700A-E/TO
Manufacturer:: Microchip

Microchip Voltage Temperature Sensor, Voltage Output, Through Hole Mount, Analogue, ±1°C, 3 Pins

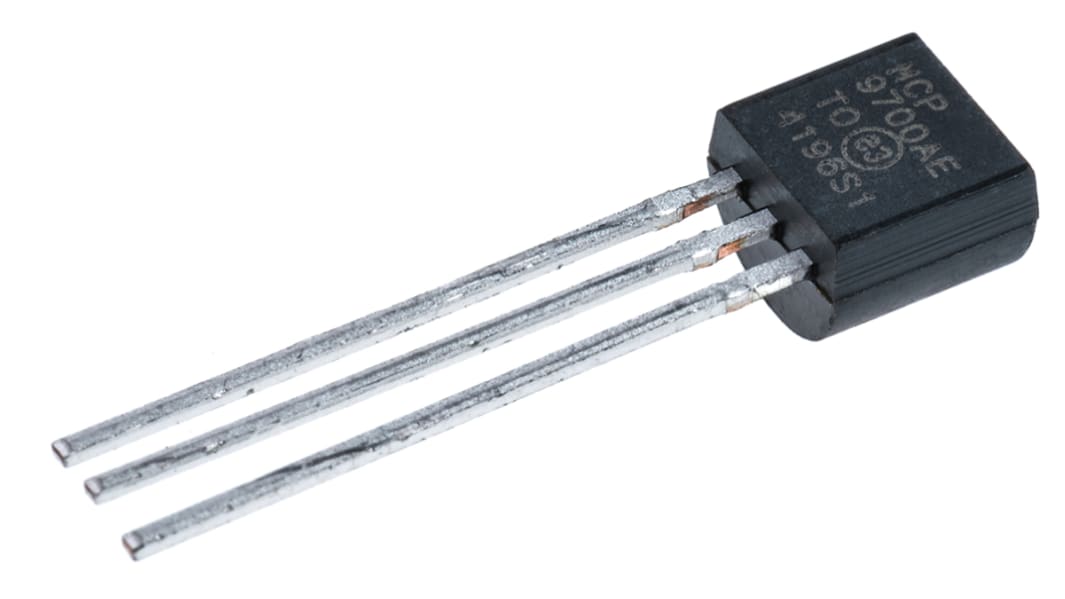

This image is representative of the product range

1740 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days

Added

Price Each (In a Pack of 20)

PHP29.693

(exc. VAT)

PHP33.256

(inc. VAT)

units	Per Unit	Per Pack*
20 - 20	PHP29.693	PHP593.86
40 - 80	PHP28.802	PHP576.04
100 +	PHP27.938	PHP558.76
*price indicative

Packaging Options:

Standard Pack

Production Pack

RS Stock No.:: 403-838
Mfr. Part No.:: MCP9700A-E/TO
Manufacturer:: Microchip

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

MCP9700/9701 Thermistor ICs

The MCP9700/9701 series of thermistor ICs convert temperature to analogue voltage. A key advantage of this series of thermistor IC is it's resistance to parasitic capacitance and the ability to drive large capacitive loads.
Applications include temperature monitoring, office equipment, home appliances, entertainment systems, hard disk drives, battery packs and any application that needs to measure a relative change in temperature.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Temperature & Humidity Sensors, Microchip

Specifications

Attribute	Value
Sensor Function	Temperature
Output Type	Voltage
Interface Type	Analogue
Accuracy	±1°C
Mounting Type	Through Hole
Pin Count	3
Operating Temperature Range	-40 → +125 °C
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+125 °C
Minimum Operating Supply Voltage	2.3 V
Maximum Operating Supply Voltage	5.5 V
Package Type	TO-92
Length	4.71mm
Height	4.62mm
Width	3.62mm
Sensor Gain	10mV/°C
Dimensions	4.71 x 3.62 x 4.62mm
