Microchip MCP9701 Series, Voltage Output Voltage Temperature Sensor, Through Hole Mount, Analogue, ±2°C, 3-Pin TO-92
- RS Stock No.:
- 144-5786
- Mfr. Part No.:
- MCP9701-E/TO
- Manufacturer:
- Microchip

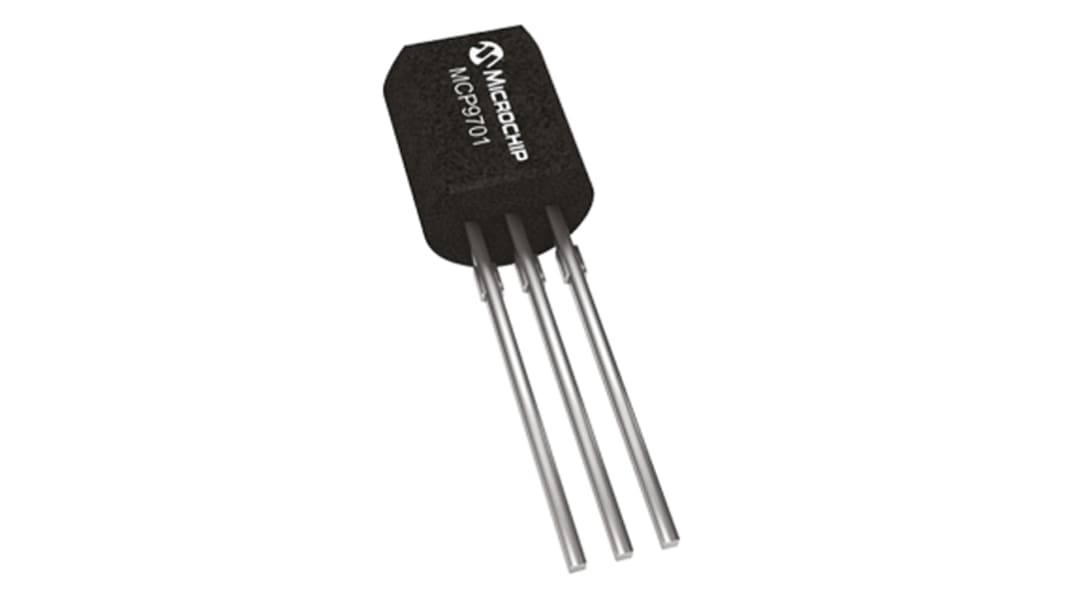

This image is representative of the product range
Bulk discount available
Subtotal (1 bag of 1000 units)*
PHP29,805.00
(exc. VAT)
PHP33,382.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 1,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 1000 - 2000 | PHP29.805 | PHP29,805.00 |
| 3000 + | PHP28.911 | PHP28,911.00 |
*price indicative
- RS Stock No.:
- 144-5786
- Mfr. Part No.:
- MCP9701-E/TO
- Manufacturer:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Voltage Temperature Sensor | |
| Output Type | Voltage | |
| Interface Type | Analogue | |
| Sub Type | Temperature Sensor | |
| Accuracy | ±2°C | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 125°C | |
| Minimum Supply Voltage | 3.1V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | TO-92 | |
| Width | 3.62 mm | |
| Series | MCP9701 | |
| Height | 4.62mm | |
| Standards/Approvals | No | |
| Length | 4.71mm | |
| Sensor Gain | 19.5mV/°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Voltage Temperature Sensor | ||
Output Type Voltage | ||
Interface Type Analogue | ||
Sub Type Temperature Sensor | ||
Accuracy ±2°C | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 125°C | ||
Minimum Supply Voltage 3.1V | ||
Maximum Supply Voltage 5.5V | ||
Package Type TO-92 | ||
Width 3.62 mm | ||
Series MCP9701 | ||
Height 4.62mm | ||
Standards/Approvals No | ||
Length 4.71mm | ||
Sensor Gain 19.5mV/°C | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
MCP9700/9701 Thermistor ICs
The MCP9700/9701 series of thermistor ICs convert temperature to analogue voltage. A key advantage of this series of thermistor IC is it's resistance to parasitic capacitance and the ability to drive large capacitive loads.
Applications include temperature monitoring, office equipment, home appliances, entertainment systems, hard disk drives, battery packs and any application that needs to measure a relative change in temperature.
