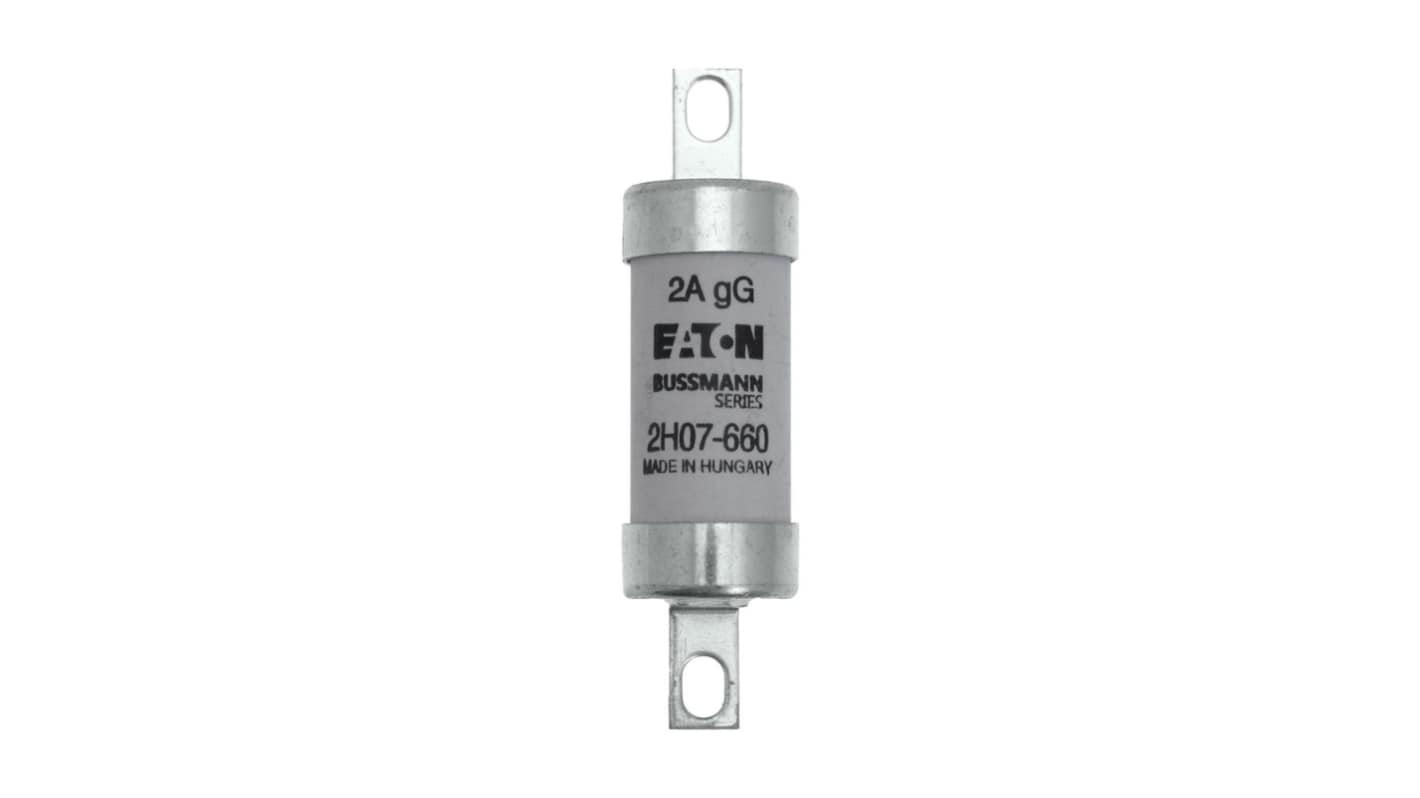

Eaton 2A Tag Fuse 22 x 82 mm 690V

RS Stock No.:: 229-075
Mfr. Part No.:: 2H07-660 2AMP 690V AC/ 460V DC INDUSTRIAL FUSE
Manufacturer:: Eaton

Subtotal (1 pack of 20 units)*

PHP58,301.16

(exc. VAT)

PHP65,297.30

(inc. VAT)

FREE delivery for orders over ₱5,000.00

Stocked by manufacturer

Ready to ship from April 26, 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Pack(s)	Per Pack	Per Unit*
1 +	PHP58,301.16	PHP2,915.058

*price indicative

RS Stock No.:: 229-075
Mfr. Part No.:: 2H07-660 2AMP 690V AC/ 460V DC INDUSTRIAL FUSE
Manufacturer:: Eaton

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Tag Fuse
	Fuse Type	H07-660
	Fuse Size	22 x 82 mm
	Standards/Approvals	EN IEC 6000:018, EN 60691:007, RoHS, ANSIESD S0.0:01
	Application Category	General Industrial Application
	Fuse Speed	gL
	Fuse Characteristics	gG/gL
	Tag Type	Offset Bladed
	Overall Length	84.5mm
	Length	84.5mm
	Height	21mm
	Diameter	21mm
	Series	Eaton Bussmann

	Select all
	Brand Eaton
	Product Type Tag Fuse
	Fuse Type H07-660
	Fuse Size 22 x 82 mm
	Standards/Approvals EN IEC 6000:018, EN 60691:007, RoHS, ANSIESD S0.0:01
	Application Category General Industrial Application
	Fuse Speed gL
	Fuse Characteristics gG/gL
	Tag Type Offset Bladed
	Overall Length 84.5mm
	Length 84.5mm
	Height 21mm
	Diameter 21mm
	Series Eaton Bussmann

Datasheet - 2H07-660 2AMP 690V AC/ 460V DC INDUSTRIAL FUSE

RoHS Status: Exempt

COO (Country of Origin):: HU

Eaton Tag Fuse, 2A Current Rating, 690V Voltage - 2H07-660 2AMP 690V AC/ 460V DC INDUSTRIAL FUSE

This tag fuse provides overcurrent protection for general industrial electrical installations, designed for use where compact, high-voltage fusing is required. It is intended to interrupt fault currents in both AC and DC systems within industrial settings, offering a standardised solution for panel and equipment protection where a tagged fuse format is preferred.

Features and Benefits:

• 2A rating enables low-current circuit protection and fault clearance
• 690V AC / 460V DC voltage capability supports mixed-voltage systems
• gG/gL characteristic for reliable full-range conductor protection
• High-speed gL performance for fast response to short circuits
• Offset bladed tag aids secure mounting and straightforward replacement
• Conforms to EN IEC 6000-018 and EN 60691-007 for standardised performance

Applications

• Suitable for protecting control circuits in automation cabinets
• Ideal for use in motor control and drive protection schemes
• Used with distribution panels handling high-voltage AC supplies
• Can be used for DC supply protection in industrial battery systems
• Suitable for replacement fusing during maintenance of factory electrical equipment

What physical size should I allow for panel cut-outs?

The fuse body is 22 x 82mm with an overall length of 84.5mm, and a 21mm width and height, so panel holders and clips must accommodate those Compact dimensions.

How does the tag format affect installation?

The offset bladed tag design provides a defined mounting plane that simplifies insertion into tag-style fuse holders and ensures stable electrical contact.

Which environments suit this type of fuse in terms of current waveform?

It is suitable for both alternating and direct current circuits up to the stated voltage limits, making it appropriate where AC distribution and DC supplies coexist.

What approval markings indicate material restrictions?

The component meets RoHS requirements, indicating compliance with restrictions on certain hazardous substances.
