Black Button Tactile Switch, SPST 50 mA @ 24 V dc 9.4mm Through Hole

RS Stock No.:: 161-6043
Mfr. Part No.:: 2-1825910-7
Manufacturer:: TE Connectivity

Black Button Tactile Switch, SPST 50 mA @ 24 V dc 9.4mm Through Hole

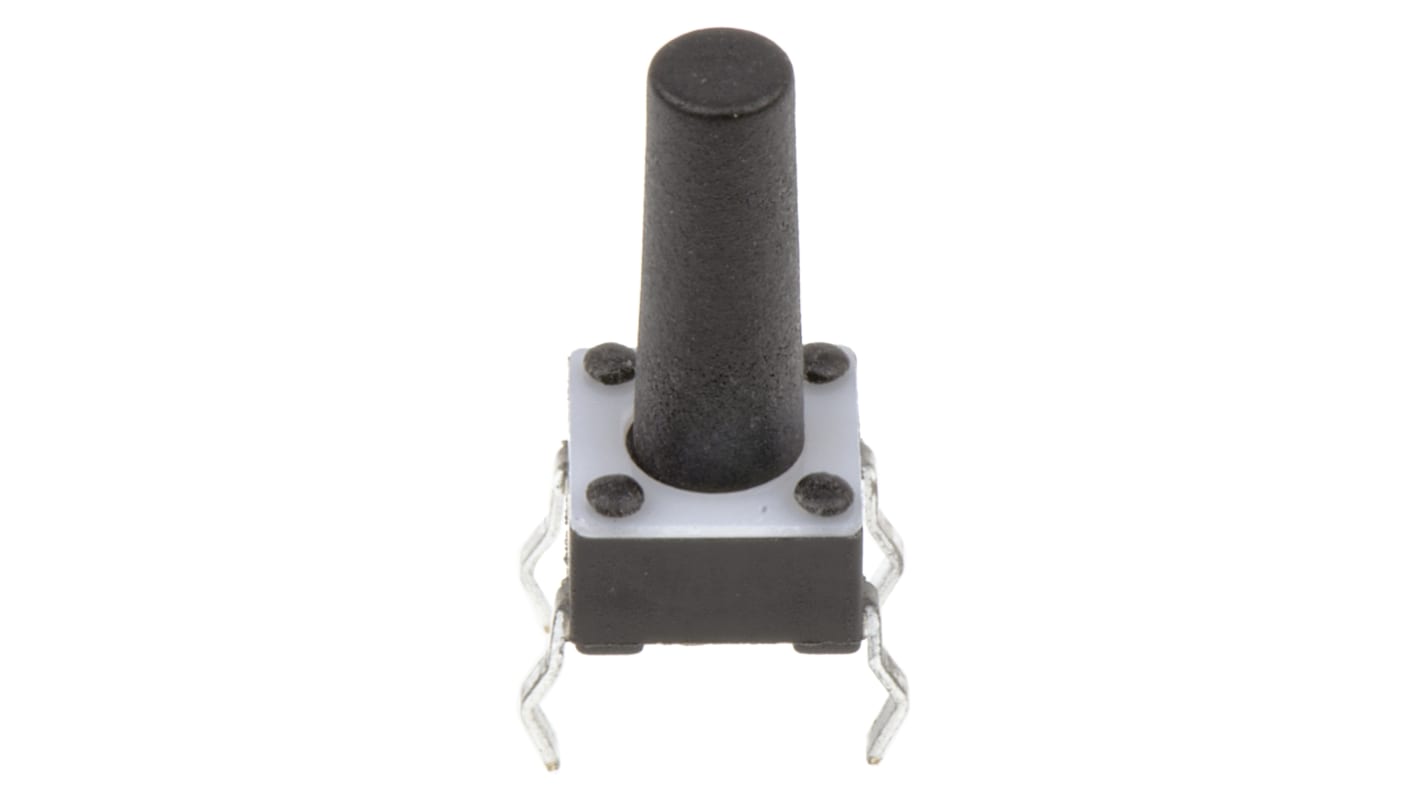

This image is representative of the product range

3750 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days

996249 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days

Added

Price Each (In a Bag of 750)

PHP3.605

(exc. VAT)

PHP4.038

(inc. VAT)

units	Per Unit	Per Bag*
750 +	PHP3.605	PHP2,703.75
*price indicative

RS Stock No.:: 161-6043
Mfr. Part No.:: 2-1825910-7
Manufacturer:: TE Connectivity

Technical data sheets

Schematic Symbol & PCB Footprint

Legislation and Compliance

Product Details

TE Connectivity FSM Series Tactile Switches

The professional range of tactile switches from TE Connectivity. FSM series switches are suitable for use with mobile devices.

Features and benefits:

SPNO tactile switches available in THT, SMD & right angle mountings
SMD types suitable for immersion

Applications:

• Keyboards
• Keypads
• Telephones
• Radios
• General consumer electronics
• Closing the circuit on a PCV

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Tactile

Specifications

Attribute	Value
Contact Configuration	SPST
Terminal Type	Through Hole
Switch Operation	Momentary
Actuator Length	9.4mm
Actuator Colour	Black
Actuator Type	Button
Length	5.99mm
Dimensions	5.99 x 5.99 x 7.8mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
Operating Force	1.569 N
Height	7.8mm
Operating Temperature Range	-35 → +85°C
Minimum Operating Temperature	-35°C
Maximum Operating Temperature	+85°C
Mechanical Life	100000Operations
Contact Material	Silver Over Nickel Plated Copper Alloy (Stationary); Silver Plated Copper Alloy (Movable)
