JST FVDDF Yellow Insulated Female Spade Connector, Crimp, 2.79 x 0.8 mm Tab Size 26 AWG to 22 AWG
- RS Stock No.:
- 688-1072
- Mfr. Part No.:
- FVDDF0.5-110A-8(LF)
- Manufacturer:
- JST

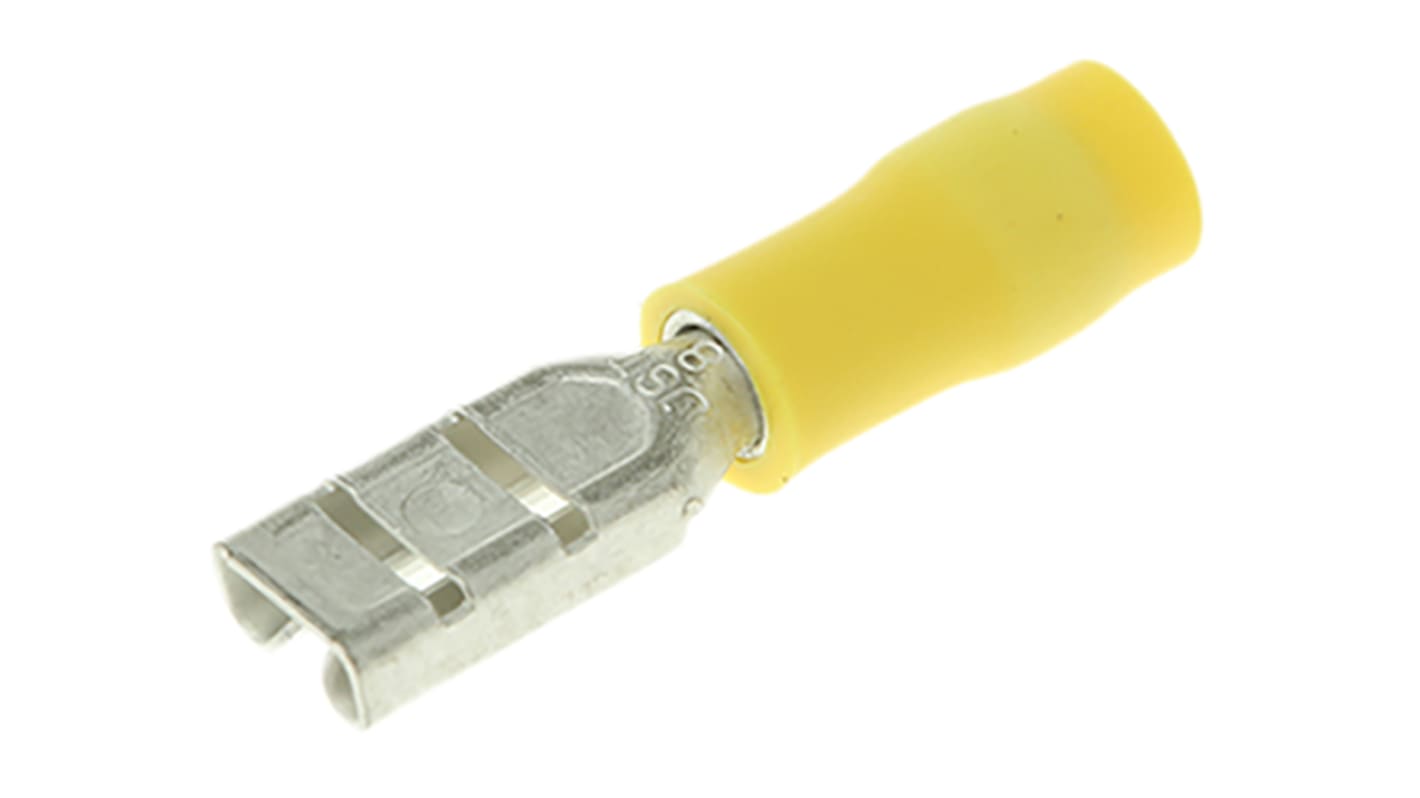

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 688-1072
- Mfr. Part No.:
- FVDDF0.5-110A-8(LF)
- Manufacturer:
- JST
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Spade Connector | |
| Termination Type | Crimp | |
| Gender | Female | |
| Tab Size | 2.79 x 0.8 mm | |
| Tab Width | 93.98mm | |
| Tab Thickness | 20.32mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 22AWG | |
| Maximum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Minimum Wire Size mm² | 0.2mm² | |
| Colour | Yellow | |
| Contact Material | Copper | |
| Orientation | Straight | |
| Insulation Material | Vinyl | |
| Standards/Approvals | No | |
| Overall Length | 16.4mm | |
| Series | FVDDF | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Spade Connector | ||
Termination Type Crimp | ||
Gender Female | ||
Tab Size 2.79 x 0.8 mm | ||
Tab Width 93.98mm | ||
Tab Thickness 20.32mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 22AWG | ||
Maximum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Minimum Wire Size mm² 0.2mm² | ||
Colour Yellow | ||
Contact Material Copper | ||
Orientation Straight | ||
Insulation Material Vinyl | ||
Standards/Approvals No | ||
Overall Length 16.4mm | ||
Series FVDDF | ||
JST Series Insulated Crimp Receptacle Terminals
A range of insulated crimp receptacle terminals with a copper sleeve and vinyl insulation. These crimp receptacle terminals are available for use with a variety tab sizes including .110, .187, .250 and .375 and a range of wire sizes from 26 to 10 AWG
JST Insulated Crimp Terminals
