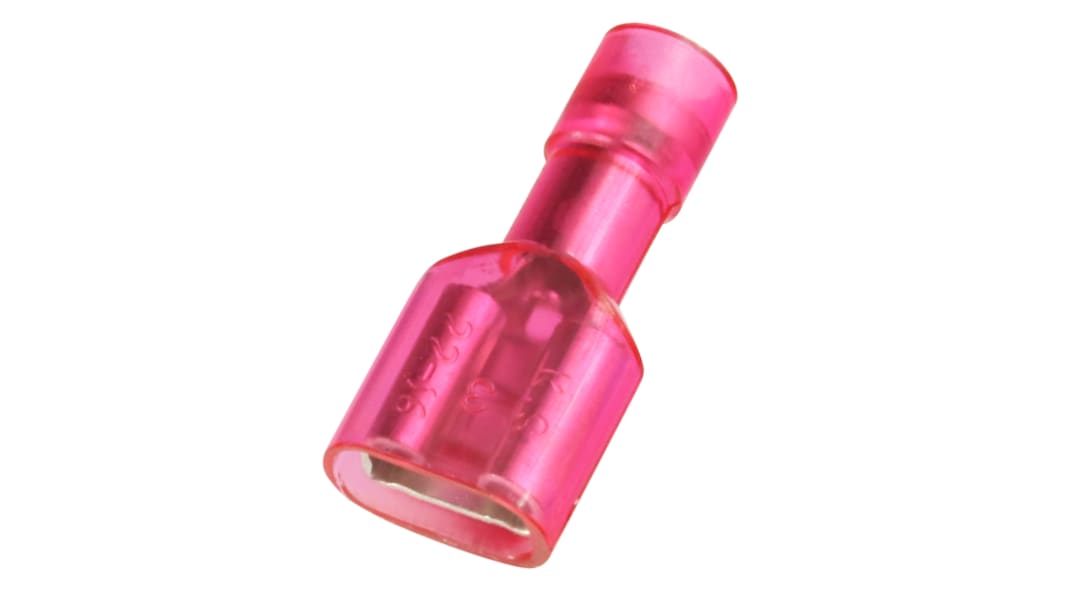

RS PRO Red Insulated Female Spade Connector, Crimp, 0.8 x 6.35 mm Tab Size 22 AWG to 16 AWG
- RS Stock No.:
- 178-8295
- Distrelec Article No.:
- 304-25-368
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 100 units)*
PHP1,092.00
(exc. VAT)
PHP1,223.00
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 800 unit(s) ready to ship from another location
- Plus 3,200 unit(s) shipping from October 13, 2026
- Plus 12,000 unit(s) shipping from November 24, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 100 - 900 | PHP10.92 | PHP1,092.00 |
| 1000 - 1900 | PHP10.593 | PHP1,059.30 |
| 2000 - 4900 | PHP10.275 | PHP1,027.50 |
| 5000 - 9900 | PHP10.046 | PHP1,004.60 |
| 10000 + | PHP8.268 | PHP826.80 |
*price indicative
Sponsored
- RS Stock No.:
- 178-8295
- Distrelec Article No.:
- 304-25-368
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Termination Type | Crimp | |
| Product Type | Spade Connector | |
| Gender | Female | |
| Tab Width | 6.35mm | |
| Tab Size | 0.8 x 6.35 mm | |
| Tab Thickness | 0.8mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 16AWG | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Colour | Red | |
| Contact Material | Brass, Copper | |
| Contact Plating | Tin | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Insulation Material | Polycarbonate | |
| Overall Length | 21.5mm | |
| Series | RS PRO | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Termination Type Crimp | ||
Product Type Spade Connector | ||
Gender Female | ||
Tab Width 6.35mm | ||
Tab Size 0.8 x 6.35 mm | ||
Tab Thickness 0.8mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 16AWG | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 22AWG | ||
Colour Red | ||
Contact Material Brass, Copper | ||
Contact Plating Tin | ||
Orientation Straight | ||
Standards/Approvals No | ||
Insulation Material Polycarbonate | ||
Overall Length 21.5mm | ||
Series RS PRO | ||
- COO (Country of Origin):
- TW
The RS PRO Spade connector is a receptacle type connector with length of 28mm and maximum wire size of 16AWG.
Termination Method: Crimp
Gender: Female
