- RS Stock No.:
- 270-7572
- Manufacturer:
- RS PRO
8000 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Price Each (In a Bag of 500)
PHP4.978
(exc. VAT)
PHP5.575
(inc. VAT)
Units | Per Unit | Per Bag* |
500 - 4500 | PHP4.978 | PHP2,489.00 |
5000 - 9500 | PHP4.607 | PHP2,303.50 |
10000 + | PHP4.162 | PHP2,081.00 |
*price indicative |
- RS Stock No.:
- 270-7572
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

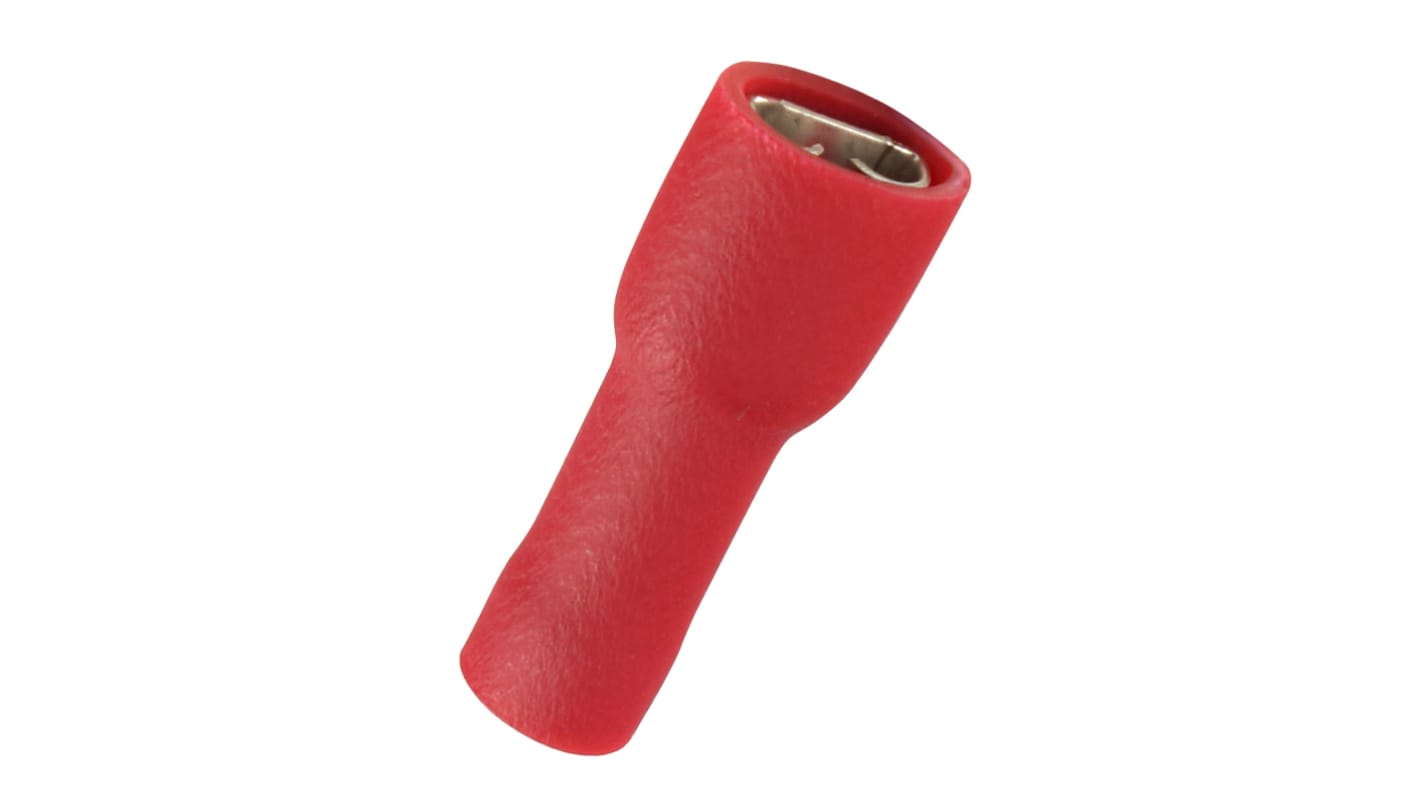

RS PRO Insulated Double Crimp Spade Connector – 20.5 mm
Introducing the RS PRO insulated spade connector, your go-to solution for effortless wire connections. With its high-quality brass contacts, you can count on exceptional conductivity every time. Plus, the full vinyl enclosure ensures insulation while safeguarding against electrical mishaps. The innovative design creates a protective shield, preventing dust, liquids, and other unwanted substances from interfering with your connection.
Features and Benefits
- Gender: Female
- Terminal material: Brass
- Insulation material: Vinyl
- Double crimp with copper sleeve on barrel
- Voltage: 600 V max.
- Overall Length: 20.5mm
Applications
- Electrical Servicing
- Automotive
Small Pack Size
Per Unit, RS stock no: 178-8285
Large Pack Size
RS stock no: 270-7572
Specifications
Attribute | Value |
---|---|
Spade Connector Type | Tab Terminal |
Type | Receptacle |
Minimum Wire Size mm² | 0.5mm² |
Gender | Female |
Maximum Wire Size mm² | 1.5mm² |
Tab Width | 4.75mm |
Tab Thickness | 0.8mm |
Tab Size | 0.8 x 4.75mm |
Insulation | Insulated |
Maximum Wire Size AWG | 16AWG |
Minimum Wire Size AWG | 22AWG |
Termination Method | Crimp |
Colour | Red |
Contact Material | Brass |
Wire Size | 0.5 → 1.5 mm², 22 → 16 AWG |
Insulation Material | Vinyl |
Overall Length | 20.5mm |
