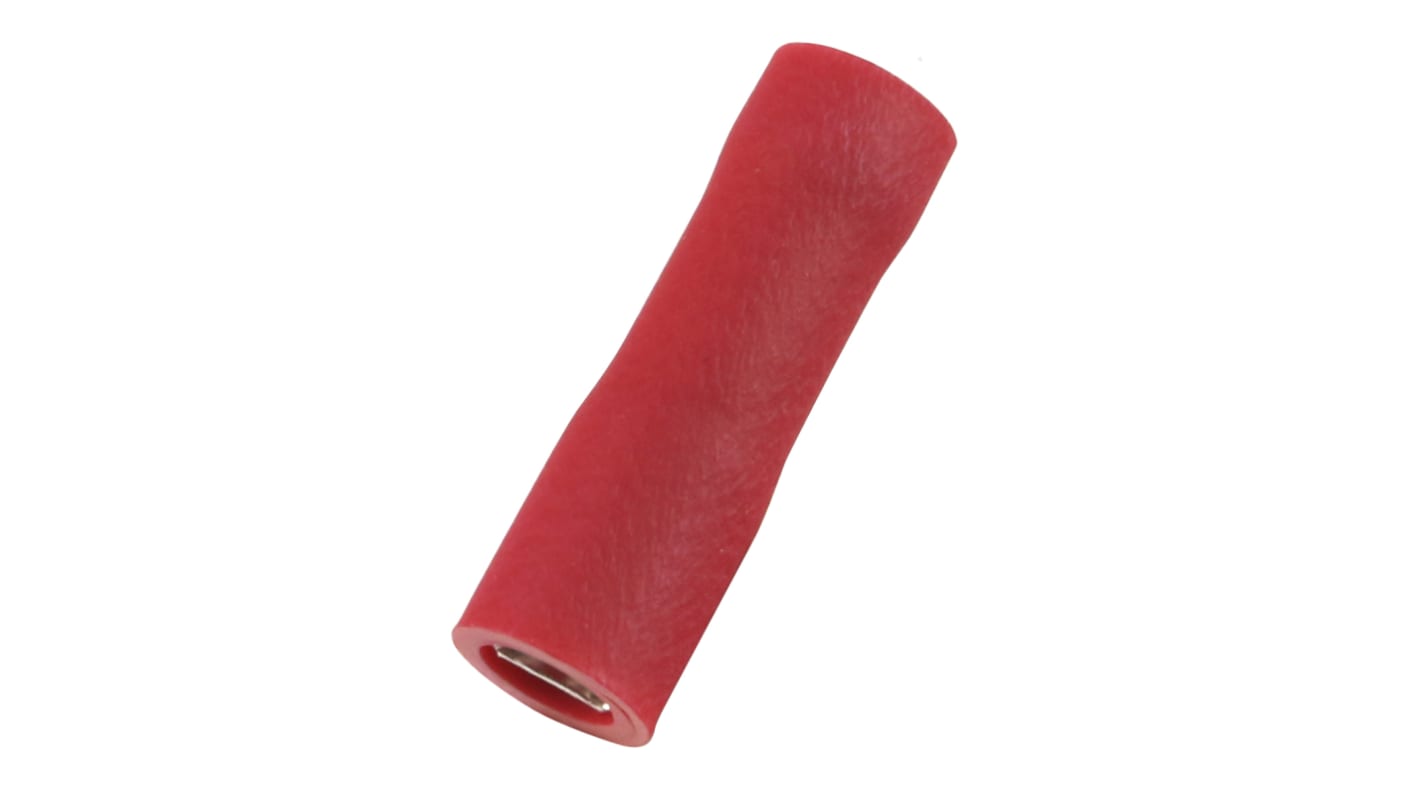

RS PRO Red Insulated Female Spade Connector, Crimp, 0.5 x 2.8 mm Tab Size 22 AWG to 16 AWG
- RS Stock No.:
- 178-8283
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 100 units)*
PHP802.10
(exc. VAT)
PHP898.40
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 14,600 unit(s) ready to ship from another location
- Plus 12,000 unit(s) shipping from November 24, 2026
- Plus 6,000 unit(s) shipping from February 02, 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 100 - 900 | PHP8.021 | PHP802.10 |
| 1000 - 1900 | PHP7.781 | PHP778.10 |
| 2000 - 4900 | PHP7.547 | PHP754.70 |
| 5000 - 9900 | PHP7.38 | PHP738.00 |
| 10000 + | PHP6.074 | PHP607.40 |
*price indicative
Sponsored
- RS Stock No.:
- 178-8283
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Termination Type | Crimp | |
| Product Type | Spade Connector | |
| Gender | Female | |
| Tab Size | 0.5 x 2.8 mm | |
| Tab Thickness | 0.5mm | |
| Tab Width | 2.8mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Colour | Red | |
| Contact Material | Copper, Brass | |
| Contact Plating | Tin | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Insulation Material | Vinyl | |
| Overall Length | 19mm | |
| Series | RS PRO | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Termination Type Crimp | ||
Product Type Spade Connector | ||
Gender Female | ||
Tab Size 0.5 x 2.8 mm | ||
Tab Thickness 0.5mm | ||
Tab Width 2.8mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Colour Red | ||
Contact Material Copper, Brass | ||
Contact Plating Tin | ||
Orientation Straight | ||
Standards/Approvals No | ||
Insulation Material Vinyl | ||
Overall Length 19mm | ||
Series RS PRO | ||
- COO (Country of Origin):
- TW
RS PRO VINYL-FULLY INSULATED DOUBLE CRIMP FEMALE DISCONNECTORS
