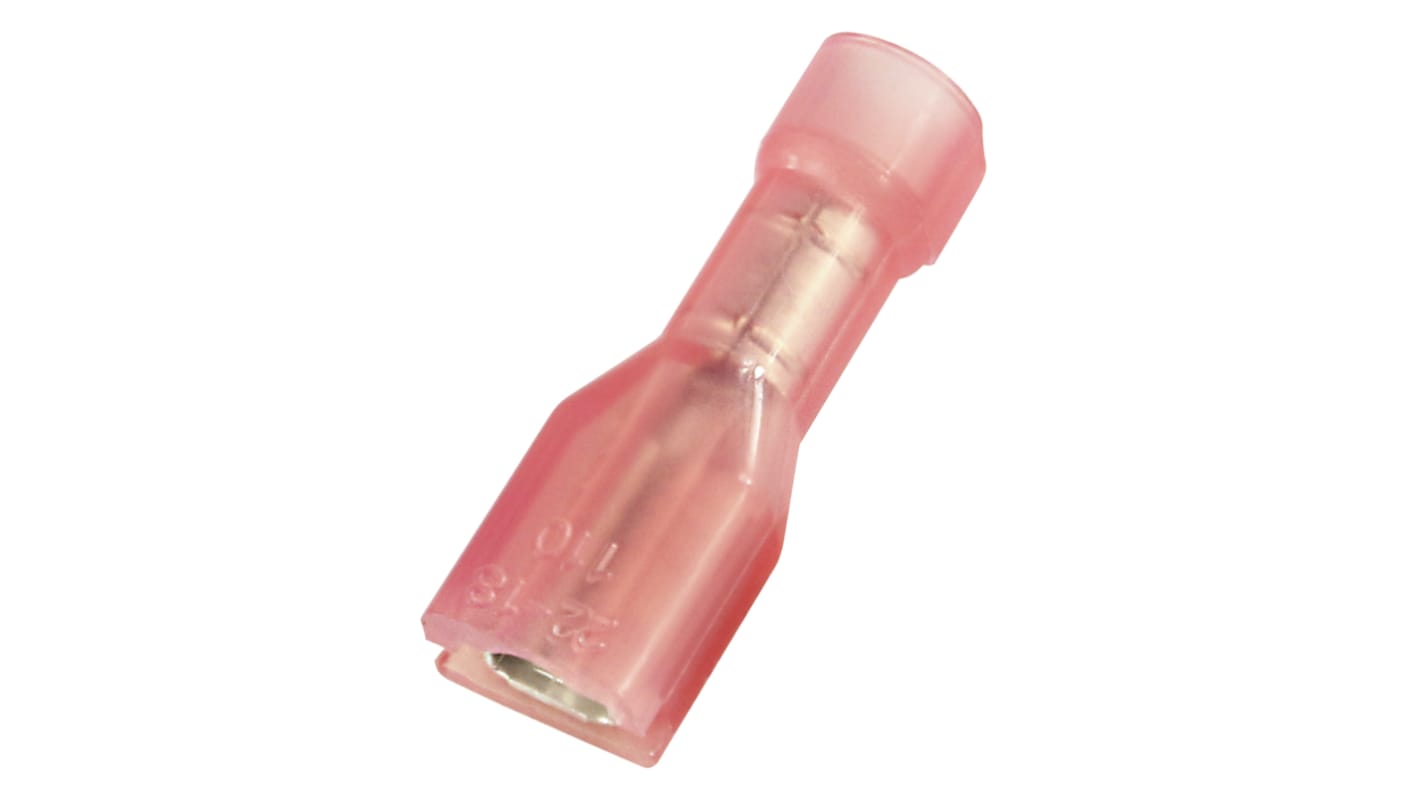

RS PRO Red Insulated Female Spade Connector, Receptacle, 0.5 x 2.8mm Tab Size, 0.5mm² to 0.75mm²
- RS Stock No.:
- 178-8299
- Manufacturer:
- RS PRO
800 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each (In a Bag of 100)
PHP4.252
(exc. VAT)
PHP4.762
(inc. VAT)
| Units | Per Unit | Per Bag* |
| 100 - 900 | PHP4.252 | PHP425.20 |
| 1000 - 1900 | PHP4.167 | PHP416.70 |
| 2000 - 4900 | PHP4.083 | PHP408.30 |
| 5000 - 24900 | PHP4.001 | PHP400.10 |
| 25000 + | PHP3.293 | PHP329.30 |
| *price indicative | ||
- RS Stock No.:
- 178-8299
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO NYLON-FULLY INSULATED FEMALE DISCONNECTORS (A TYPE)
Specifications
Attribute | Value |
|---|---|
| Type | Receptacle |
| Gender | Female |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 0.75mm² |
| Tab Thickness | 0.5mm |
| Tab Size | 0.5 x 2.8mm |
| Tab Width | 2.8mm |
| Insulation | Insulated |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Colour | Red |
| Termination Method | Crimp |
| Contact Material | Brass |
| Wire Size | 0.5 → 0.75 mm², 22 → 18 AWG |
| Insulation Material | Nylon |
| Overall Length | 18mm |
