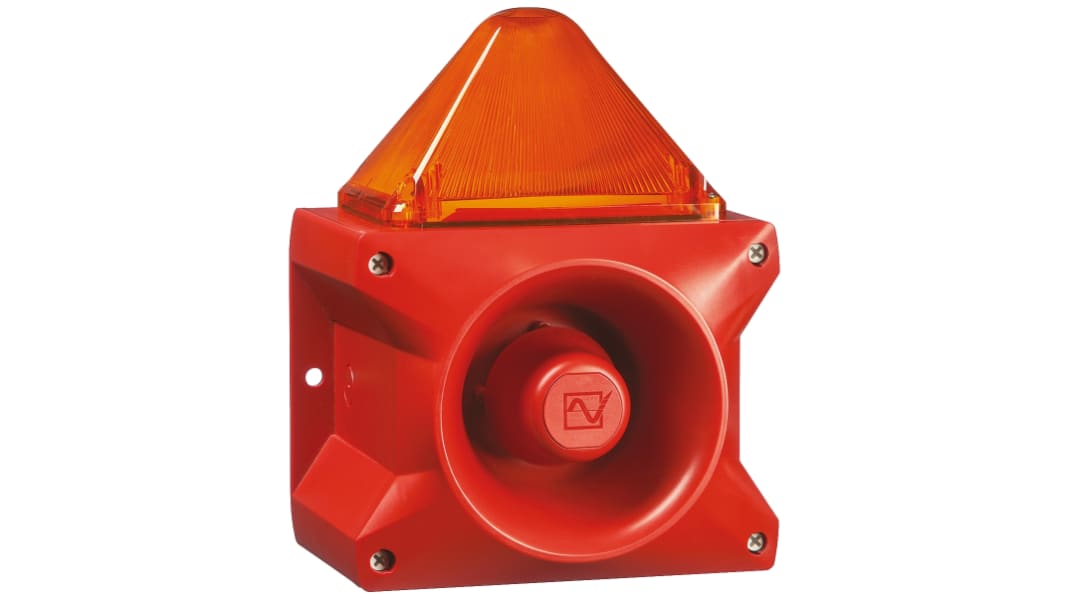

Pfannenberg PA X 10-10 Series Amber Sounder Beacon, 24 V dc, Base Mount, 110dB at 1 Metre
- RS Stock No.:
- 846-3743
- Mfr. Part No.:
- 23361804000
- Manufacturer:
- Pfannenberg
View all Sounder Beacons
1 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Price Each
PHP30,906.89
(exc. VAT)
PHP34,615.72
(inc. VAT)
| units | Per Unit |
| 1 + | PHP30,906.89 |
- RS Stock No.:
- 846-3743
- Mfr. Part No.:
- 23361804000
- Manufacturer:
- Pfannenberg
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Pfannenberg Patrol Flashing Sounder Beacons, PA-X-10-10
The Patrol PA-X-10-10 is an electronic sounder beacon with a 110 dB output and a flashing xenon light effect. It has 80 alarm tones and a 10J flash. The PA X-10-10 has a large signalling range and is safe and easy to install.
Rectangular PC/ABS blend housing with pyramid style PC lens
Safe - an incorrect installation is virtually impossible
Easy - significantly shorter assembly and installation times
Economical - extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders
Installation options with external lugs or internal holes
Pre-wired sounder and light ex works
Corresponding light intensity available for every sound pressure level
80 alarm tones, 110 dB
Visual covering distance of 56 m
IK08 Impact-proof housing
IP66 protection according to EN 60529
10J flash
10 year warranty
Safe - an incorrect installation is virtually impossible
Easy - significantly shorter assembly and installation times
Economical - extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders
Installation options with external lugs or internal holes
Pre-wired sounder and light ex works
Corresponding light intensity available for every sound pressure level
80 alarm tones, 110 dB
Visual covering distance of 56 m
IK08 Impact-proof housing
IP66 protection according to EN 60529
10J flash
10 year warranty
Approvals
UL, GL.
Specifications
| Attribute | Value |
| Supply Voltage | 24 V dc |
| Lens Colour | Amber |
| Mounting Style | Base Mount |
| Current Type | DC |
| Light Effect | Flashing |
| Sounder Type | Electronic |
| Decibels at 1 Metre | 110dB |
| Series | PA X 10-10 |
| Bulb Type | Xenon |
| Housing Colour | Red |
| Number Of Tones | 80 |
| Housing Material | Polycarbonate/ABS |
| Minimum Temperature | -40°C |
| Maximum Temperature | +55°C |
