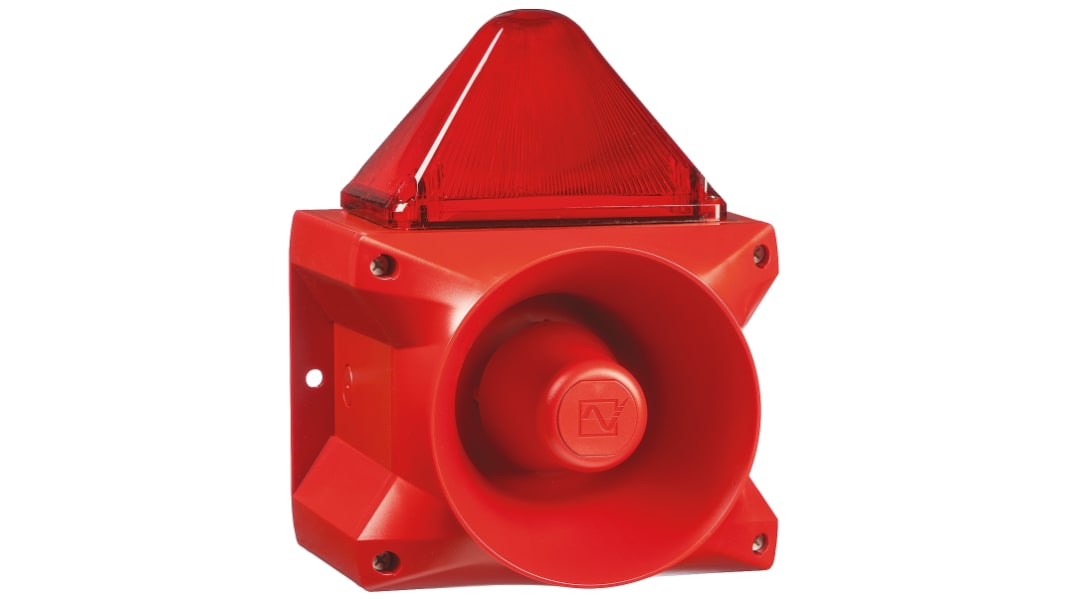

Pfannenberg PA x 20-15 Series Red Sounder-Beacon Combination, IP66 24V dc Base 110 dB @ 1m Electronic
- RS Stock No.:
- 846-3799
- Mfr. Part No.:
- 23372805000
- Manufacturer:
- Pfannenberg
Subtotal (1 unit)*
PHP76,869.39
(exc. VAT)
PHP86,093.72
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from October 19, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP76,869.39 |
*price indicative
- RS Stock No.:
- 846-3799
- Mfr. Part No.:
- 23372805000
- Manufacturer:
- Pfannenberg
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pfannenberg | |
| Product Type | Sounder-Beacon Combination | |
| Lens Colour | Red | |
| Current Type | DC | |
| Light Effect | Flashing | |
| Current Consumption | 335mA | |
| Sounder Type | Electronic | |
| Mount Type | Base | |
| Series | PA x 20-15 | |
| Bulb Type | Xenon | |
| Maximum Supply Voltage | 24V dc | |
| Housing Colour | Red | |
| Sound Level at 1m | 110dB | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 55°C | |
| Maximum Sound Level | 12dB | |
| IP Rating | IP66 | |
| Number of Tones | 80 | |
| Hazardous Area Certification | No | |
| Standards/Approvals | UL | |
| Housing Material | ABS/Polycarbonate | |
| Select all | ||
|---|---|---|
Brand Pfannenberg | ||
Product Type Sounder-Beacon Combination | ||
Lens Colour Red | ||
Current Type DC | ||
Light Effect Flashing | ||
Current Consumption 335mA | ||
Sounder Type Electronic | ||
Mount Type Base | ||
Series PA x 20-15 | ||
Bulb Type Xenon | ||
Maximum Supply Voltage 24V dc | ||
Housing Colour Red | ||
Sound Level at 1m 110dB | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 55°C | ||
Maximum Sound Level 12dB | ||
IP Rating IP66 | ||
Number of Tones 80 | ||
Hazardous Area Certification No | ||
Standards/Approvals UL | ||
Housing Material ABS/Polycarbonate | ||
- COO (Country of Origin):
- DE
Pfannenberg Patrol Flashing Sounder Beacons, PA-X-20-15
The Patrol PA-X-20-15 is an electronic sounder beacon with a 120 dB output and a flashing xenon light effect. It has 80 alarm tones and a 15J flash. The PA X-20-15 has a large signalling range and is safe and easy to install.
Rectangular PC/ABS blend housing with pyramid style PC lens
Safe - an incorrect installation is virtually impossible
Easy - significantly shorter assembly and installation times
Economical - extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders
Installation options with external lugs or internal holes
Pre-wired sounder and light ex works
Corresponding light intensity available for every sound pressure level
80 alarm tones, 120 dB
Visual covering distance of 178 m
IK08 Impact-proof housing
IP66 protection according to EN 60529
15J flash
10 year warranty
Approvals
UL, GL.
