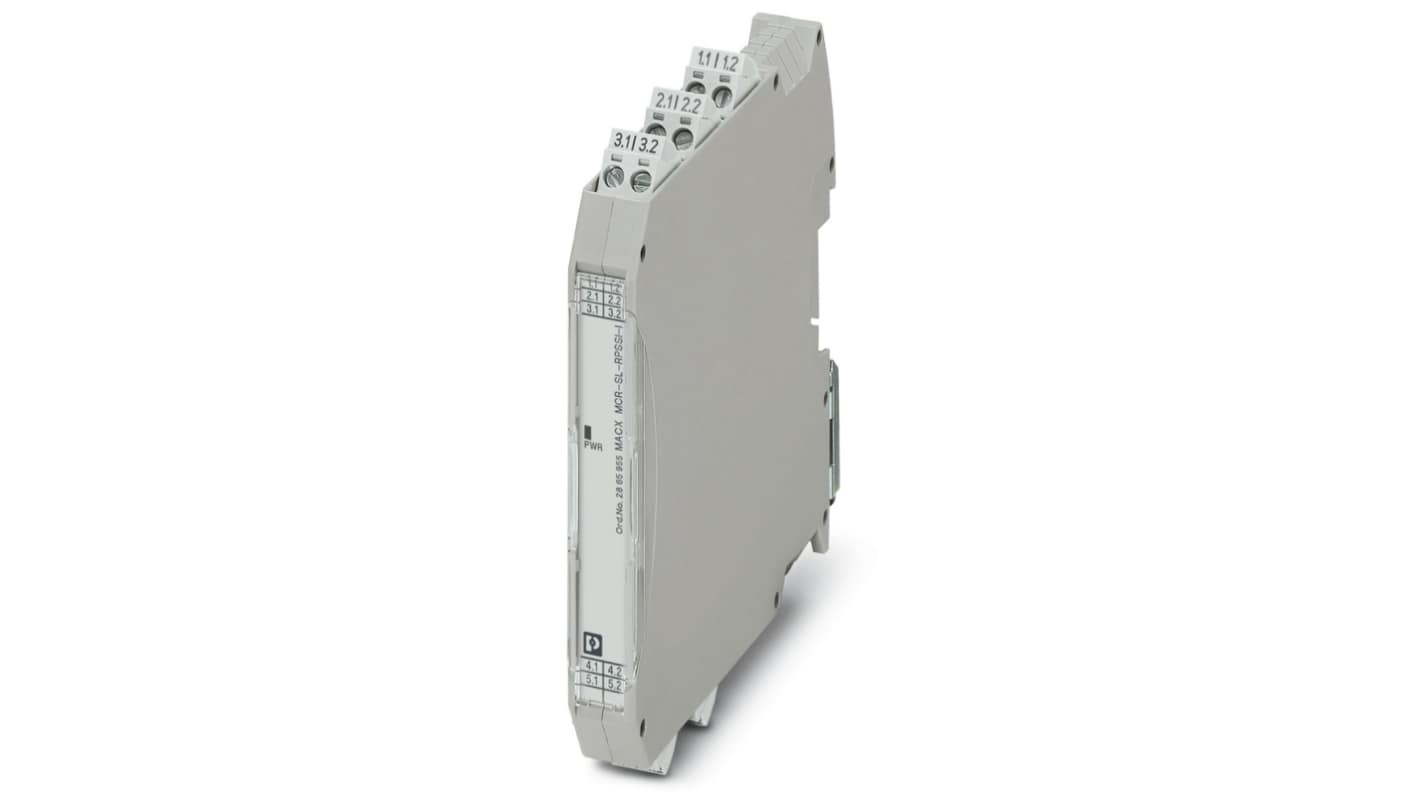

Phoenix Contact MACX MCR-SL-RPSSI-I Series Signal Conditioner, Current Input, Current Output, 19.2V dc, 30 V dc Supply,
- RS Stock No.:
- 801-6185
- Mfr. Part No.:
- 2865955
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
PHP22,163.91
(exc. VAT)
PHP24,823.58
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP22,163.91 |
*price indicative
- RS Stock No.:
- 801-6185
- Mfr. Part No.:
- 2865955
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Signal Conditioner | |
| Input Signal Type | Current | |
| Output Signal Type | Current | |
| Input Range | 0 → 20 mA | |
| Output Range | 0 → 20 mA | |
| Supply Voltage | 19.2V dc, 30V dc | |
| Hazardous Area Certification | ATEX | |
| Mount Type | DIN Rail | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Temperature | -20°C | |
| IP Rating | IP20 | |
| SIL Level | 2 | |
| Signal Conditioner Type | Signal Conditioners with SIL Functional Safety | |
| Standards/Approvals | CCC, EN 60079-15, EN 61000-6-2, GB/T 3836.3, IEC/EN 60079-7, UL 61010, IEC/EN 61010-1, INMETRO, CE, IEC/EN 60079-11, UL 508, EN 61508, GB/T 3836.1, EN 61000-6-4, DNV GL | |
| Series | MACX MCR-SL-RPSSI-I | |
| Number of Channels | 1 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Signal Conditioner | ||
Input Signal Type Current | ||
Output Signal Type Current | ||
Input Range 0 → 20 mA | ||
Output Range 0 → 20 mA | ||
Supply Voltage 19.2V dc, 30V dc | ||
Hazardous Area Certification ATEX | ||
Mount Type DIN Rail | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Temperature -20°C | ||
IP Rating IP20 | ||
SIL Level 2 | ||
Signal Conditioner Type Signal Conditioners with SIL Functional Safety | ||
Standards/Approvals CCC, EN 60079-15, EN 61000-6-2, GB/T 3836.3, IEC/EN 60079-7, UL 61010, IEC/EN 61010-1, INMETRO, CE, IEC/EN 60079-11, UL 508, EN 61508, GB/T 3836.1, EN 61000-6-4, DNV GL | ||
Series MACX MCR-SL-RPSSI-I | ||
Number of Channels 1 | ||
- COO (Country of Origin):
- DE
Phoenix Contact Signal Conditioner, 0 to 20mA Input, 19.2 to 30V DC Supply Voltage - MACX MCR-SL-RPSSI-I - 2865955
Gather more usable data from your sensors with this signal conditioner from Phoenix Contact. It converts input signals from your sensing instruments into readable data that's ready for computer processing and analysis. As it's compatible with input signals between 0 and 20mA, the conditioner is ideal for gathering data from delicate sensors. Its typical transmission error of just 0.05% ensures you receive accurate data, even after amplification.
The conditioner has a low power consumption of less than 1.1W at 24V DC, making it an energy-efficient choice. Thanks to its three-way electrical isolation, it protects your wires against damage from high currents. The signal conditioner features plug-in or screw-cage connections for simple and secure installation without the need for specialised tools.
• Safety Integrity Level 2 certification according to EN 61508 standard, meaning it has a low risk of failure
• ATEX certified for safe use in potentially explosive environments
• Broad operating temperature range of -20°C to +60°C for use in demanding environments
• IP20 (ingress protection) rating means it's touch-proof and protected against objects larger than 12mm in size
MACX MCR-SL-RPSSI-I Series Repeater Power Supply / Signal Conditioner
The intrinsically safe interface blocks of the MACX Analog Ex series offer the widest range of functions in the narrowest design.
Ex-i signal conditioner for many applications
Electrical 3-way isolation
Screw or spring-cage connections are available
IP20 protection
Width only 12.5 mm
Approvals
CE
