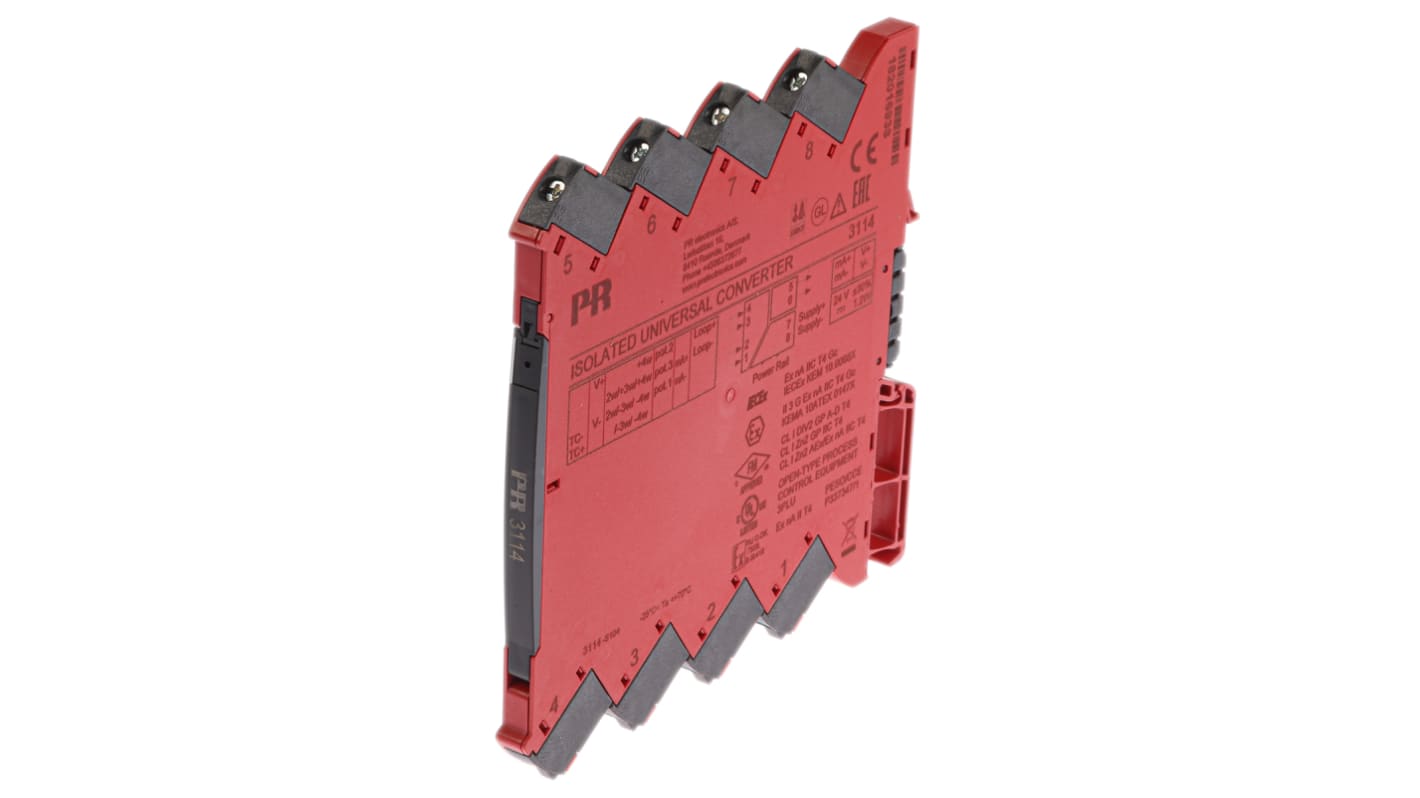

PR Electronics 3100 Series Isolated Universal Converter, Universal Input, Current/Voltage Output, 16.8V dc, 31.2 V dc

RS Stock No.:: 796-7095
Mfr. Part No.:: 3114
Manufacturer:: PR Electronics

PR Electronics 3100 Series Isolated Universal Converter, Universal Input, Current/Voltage Output, 16.8V dc, 31.2 V dc

Subtotal (1 unit)*

PHP24,571.01

(exc. VAT)

PHP27,519.53

(inc. VAT)

FREE delivery for orders over ₱5,000.00

In Stock

5 unit(s) ready to ship from another location
Plus 22 unit(s) shipping from September 30, 2026
Plus 16 unit(s) shipping from October 14, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP24,571.01

*price indicative

RS Stock No.:: 796-7095
Mfr. Part No.:: 3114
Manufacturer:: PR Electronics

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	PR Electronics
	Product Type	Isolated Universal Converter
	Input Signal Type	Universal
	Output Signal Type	Current/Voltage
	Input Range	0 → 20 mA, 0 → 12 V dc
	Output Range	0 → 10 V dc, 0 → 20 mA
	Isolation	2.5kV ac
	Supply Voltage	16.8, 31.2V dc
	Hazardous Area Certification	ATEX
	Mount Type	DIN Rail
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Terminal Type	Screw
	IP Rating	IP20
	Standards/Approvals	LVD:2014/35/EU, RoHS:2011/65/EU, DNV-GL Marine:Stand. f. Certific. No. 2.4, EAC Ex:TR-CU 012/2011, EMC:2014/30/EU, UL:UL 61010-1, EAC:TR-CU 020/2011
	Series	3100

	Select all
	Brand PR Electronics
	Product Type Isolated Universal Converter
	Input Signal Type Universal
	Output Signal Type Current/Voltage
	Input Range 0 → 20 mA, 0 → 12 V dc
	Output Range 0 → 10 V dc, 0 → 20 mA
	Isolation 2.5kV ac
	Supply Voltage 16.8, 31.2V dc
	Hazardous Area Certification ATEX
	Mount Type DIN Rail
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Terminal Type Screw
	IP Rating IP20
	Standards/Approvals LVD:2014/35/EU, RoHS:2011/65/EU, DNV-GL Marine:Stand. f. Certific. No. 2.4, EAC Ex:TR-CU 012/2011, EMC:2014/30/EU, UL:UL 61010-1, EAC:TR-CU 020/2011
	Series 3100

COO (Country of Origin):: DK

3114 Multifunctional Converter

PR 3114 isolated multifunction converter for conversion of linear resistance variation to a standard analogue current / voltage signal, i.e. from solenoids and butterfly valves or linear movements with attached potentiometer.

The PR 3000 series is a family of compact, fast, and easy to use 6 mm signal conditioners with exceptional performance and EMC immunity for dedicated applications – including indoor and outdoor environments with wide temperature fluctuations. Designed and rated to operate between 25 ˚C to +70 ˚C, making these devices a good choice in applications where the ambient temperature changes greatly. These high-performance devices utilize our innovative microprocessor technology to provide high base accuracy, low power consumption, and maximum protection against error due to electromagnetic noise.

Features and Benefits

• High basic 0.05% accuracy in all available signal ranges;• 2.5 kVAC isolation and have excellent noise immunity;• NAMUR NE21 burst A criteria;• Transmits rapid changes in process measurements to PLC/DCS for fast and accurate monitoring of critical signals;• Low temperature coefficient better than 0.01% / °C in a wide -25 to +70°C ambient temperature range for precise measurements ;• Long term accuracy better than 0.1% / 3 years with no need for re-calibration;• Installation in ATEX Ex zone 2 / IECEx Zone 2 / FM division 2

DIP-switch programming

Re-calibration is not needed after changing the DIP-switch range settings. Just change the DIP-switch, cycle the power to the unit and obtain the new, pre-calibrated I/O range. HART programming is enabled for selected devices.

Mounting

Devices can be mounted both vertically and horizontally with no air gap separation required. The devices snap onto a power rail or DIN rail and are easily detached by lifting the bottom lock.

High level of isolation

Safe galvanic isolation of 2.5 kVAC provides high noise immunity and prevents ground loops for accurate delivery of the process signal to your control system.

Device status indicators

A front LED indicates device status, e.g. an error in the set-up, sensor or hardware.

Over voltage- / polarity protection

All terminals can withstand up to ±31.2 VDC and are protected against incorrect supply wiring to ensure safe, error-free installation.
