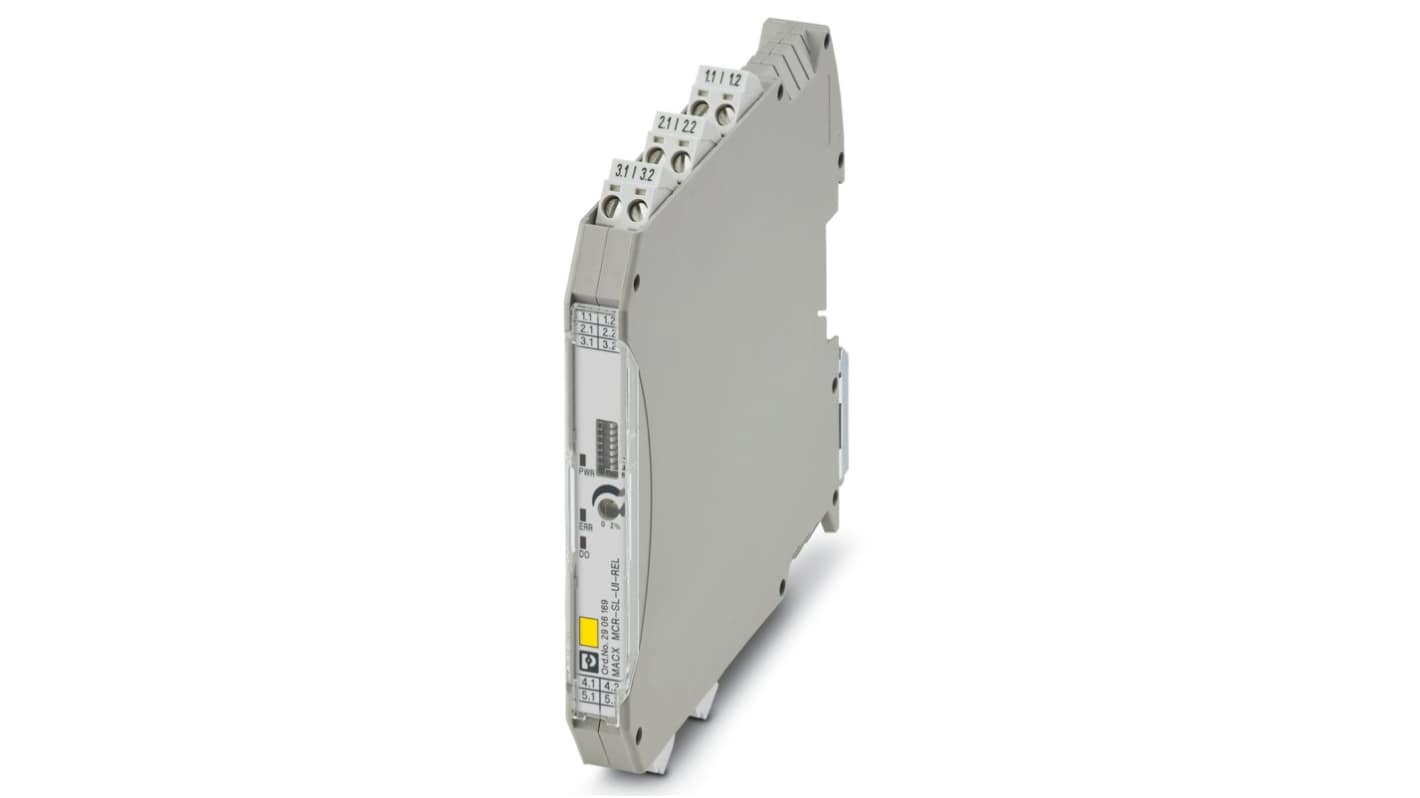

Phoenix Contact MACX MCR Series Signal Conditioner, Current/Voltage Input, Relay Output, 24V dc Supply, ATEX
- RS Stock No.:
- 189-2316
- Mfr. Part No.:
- 2906169
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
PHP21,543.05
(exc. VAT)
PHP24,128.22
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP21,543.05 |
*price indicative
- RS Stock No.:
- 189-2316
- Mfr. Part No.:
- 2906169
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Signal Conditioner | |
| Input Signal Type | Current/Voltage | |
| Output Signal Type | Relay | |
| Input Range | 0.1 → 10 V, 0.18 → 21 mA | |
| Output Range | 0.2 A 24 V dc, 4 A | |
| Supply Voltage | 24V dc | |
| Hazardous Area Certification | ATEX | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 65°C | |
| IP Rating | IP20 | |
| Signal Conditioner Type | Signal Conditioners with SIL | |
| SIL Level | 2 | |
| Standards/Approvals | EN 61000-6-2, IEC/EN 60079-7, IEC/EN 61010-1, CE, GB/T 3836.1, EMC, GB/T 3836.3, DNV GL TAA000020C, EN 61000-6-4, GB/T 3836.8 | |
| Series | MACX MCR | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Signal Conditioner | ||
Input Signal Type Current/Voltage | ||
Output Signal Type Relay | ||
Input Range 0.1 → 10 V, 0.18 → 21 mA | ||
Output Range 0.2 A 24 V dc, 4 A | ||
Supply Voltage 24V dc | ||
Hazardous Area Certification ATEX | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 65°C | ||
IP Rating IP20 | ||
Signal Conditioner Type Signal Conditioners with SIL | ||
SIL Level 2 | ||
Standards/Approvals EN 61000-6-2, IEC/EN 60079-7, IEC/EN 61010-1, CE, GB/T 3836.1, EMC, GB/T 3836.3, DNV GL TAA000020C, EN 61000-6-4, GB/T 3836.8 | ||
Series MACX MCR | ||
- COO (Country of Origin):
- DE
Limit value switch with input for active current and voltage signals and a limit-value relay output (changeover contact). Can be set via DIP switch and potentiometer, galvanic 3-way electrical isolation, screw connection.
Configurable limit-value switch
Input [Ex ia] for active current signals (0.2...20 mA) or active voltage signals (0.1...10 V)
Relay output with PDT
Configuration without software via DIP switches and potentiometer
Safe 3-way electrical isolation
Power supply possible via DIN rail connector
Plug-in connection terminal blocks, with either screw or push-in connection technology
Housing width of 12.5 mm
