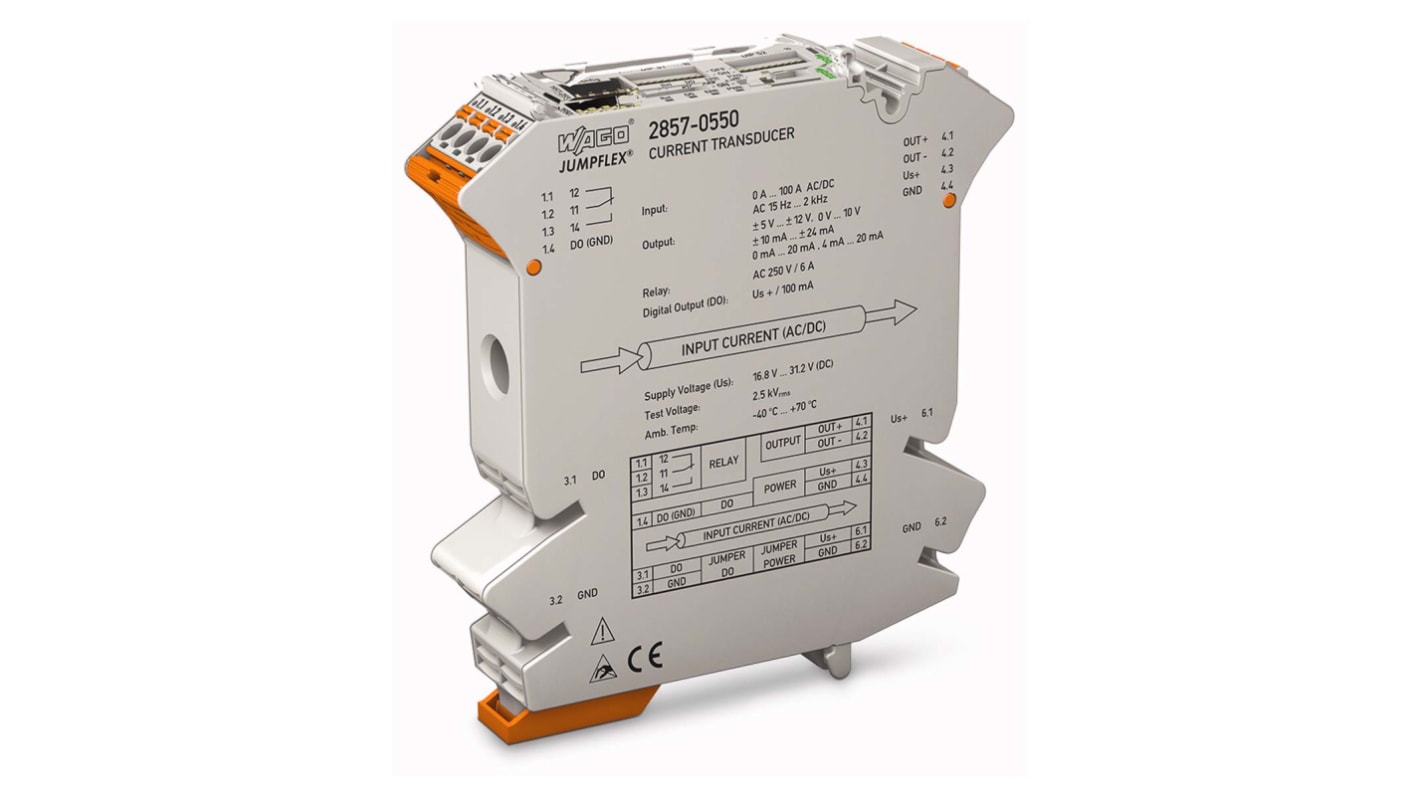

WAGO Jumpflex Series Current Measuring Transducer, Current Input, Digital, Relay Output, 24V dc Supply
- RS Stock No.:
- 135-7398
- Mfr. Part No.:
- 2857-550
- Manufacturer:
- WAGO
Subtotal (1 unit)*
PHP49,167.91
(exc. VAT)
PHP55,068.06
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 2 unit(s) shipping from November 23, 2026
- Plus 2 unit(s) shipping from December 10, 2026
- Plus 2 unit(s) shipping from January 14, 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP49,167.91 |
*price indicative
- RS Stock No.:
- 135-7398
- Mfr. Part No.:
- 2857-550
- Manufacturer:
- WAGO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Current Measuring Transducer | |
| Input Signal Type | Current | |
| Output Signal Type | Digital, Relay | |
| Input Range | (DC) -100 → 100 A, (AC) 500 mA → 100 A | |
| Output Range | ± 10 V, ± 20 mA | |
| Isolation | 4kV | |
| Supply Voltage | 24V dc | |
| Hazardous Area Certification | No | |
| Mount Type | DIN Rail | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Terminal Type | Push-in | |
| IP Rating | IP20 | |
| Standards/Approvals | EN 61010-1, EN 61000-6-4, EN 50121-3-2, CE, EN 61326-2-3, EN 61000-6-2 | |
| Series | Jumpflex | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Current Measuring Transducer | ||
Input Signal Type Current | ||
Output Signal Type Digital, Relay | ||
Input Range (DC) -100 → 100 A, (AC) 500 mA → 100 A | ||
Output Range ± 10 V, ± 20 mA | ||
Isolation 4kV | ||
Supply Voltage 24V dc | ||
Hazardous Area Certification No | ||
Mount Type DIN Rail | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Terminal Type Push-in | ||
IP Rating IP20 | ||
Standards/Approvals EN 61010-1, EN 61000-6-4, EN 50121-3-2, CE, EN 61326-2-3, EN 61000-6-2 | ||
Series Jumpflex | ||
- COO (Country of Origin):
- DE
2857 Series Current Signal Conditioner
Wago 2857 series current signal conditioner measures AC-DC currents up to 100 A, while converting the measured current into an analogue standard signal at the output. Providing both digital signal output and relay with changeover contact.
Features and Benefits
Clipping capability provides analogue signal limitation to output end values;Adjustable software filter;Input/output response simulation via configuration display;Safe 3 way isolation with 4 kV test voltage per EN 61140
Wago JUMPFLEX Isolation Amplifiers and Signal Conditioners
