Phoenix Contact MCR-S10 Series Current Measuring Transducer, Current Input, Current Output, 20V dc, 30 V dc Supply,

RS Stock No.:: 337-2746
Mfr. Part No.:: 2814728
Manufacturer:: Phoenix Contact

Phoenix Contact MCR-S10 Series Current Measuring Transducer, Current Input, Current Output, 20V dc, 30 V dc Supply,

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

Phoenix Contact ECM-UC Series Current Measuring Transducer, Current Input, Current/Voltage Output, 24V dc Supply

RS Stock No.: 498-152

Each

PHP39,198.93

(exc. VAT)

PHP43,902.80

(inc. VAT)

RS Stock No.:: 337-2746
Mfr. Part No.:: 2814728
Manufacturer:: Phoenix Contact

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Product Type	Current Measuring Transducer
	Input Signal Type	Current
	Output Signal Type	Current
	Input Range	55 A
	Output Range	0 → 20 mA
	Supply Voltage	20, 30V dc
	Hazardous Area Certification	Groups A, C, D, B, Div 2, Zone 2, Class I, Ex nA nC IIC T4 Gc X, AEx nA nC IIC T4
	Mount Type	Chassis
	Maximum Operating Temperature	60°C
	Terminal Type	Screw
	Minimum Operating Temperature	-20°C
	IP Rating	IP20
	Standards/Approvals	UL, USA/Canada, cULus Recognised, cULus Listed, EAC, cUL Listed, cUL, UL Listed, CE
	Series	MCR-S10

	Select all
	Brand Phoenix Contact
	Product Type Current Measuring Transducer
	Input Signal Type Current
	Output Signal Type Current
	Input Range 55 A
	Output Range 0 → 20 mA
	Supply Voltage 20, 30V dc
	Hazardous Area Certification Groups A, C, D, B, Div 2, Zone 2, Class I, Ex nA nC IIC T4 Gc X, AEx nA nC IIC T4
	Mount Type Chassis
	Maximum Operating Temperature 60°C
	Terminal Type Screw
	Minimum Operating Temperature -20°C
	IP Rating IP20
	Standards/Approvals UL, USA/Canada, cULus Recognised, cULus Listed, EAC, cUL Listed, cUL, UL Listed, CE
	Series MCR-S10

COO (Country of Origin):: DE

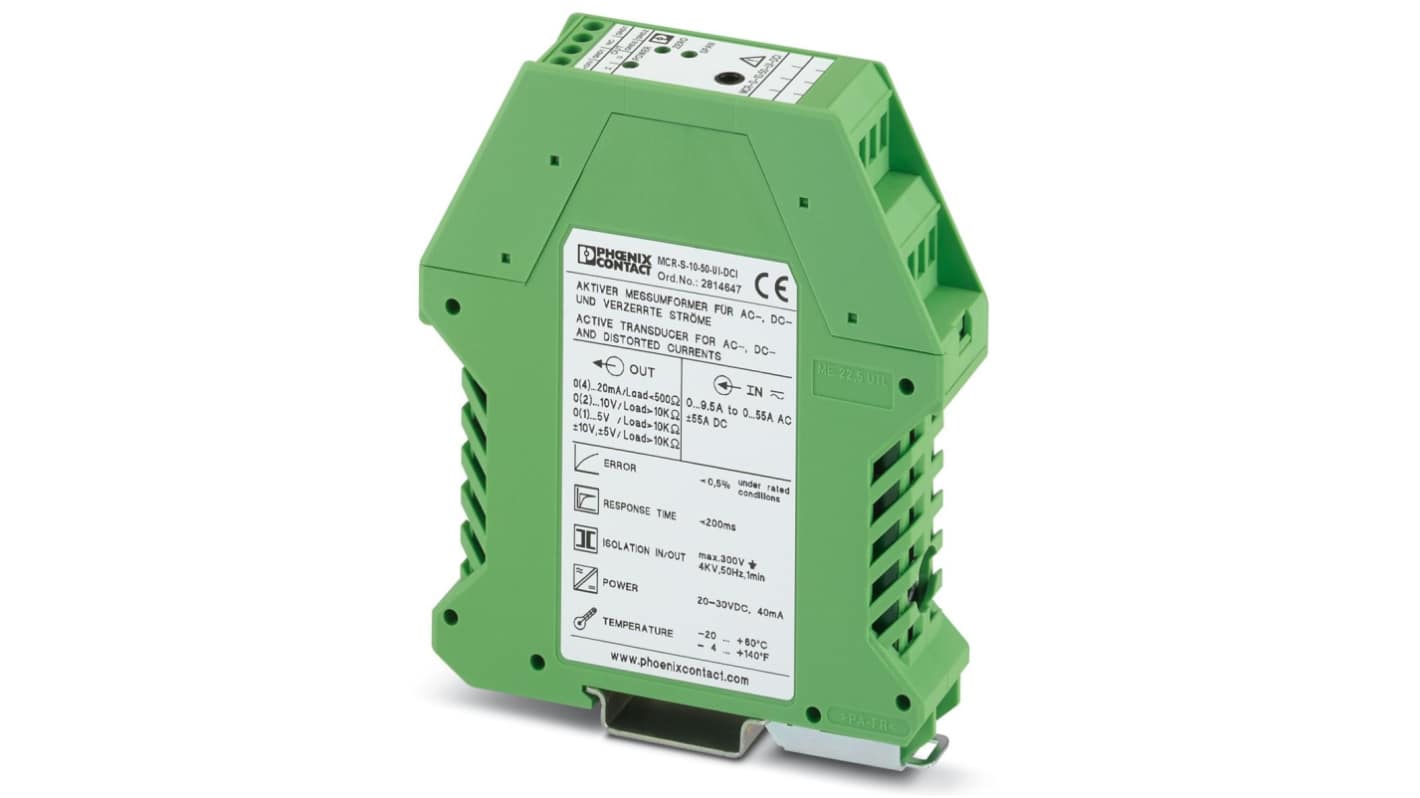

Phoenix Contact Current Transformer, 3 Way, 20 to 30V DC - MCR-S10-50-UI-DCI-NC - 2814728

Convert high primary current to low secondary levels using this Phoenix Contact current transformer. This device operates in a power supply to prevent overcurrent and lets you safely monitor voltage with an electrical measuring instrument like an ammeter. The 55:1 primary to secondary current ratio means you can use this transformer to convert large voltage inputs up to 55A AC/DC. A handy LED (light-emitting diode) signal conveniently shows you the device's status.

As it has a wide operating temperature range of -20°C to +60°C, this transformer's a versatile choice for use in demanding industrial environments. Phoenix Contact's trademark green casing is made from PA (polyamide) material that's abrasion-resistant and durable.

The chassis mount design lets you mount this current transformer in any position without complex wiring. Install it in your electrical control units for accurate reading of alternating, direct and distorted currents.

Features & Benefits

• Configuration via DIP (dual in-line package) switches or MCR/PI-CONF-WIN software to adjust settings

• IP (ingress protection) rating of IP20 prevents damage from solid objects over 12mm in size

• Compact dimensions of 99 (H) x 22.5 (W) x 114.5mm (D)

Phoenix Contact Current Transducer, MCR-S

The Phoenix Contact MCR-S series of Current Transducer brings you reliable signal conversion, allowing you to push the boundaries of your automation, measurement or control systems. Compact in nature and being able to operate in different temperatures, the MCR-S series offers you the stability needed in your working environment. The device is fully programmable and configurable, perfect for measuring direct, alternating or distorted currents.

Features and Benefits

• Built-in 3 number of inputs, with a current range of 0 A to 11 A (AC/DC)

• Power supply voltage range between 20 V DC to 30 V DC, with a Max. current consumption of less than 40 mA (without load)

• The device can be set up via DIP switches or MCR/PI-CONF-WIN configuration software

• True r.m.s value measurement

• Screw connection, M3 screw thread, 8 mm stripping length

• Different coloured status LED colours, available in green, yellow etc.

• IP20 degree of protection, noise immunity to EN 61000-6-2

• Overvoltage electrical category 3

• CE-compliant

Typical Applications

• Control systems
