Ruland Shaft Collar, One Piece, Clamp Screw, OD 28 mm OD, W 11mm, Aluminium
- RS Stock No.:
- 174-7101
- Mfr. Part No.:
- OF-MCL-12-A
- Manufacturer:
- Ruland
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
PHP1,293.30
(exc. VAT)
PHP1,448.50
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP1,293.30 |
| 5 - 9 | PHP1,254.49 |
| 10 + | PHP1,216.87 |
*price indicative
- RS Stock No.:
- 174-7101
- Mfr. Part No.:
- OF-MCL-12-A
- Manufacturer:
- Ruland
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Shaft Collar | |
| One/Two Piece | One Piece | |
| Material | Aluminium | |
| Single/Double Wide | Single Wide | |
| Fastening | Clamp Screw | |
| Threaded Bore Size | M4 x 12 | |
| Finish | Bright | |
| Bore Type | Plain | |
| Standards/Approvals | REACH, RoHS3, DIN 912 12.9 | |
| Series | OF-MCL | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Shaft Collar | ||
One/Two Piece One Piece | ||
Material Aluminium | ||
Single/Double Wide Single Wide | ||
Fastening Clamp Screw | ||
Threaded Bore Size M4 x 12 | ||
Finish Bright | ||
Bore Type Plain | ||
Standards/Approvals REACH, RoHS3, DIN 912 12.9 | ||
Series OF-MCL | ||
- COO (Country of Origin):
- US

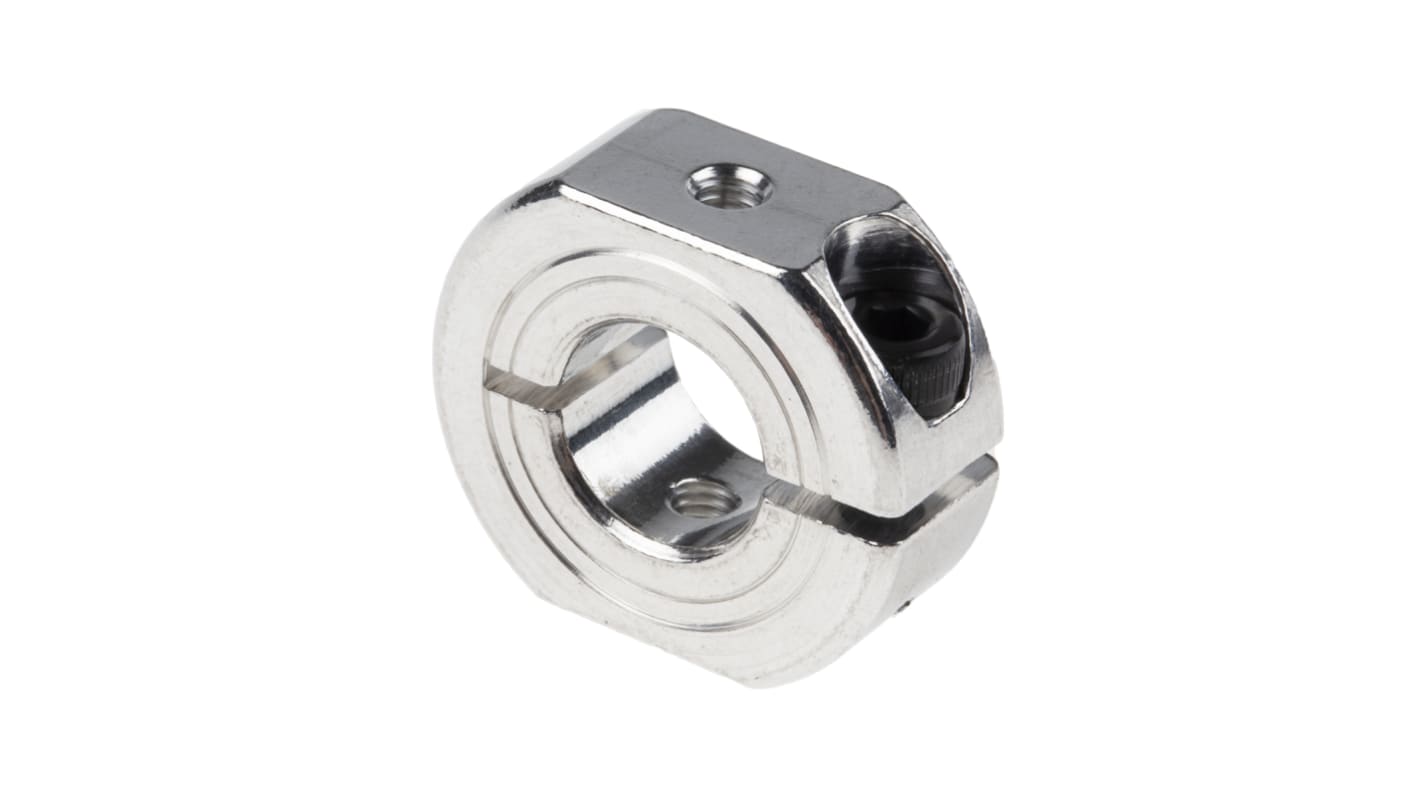

Ruland shaft collar one-piece clamp screw
The Ruland one-piece shaft collar has dimensions of 12mm bore, 28mm OD and 11mm width. It is made from aluminium. It has OD flats and tapped holes for mounting shaft collars to each other or the adjacent components. It can be used in applications requiring a more uniform holding power and higher axial load capacity than setscrew collars. It is easier to remove and reposition than setscrew collars and is effective on both, hard and soft shafts. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.05mm) which is critical for the alignment. It is commonly used for guiding, spacing, stopping, mounting and component alignment.
Features and Benefits
• Includes forged socket-head cap screws for securing the collar onto the shaft
• Service temperatures ranges between -40°C and 107°C
Applications
• Agricultural implements
• Office machines
• Exercise equipment
• Mixers
• Printing press
Certifications
• DIN 912 12.9
• REACH certification
