Ruland Shaft Collar, Two Piece, Clamp Screw, OD 78 mm OD, W 19 mm, Carbon Steel
- RS Stock No.:
- 174-6786
- Mfr. Part No.:
- MSP-50-F
- Manufacturer:
- Ruland
Bulk discount available
Subtotal (1 unit)*
PHP2,585.09
(exc. VAT)
PHP2,895.30
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 4 | PHP2,585.09 |
| 5 - 9 | PHP2,507.53 |
| 10 + | PHP2,432.31 |
*price indicative
- RS Stock No.:
- 174-6786
- Mfr. Part No.:
- MSP-50-F
- Manufacturer:
- Ruland
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore Size | 50 mm | |
| Product Type | Shaft Collar | |
| One/Two Piece | Two Piece | |
| Material | Carbon Steel | |
| Single/Double Wide | Double Wide | |
| Outside Diameter | 78 mm | |
| Fastening | Clamp Screw | |
| Threaded Bore Size | M8 x 25 | |
| Width | 19 mm | |
| Finish | Black Oxide | |
| Standards/Approvals | DIN 912 12.9, RoHS3, REACH | |
| Bore Type | Plain | |
| Series | MSP | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Bore Size 50 mm | ||
Product Type Shaft Collar | ||
One/Two Piece Two Piece | ||
Material Carbon Steel | ||
Single/Double Wide Double Wide | ||
Outside Diameter 78 mm | ||
Fastening Clamp Screw | ||
Threaded Bore Size M8 x 25 | ||
Width 19 mm | ||
Finish Black Oxide | ||
Standards/Approvals DIN 912 12.9, RoHS3, REACH | ||
Bore Type Plain | ||
Series MSP | ||
- COO (Country of Origin):
- US
Ruland Shaft Collar One-piece Clamp Screw

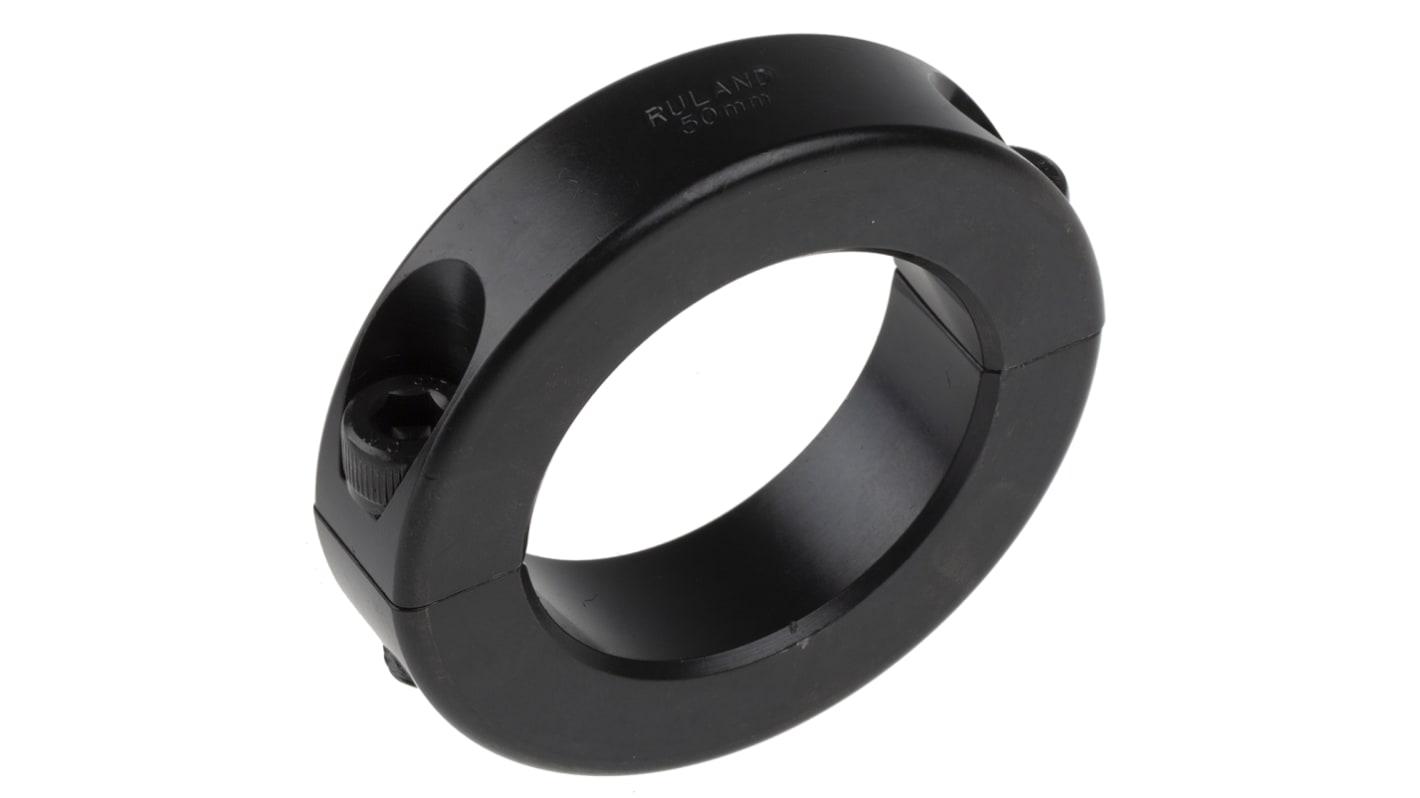

The Ruland two-piece shaft collar has dimensions of 50mm bore, 78mm OD and 19mm width. It is made from 1215 carbon steel bar with hot process black oxide, impregnated with naphthenic oil and centrifugally dried finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.05mm) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M8x25 dimension.
Features and Benefits
• Lightweight
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C
Applications
• Component alignment
• Component mounting
• Loadbearing face
• Mechanical stop
Certifications
• DIN 912 12.9
• REACH certification
