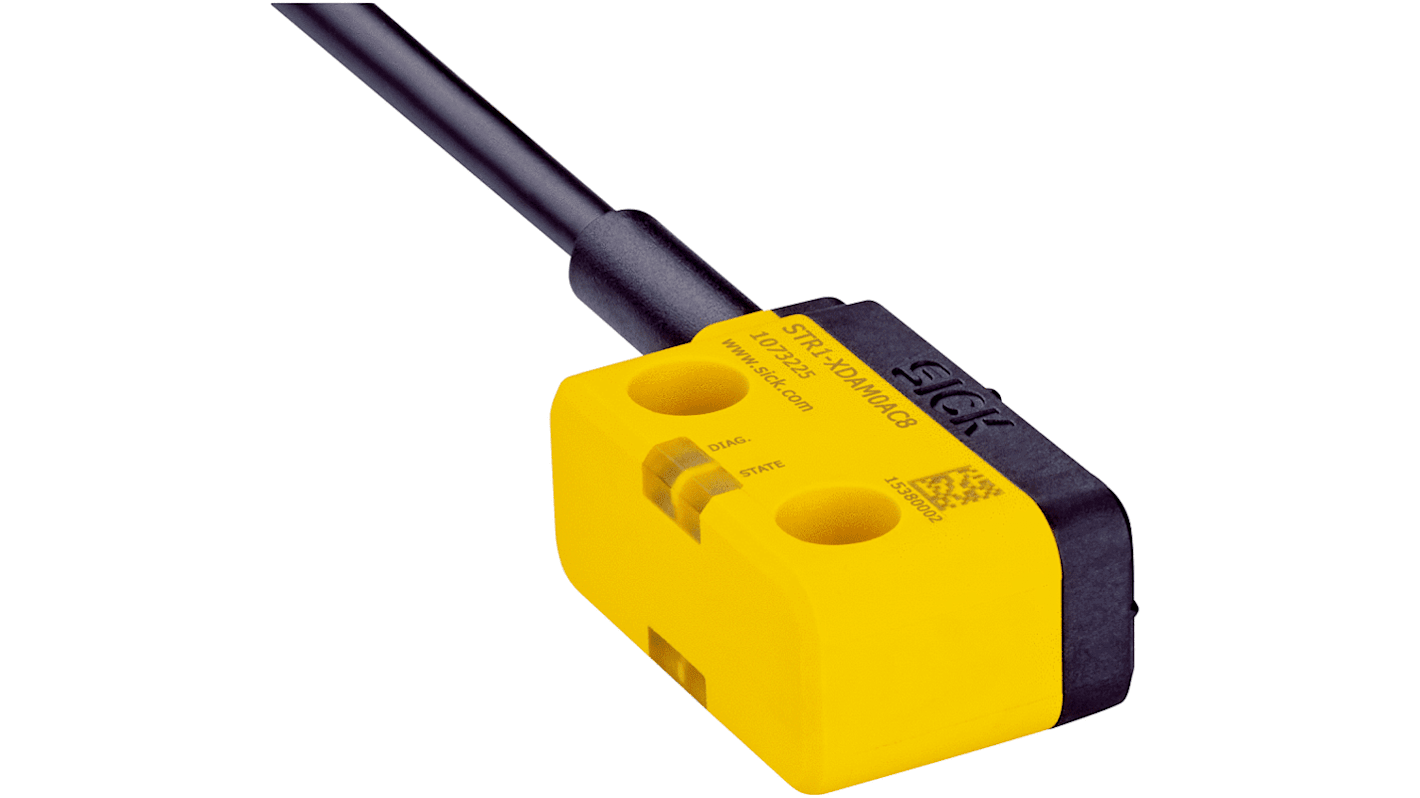

SICK STR1 Safety Switch, RFID, Vistal

RS Stock No.:: 285-4305
Mfr. Part No.:: STR1-SAXM10P8
Manufacturer:: SICK

Subtotal (1 unit)*

PHP16,063.96

(exc. VAT)

PHP17,991.64

(inc. VAT)

FREE delivery for orders over ₱5,000.00

In Stock

Plus 3 unit(s) shipping from November 02, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP16,063.96

*price indicative

RS Stock No.:: 285-4305
Mfr. Part No.:: STR1-SAXM10P8
Manufacturer:: SICK

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Product Type	Safety Switch
	Lock Style	RFID
	Actuator Included	No
	Safety Contacts	1
	Housing Material	Vistal
	Series	STR1
	Contact DC Voltage	24V dc
	Contact AC Voltage	230V ac
	Minimum Operating Temperature	-30°C
	IP Rating	IP67, IP69K
	Switch Contact Current	100mA
	Maximum Operating Temperature	70°C
	Hazardous Area Certification	No
	Standards/Approvals	IEC 60529
	Depth	26mm
	Width	40mm
	Length	18mm
	Number of Head Directions	5

	Select all
	Brand SICK
	Product Type Safety Switch
	Lock Style RFID
	Actuator Included No
	Safety Contacts 1
	Housing Material Vistal
	Series STR1
	Contact DC Voltage 24V dc
	Contact AC Voltage 230V ac
	Minimum Operating Temperature -30°C
	IP Rating IP67, IP69K
	Switch Contact Current 100mA
	Maximum Operating Temperature 70°C
	Hazardous Area Certification No
	Standards/Approvals IEC 60529
	Depth 26mm
	Width 40mm
	Length 18mm
	Number of Head Directions 5

Datasheet - STR1-SAXM10P8

COO (Country of Origin):: MY

SICK STR1 Series Safety Switch, IP67, 24V DC Supply Voltage - STR1-SAXM10P8

This safety switch is a non-contact RFID interlock designed for machine-guard monitoring in industrial settings. It provides dual safe outputs and an auxiliary contact for integration into safety circuits, operates from a 24V DC supply, and is suited to demanding environments thanks to high ingress protection and a robust Vistal housing. The device supports safe series connection with diagnostics and multiple Active sensing surfaces for versatile mounting and actuation directions.

Features and Benefits:

• SIL3 safety integrity enabling high-demand safety applications
• PLe Category 4 ensuring high performance level
• IP69K rating allowing wash-down and hygienic cleaning
• 2 safe outputs Plus 1 auxiliary for flexible wiring
• 10m cable included supporting straightforward installation

Applications

• Suitable for guarded doors on wet-process production lines
• Used with safety relays in series-connected safety architectures
• Ideal for food-industry wash-down environments requiring IP69K
• Can be used for robot-cell perimeter guard monitoring
• Used for machine guards requiring RFID actuator operation

What supply voltage range does it accept?

It accepts 24V DC with an operating range of 19.2V DC to 28.8V DC.

How does it indicate status and diagnostics?

LEDs provide status display and diagnostic indication for operator feedback.

What mechanical stresses can it withstand?

It meets vibration resistance of 10Hz to 55Hz, 1mm and shock resistance of 30g, 11 ms.

What cable and connection options are provided?

The device includes a 10m, 7-core PVC cable with a 0.12mm² conductor cross-section.

Which safety outputs and response times apply?

It uses self-monitoring semiconductor outputs (OSSDs) with a typical response time of 40 MS and a release time of 100 MS.
