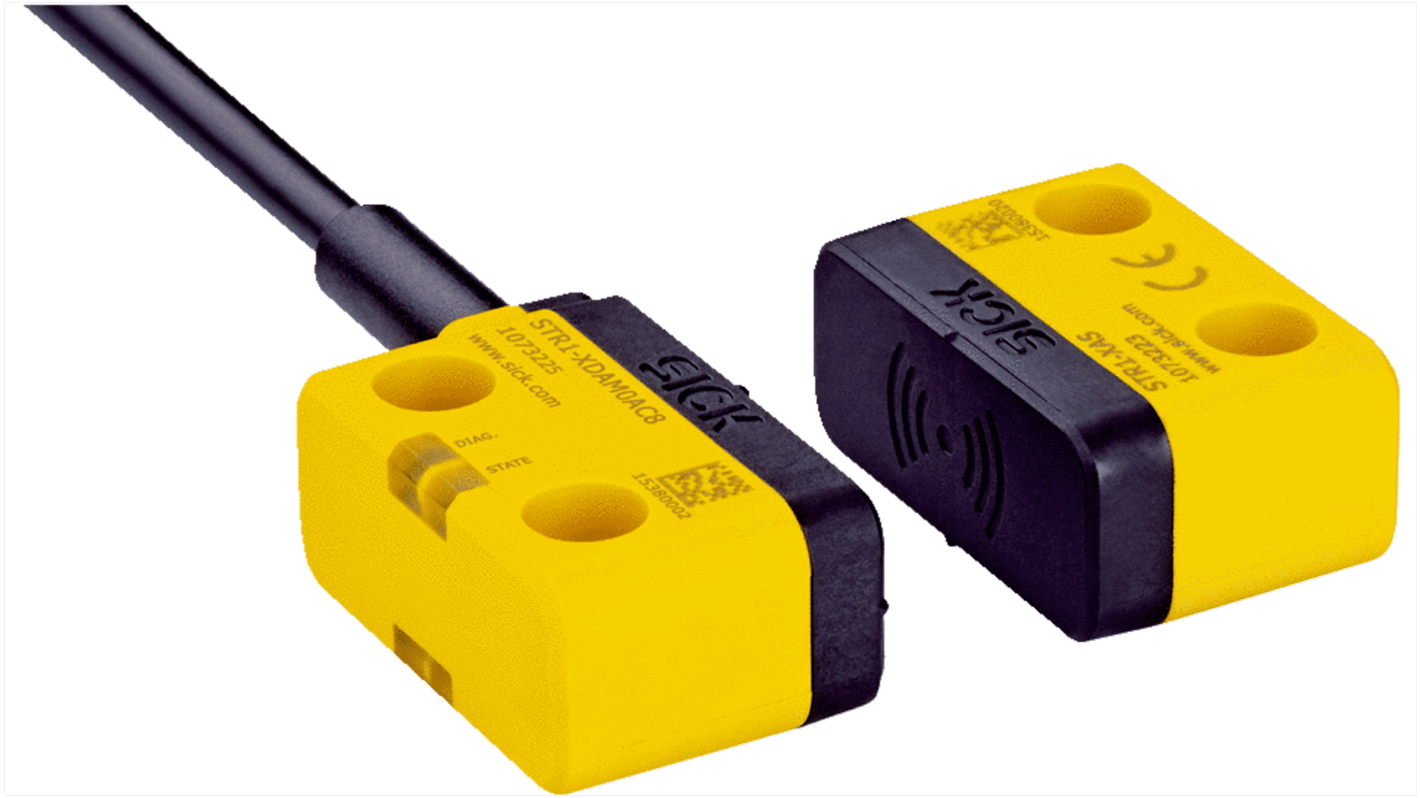

SICK STR1 Safety Interlock Switch Actuator Included, Vistal
- RS Stock No.:
- 285-9017
- Mfr. Part No.:
- STR1-SASM10P5
- Manufacturer:
- SICK
Subtotal (1 unit)*
PHP15,020.92
(exc. VAT)
PHP16,823.43
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Stocked by manufacturer
- Ready to ship from May 18, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP15,020.92 |
*price indicative
- RS Stock No.:
- 285-9017
- Mfr. Part No.:
- STR1-SASM10P5
- Manufacturer:
- SICK
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Safety Interlock Switch | |
| Actuator Included | Yes | |
| Safety Contacts | 2 | |
| Housing Material | Vistal | |
| Series | STR1 | |
| Switch Contact Current | 100mA | |
| Number of Auxiliary Contacts | 1 | |
| Minimum Operating Temperature | -30°C | |
| IP Rating | IP67, IP69K | |
| Contact AC Voltage | 230V ac | |
| Contact DC Voltage | 24V dc | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | CE | |
| Length | 18mm | |
| Width | 40mm | |
| Depth | 26mm | |
| Number of Head Directions | 5 | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Safety Interlock Switch | ||
Actuator Included Yes | ||
Safety Contacts 2 | ||
Housing Material Vistal | ||
Series STR1 | ||
Switch Contact Current 100mA | ||
Number of Auxiliary Contacts 1 | ||
Minimum Operating Temperature -30°C | ||
IP Rating IP67, IP69K | ||
Contact AC Voltage 230V ac | ||
Contact DC Voltage 24V dc | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Standards/Approvals CE | ||
Length 18mm | ||
Width 40mm | ||
Depth 26mm | ||
Number of Head Directions 5 | ||
- COO (Country of Origin):
- MY
Overview
The STR1 RFID safety switch has monitored semiconductor outputs (OSSDs) and can be safely connected either individually or in series. It can be used for applications where a high level of manipulation protection is required. The STR1 is available with thr
The sensor has three active sensor surfaces. The actuator comes in four different sizes. This allows the STR1 to offer maximum mounting flexibility.
At a glance
Response range of up to 14 mm
Small housing with flexible mounting options
Sensor activation possible from three sides
Four different actuators available
Universally coded, uniquely coded, and permanently coded sensors
PL e (EN ISO 13849), SIL3 (IEC 61508
Your Benefit
High level of flexibility when mounting the sensor and actuator
Reduced need for storage, as one sensor is suitable for a wide range of different applications
High level of manipulation protection due to individually coded actuator
High level of machine a
Applications
Monitoring of safety doors and removable protective devices
Applications requiring a high standard of hygiene
Applications where precise guidance of the safety door is not possible
Machines and systems on which vibrations occur
Monitoring the positions of
