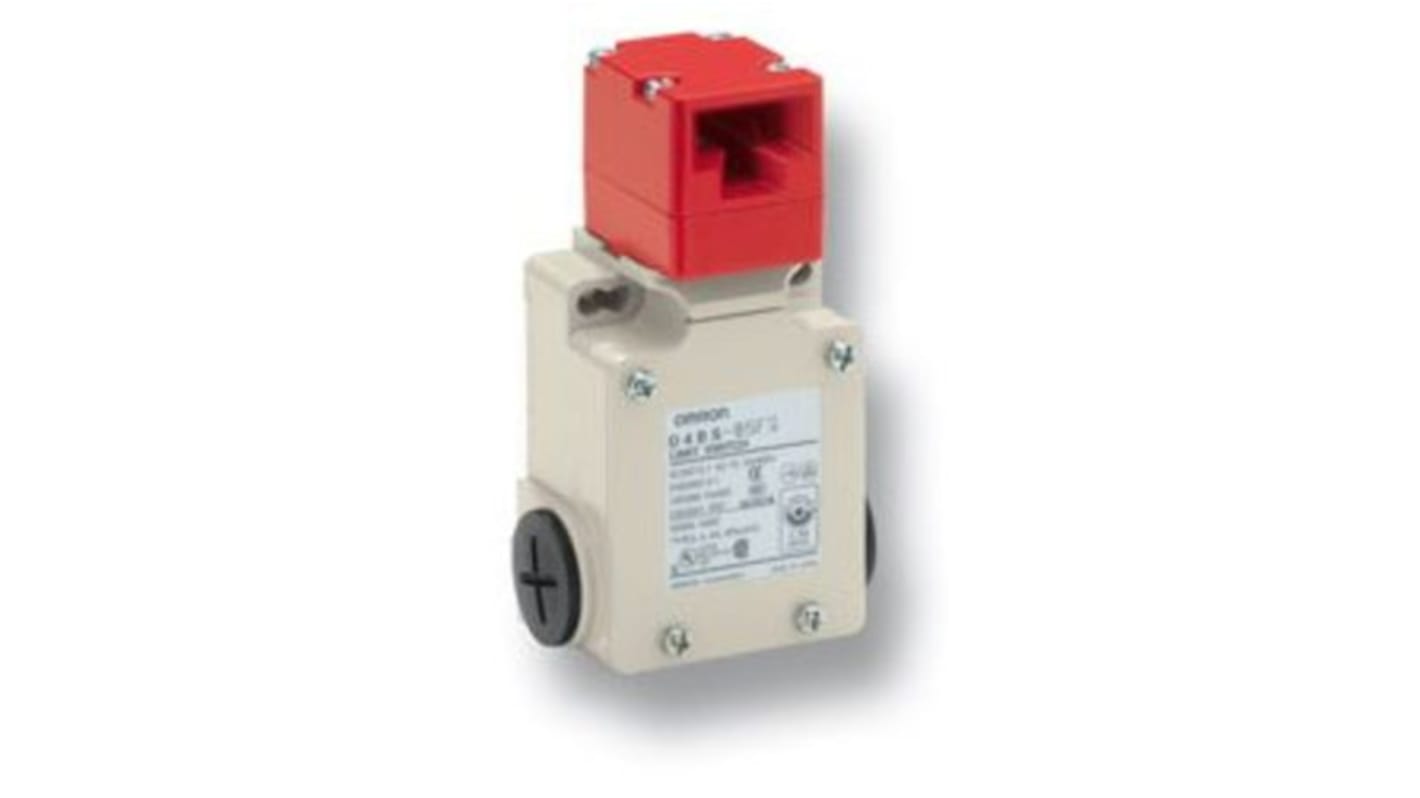

Omron D4BS Safety Interlock Switch, Plastic, Key
- RS Stock No.:
- 214-7528
- Distrelec Article No.:
- 135-88-210
- Mfr. Part No.:
- D4BS-4AFS
- Manufacturer:
- Omron
Subtotal (1 unit)*
PHP5,571.46
(exc. VAT)
PHP6,240.04
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP5,571.46 |
*price indicative
- RS Stock No.:
- 214-7528
- Distrelec Article No.:
- 135-88-210
- Mfr. Part No.:
- D4BS-4AFS
- Manufacturer:
- Omron
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Safety Interlock Switch | |
| Lock Type | Key | |
| Housing Material | Plastic | |
| Series | D4BS | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Contact AC Voltage | 400V ac | |
| Switch Contact Current | 2A | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 80°C | |
| Number of Head Directions | 4 | |
| Length | 77mm | |
| Standards/Approvals | No | |
| Width | 40mm | |
| Conduit Entry | M20 | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Safety Interlock Switch | ||
Lock Type Key | ||
Housing Material Plastic | ||
Series D4BS | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Contact AC Voltage 400V ac | ||
Switch Contact Current 2A | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 80°C | ||
Number of Head Directions 4 | ||
Length 77mm | ||
Standards/Approvals No | ||
Width 40mm | ||
Conduit Entry M20 | ||
Omron D4BS Series Safety Switch, 400V Maximum AC Voltage, 2A Maximum Current - D4BS-4AFS
This safety switch is designed for efficient operation in industrial environments, providing superior safety mechanisms. Boasting robust IP67-rated metal housing, it is engineered to operate seamlessly even in harsh conditions. The compact dimensions of 111.5mm in length and 40mm in width make it a versatile addition to various applications.
Features & Benefits
• Tongue lock mechanism enhances safety by preventing accidental machine operation
• Direct opening mechanism achieves reliable contact separation
• IP67 rating ensures excellent dust and water resistance
• Key lock feature enhances operational security
Applications
• Used for safety interlocking systems in machinery
• Suitable for controlling access to hazardous areas
• Effective in automated systems requiring secure operation
• Ideal for environments with dust and moisture exposure
How does the direct opening mechanism improve operational safety?
The direct opening mechanism ensures that the switch contacts separate reliably when the protective cover is opened, reducing the risk of accidental machine activation.
What are the environmental conditions this switch can endure?
It operates effectively within temperatures ranging from -40°C to +80°C, capable of withstanding harsh industrial environments.
What types of conduits are compatible with this device?
It supports various conduit types, including Pg 13.5, G1/2, and M20, making it adaptable for different installation requirements.
How is the metal housing beneficial for this safety switch?
The metal housing provides enhanced durability and resistance to physical impacts, ensuring longevity and reliability in demanding applications.
